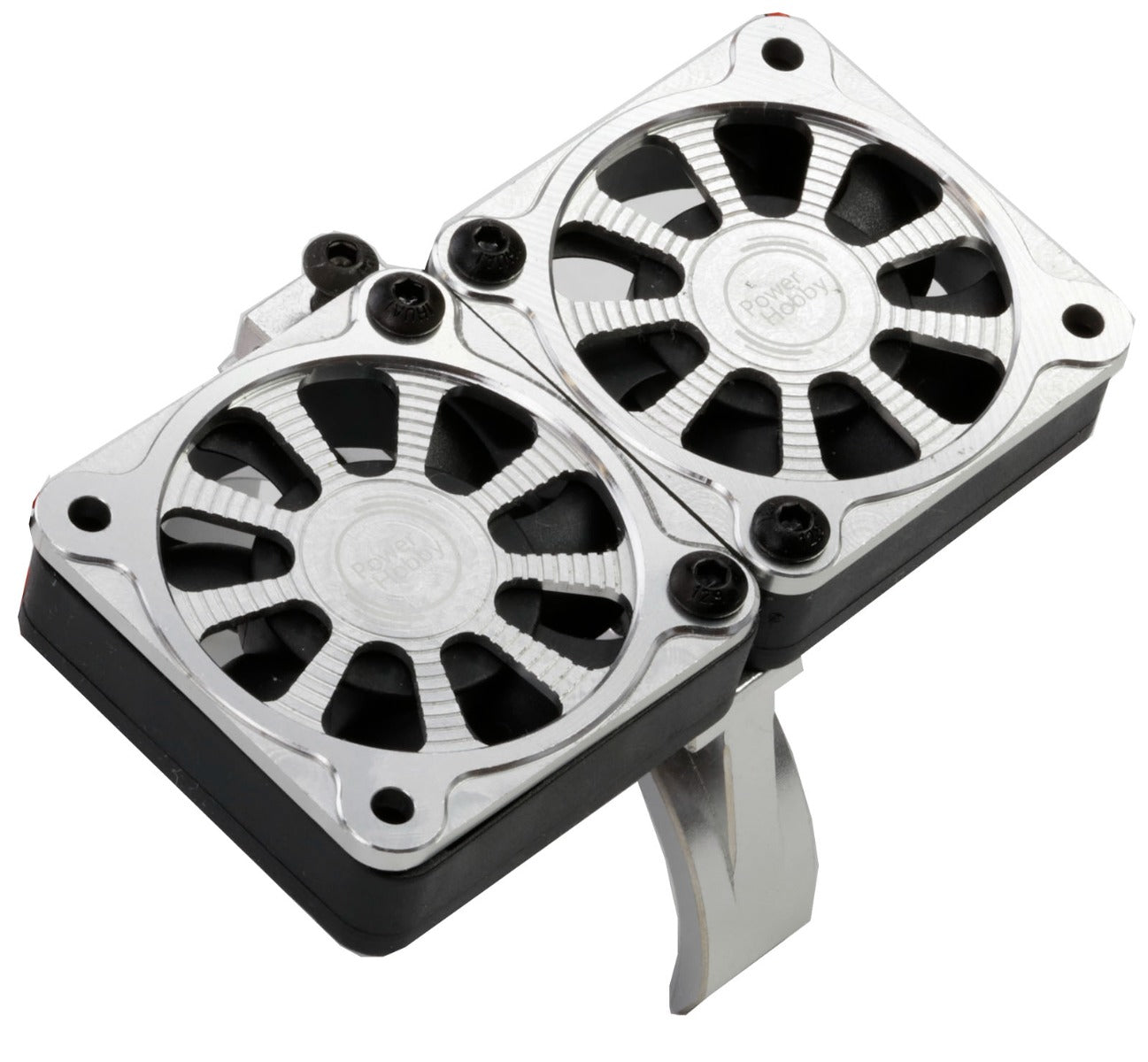

Powerhobby Aluminum Dual High Speed Cooling Fans SILVER Castle Creations 1100kV

Powerhobby 1/5 Aluminum HeatSink w/Twin Turbo High-Speed Cooling Fans

Description

Help keep your high-powered Castle Creations motor running cooler with the PowerHobby Aluminum Dual High-Speed Motor Cooling System. Designed for large motors measuring approximately 55–58mm in diameter, this cooling system combines a durable aluminum motor mount with two powerful 40mm high-speed fans.

The dual-fan design directs increased airflow across the motor can to help remove heat during extended runs, hard acceleration, speed runs, aggressive bashing, and other demanding RC applications. Reducing excessive motor heat may help maintain more consistent performance and reduce the possibility of heat-related power loss or thermal shutdown.

Both cooling fans are protected by silver aluminum fan covers, helping shield the fan blades from debris and accidental contact. The included JST Y-splitter connects both fans to a single receiver-style plug, allowing the system to be powered through a compatible receiver channel, external BEC, or regulated power supply.

The silver aluminum construction provides a clean, professional appearance while adding a practical cooling upgrade to compatible 1/5-scale and large-format RC vehicles.

Features

• Dual high-speed motor cooling-fan system
• Designed for Castle Creations 1100kV and other compatible large-scale motors
• Fits cylindrical motors measuring approximately 55–58mm in diameter
• Two 40mm fans provide increased airflow across the motor can
• Approximately 16,000 RPM fan speed when operated at 8.4V
• Helps reduce motor-temperature buildup during demanding operation
• Suitable for high-powered brushless motor systems
• Durable aluminum motor mount
• Silver aluminum fan covers help protect the fan blades
• JST Y-splitter connects both fans to a single power connection
• Receiver-style plug connects to a compatible receiver channel or BEC
• Approximately 15 inches of total wire length for easier installation
• 6V to 8.4V operating-voltage range
• Ideal for racing, speed runs, bashing, and large-scale custom builds
• Silver finish adds a clean upgraded appearance

Specifications

• Product Type: Dual motor cooling-fan system
• Recommended Scale: 1/5 scale and other large-scale applications
• Compatible Motor Diameter: Approximately 55–58mm
• Number of Fans: 2
• Fan Dimensions: 40 × 40 × 10mm each
• Fan Speed: Approximately 16,000 RPM at 8.4V
• Operating Voltage: 6–8.4V
• Total Wire Length: Approximately 15 inches
• Connector: JST Y-splitter with receiver-style plug
• Motor-Mount Material: Aluminum
• Fan-Cover Material: Aluminum
• Color: Silver
• Part Number: PH1291Silver-D

Includes

• 1 Silver aluminum motor mount
• 2 High-speed 40 × 40 × 10mm cooling fans
• 2 Silver aluminum fan covers
• 1 JST Y-splitter with receiver-style connector
• Mounting hardware shown with the cooling system

Fitment

Designed for the Castle Creations 1100kV motor and other cylindrical RC motors measuring approximately 55–58mm in outside diameter.

Common applications may include:

• Castle Creations 1100kV motor installations
• 1/5-scale electric RC vehicles
• Large-scale monster trucks
• Large-scale buggies
• Large-scale on-road vehicles
• High-powered brushless conversions
• Speed-run vehicles
• Custom large-scale RC builds

Fitment is determined primarily by the outside diameter of the motor and the available clearance inside the chassis. Before ordering, measure the motor can and confirm that your vehicle has enough room for the aluminum mount, dual 40mm fans, fan covers, wiring, and mounting hardware.

Installation Notes

Position the aluminum mount around a clean and unobstructed section of the motor can. Tighten the mounting hardware evenly and confirm that the assembly cannot rotate, slide, or contact nearby drivetrain components.

Route all wiring away from the motor shaft, pinion gear, spur gear, driveshafts, suspension components, and other moving parts. Secure loose wiring with cable ties or clips before operating the vehicle.

Connect the receiver-style plug to a compatible open receiver channel, external BEC, or regulated power supply providing between 6V and 8.4V. Verify connector polarity and available current before applying power. Do not connect the cooling fans directly to a power source exceeding 8.4V.
