Powerhobby 30mm Ultra High Speed Motor / ESC Cooling Fan
Description

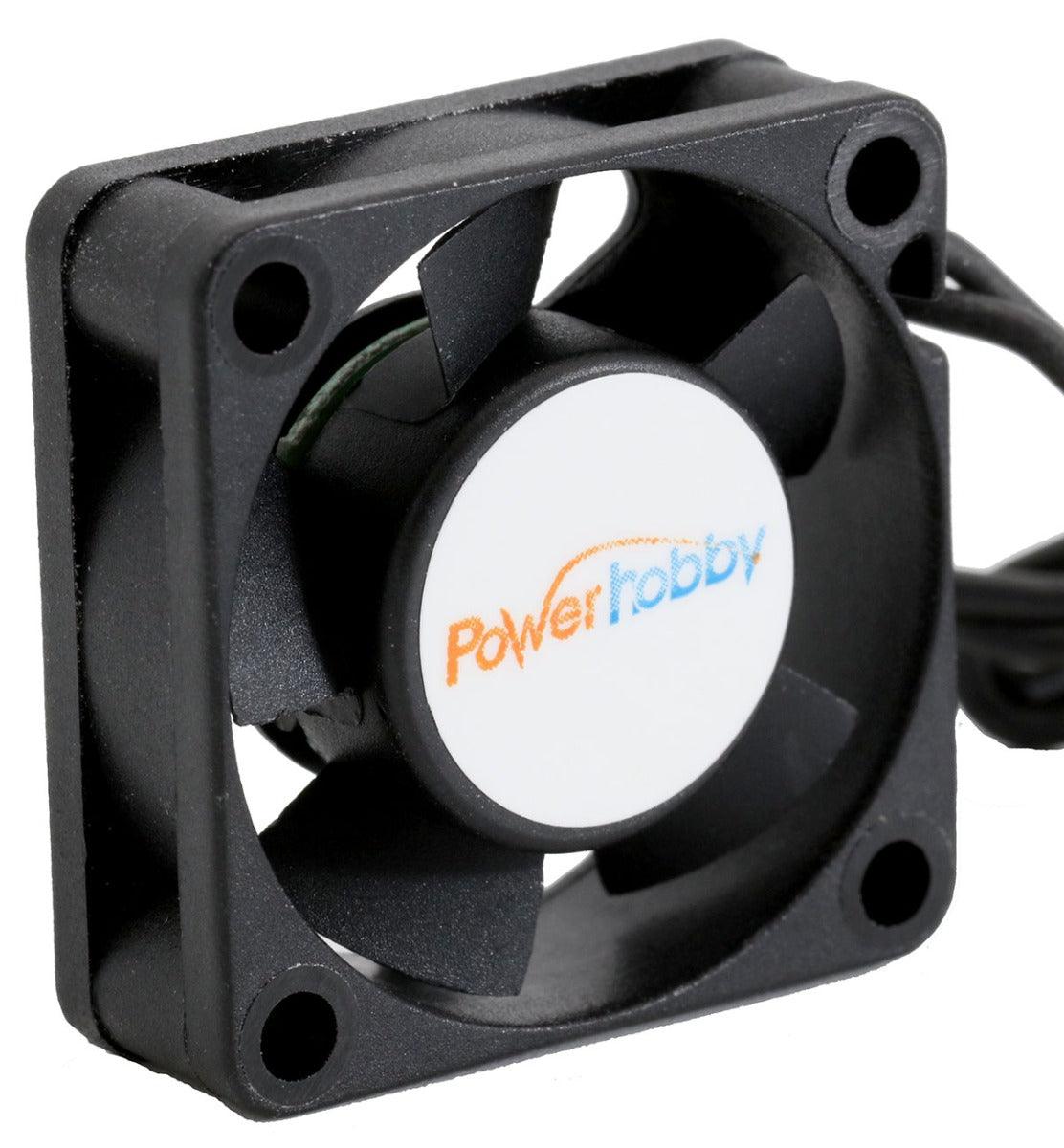

The PowerHobby 30mm Ultra High-Speed Cooling Fan delivers powerful airflow in a compact size for compatible RC motor and ESC cooling applications.
Featuring a dual-ball-bearing design, this fan reaches approximately 25,000 RPM when powered at 8.4V. Its compact 30 × 30 × 10mm dimensions make it suitable for installations where mounting space is limited.
The fan operates from 5V to 8.4V, allowing it to run from a compatible 6V receiver output or a fully charged 2S battery power source.
Features
- Ultra-high-speed 30mm RC cooling fan
- Suitable for motor and ESC cooling applications
- Dual-ball-bearing construction
- Approximately 25,000 RPM at 8.4V
- Compact 30 × 30 × 10mm dimensions
- Operates from 5V to 8.4V
- Can run from a compatible 6V receiver output
- Compatible with a properly connected 2S battery power source

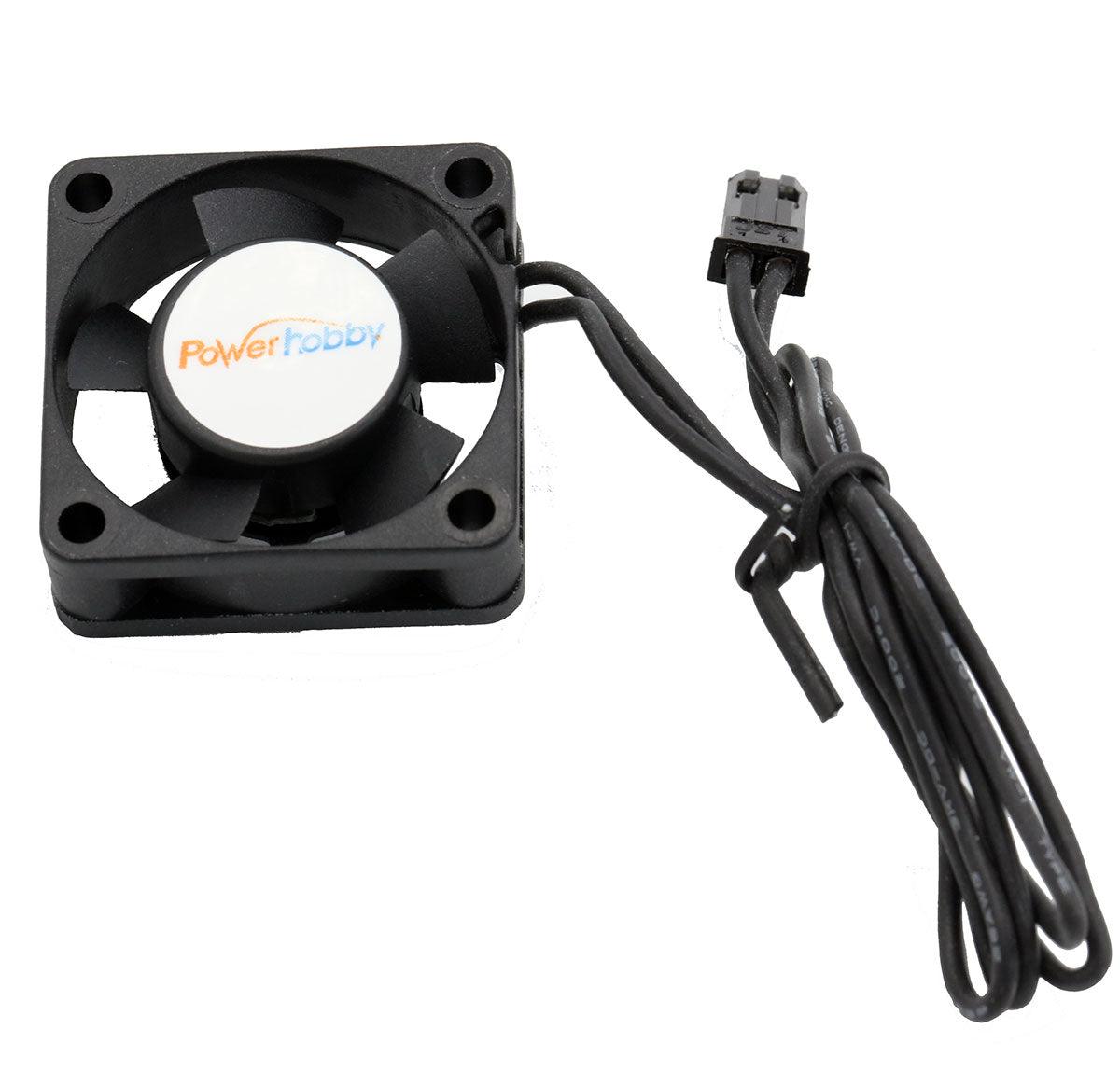

- JST power plug
- Long 7-inch connecting wire
- Suitable for compatible 1/12 through 1/5-scale RC applications
- Mounting hardware included
Specifications
- SKU: PHF30
- Barcode: 655479152844
- Product Type: Motor and ESC Cooling Fan
- Fan Dimensions: 30 × 30 × 10mm
- Fan Speed: Approximately 25,000 RPM at 8.4V
- Operating Voltage: 5V–8.4V
- Current Draw: Approximately 0.45A
- Bearing Type: Dual Ball Bearing
- Wire Length: Approximately 7 inches (177mm)
- Connector: JST Plug

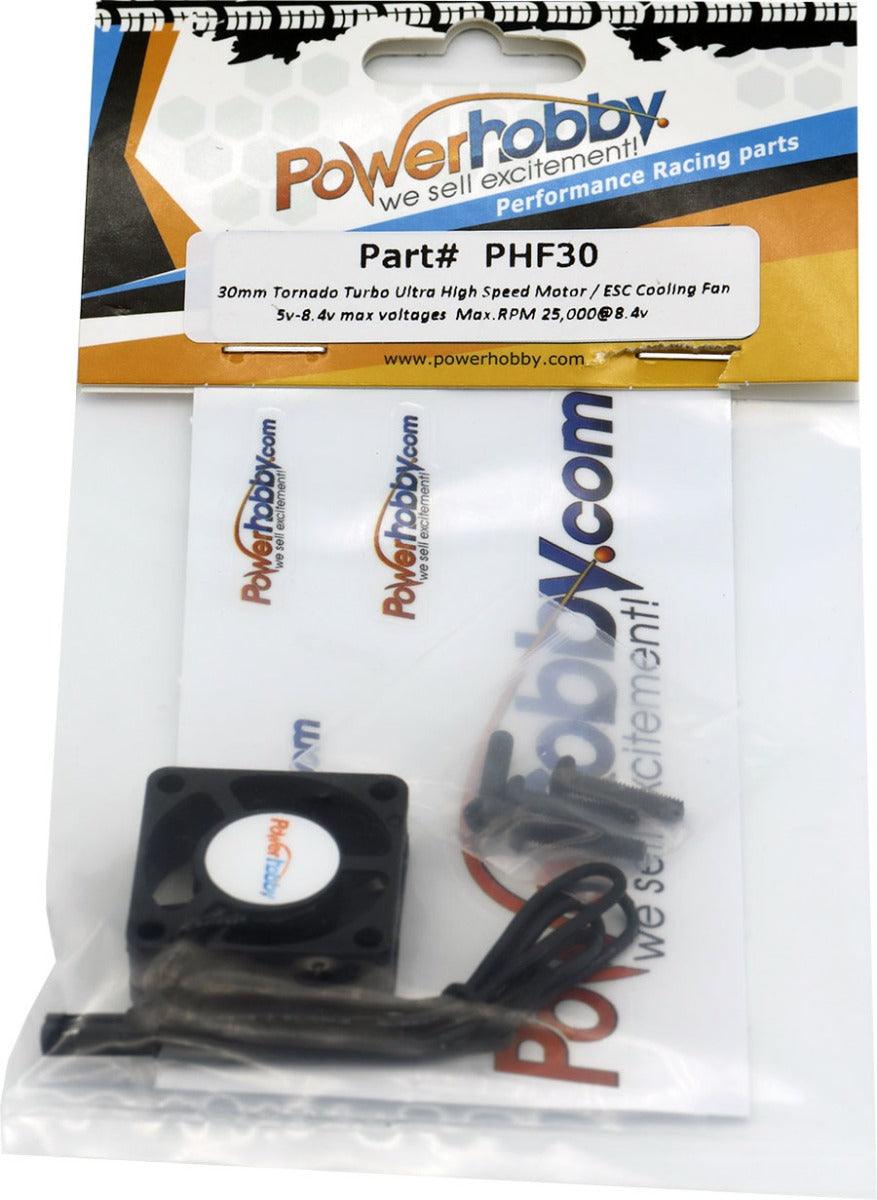

Includes
- 1 PowerHobby 30mm Ultra High-Speed Cooling Fan
- Mounting Hardware
Fits
Universal RC motor and ESC cooling applications with sufficient mounting space, including compatible:
- 1/12-scale RC vehicles
- 1/10-scale RC vehicles
- 1/8-scale RC vehicles
- 1/7-scale RC vehicles
- 1/6-scale RC vehicles
- 1/5-scale RC vehicles
- On-road cars
- Off-road buggies
- Short-course trucks
- Monster trucks
- Truggies
- Speed-run vehicles
- Custom RC builds
Verify the available mounting space, mounting-hole alignment, connector compatibility, power-source voltage, current capacity, and wire routing before purchasing.
Installation Note
Mount the fan securely to a compatible motor mount, ESC heatsink, or cooling-fan bracket. Make sure the fan and wiring cannot contact the motor shaft, pinion gear, spur gear, driveshaft, or other moving components.
Confirm connector polarity before applying power. Use only a compatible power source between 5V and 8.4V, and do not exceed the listed 8.4V maximum operating voltage.
