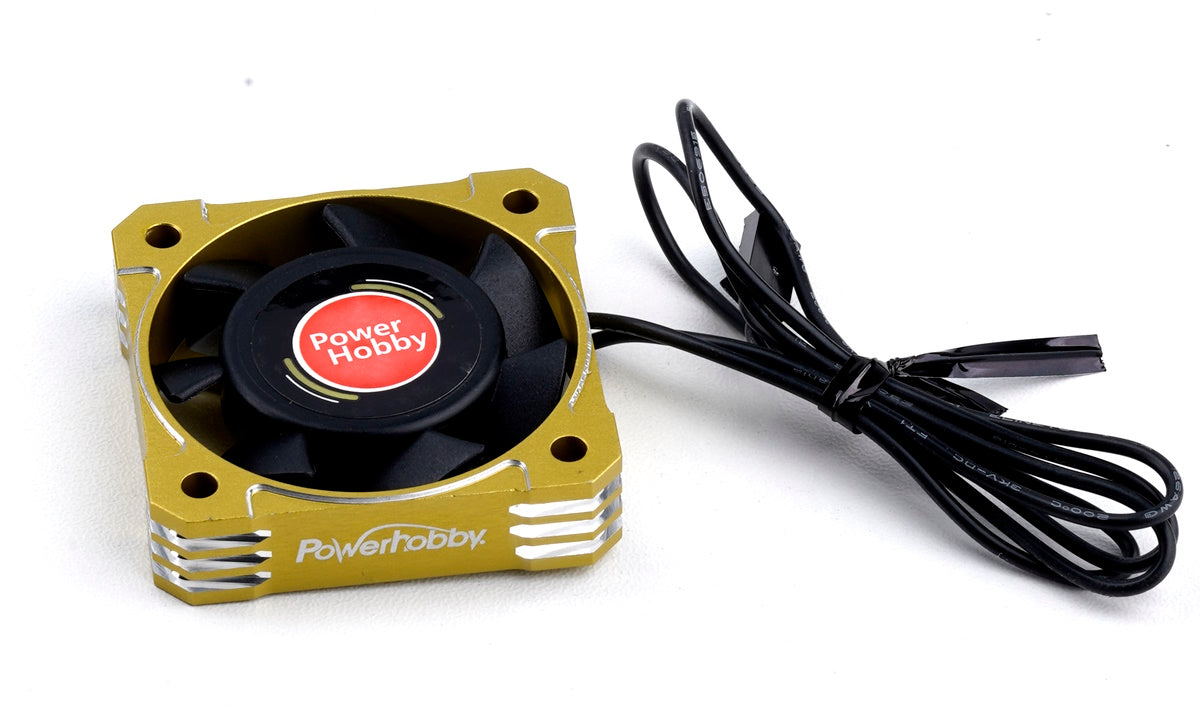

Powerhobby 40mm Aluminum Tornado High Speed HV Cooling Fan
Description
The PowerHobby Tornado High-Speed Aluminum Cooling Fan delivers strong airflow for compatible RC motors, electronic speed controls, and custom cooling applications.
The full T6 aluminum case helps direct airflow into the fan while also providing additional surface area for heat dissipation. The aluminum housing protects the fan blades and provides a durable upgrade over standard plastic cooling fans.
Operating at approximately 16,000 RPM at 8.5V, this compact 40mm fan is suitable for compatible 1/12-, 1/10-, 1/8-, and 1/5-scale RC applications.
Features
- High-speed 40mm RC cooling fan
- Full T6 aluminum heatsink-style case
- Aluminum housing helps direct airflow
- Aluminum casing helps protect the fan blades
- Approximately 16,000 RPM at 8.5V
- Wide 5–8.5V operating range
- Compatible with 2S HV LiPo systems
- 8.75V maximum input
- Compact 40 × 40 × 10mm design
- Lightweight 18g construction
- 180mm power wire
- Suitable for motor, ESC, and custom cooling applications
- Yellow finish
Specifications
- Part Number / SKU: PHB6228
- Barcode: 659821316281
- Product Type: High-Speed RC Cooling Fan
- Fan Dimensions: 40 × 40 × 10mm
- Fan Speed: Approximately 16,000 RPM at 8.5V
- Operating Voltage: 5–8.5V
- Maximum Input Voltage: 8.75V
- Current Draw: Approximately 0.65A
- Wire Length: 180mm
- Weight: Approximately 18g
- Housing Material: T6 Aluminum
- Color: Yellow
Includes
- 1 PowerHobby 40 × 40 × 10mm Tornado High-Speed Aluminum Cooling Fan
Fits
Universal RC cooling applications that accommodate a 40 × 40 × 10mm fan and compatible power source.
Suitable applications may include:
- 1/12-scale RC vehicles
- 1/10-scale RC vehicles
- 1/8-scale RC vehicles
- 1/5-scale RC vehicles
- Electronic speed controls
- Brushless motors
- Motor cooling mounts
- ESC cooling mounts
- Custom RC cooling installations
Verify the fan dimensions, mounting-hole spacing, available clearance, connector type, connector polarity, operating voltage, and available current before purchasing.
Installation Note
Mount the fan securely with the airflow directed toward the motor, ESC heatsink, or electronic component being cooled.
Route the 180mm wire away from the motor shaft, gears, driveshafts, suspension components, and other moving parts.
Connect the fan to a compatible regulated power source supplying between 5V and 8.5V. Do not exceed the listed 8.75V maximum input.
