Description
Powerhobby 1/8 Aluminum HeatSink (Motor Mount) w/Twin Turbo High-Speed Cooling Fans
Description

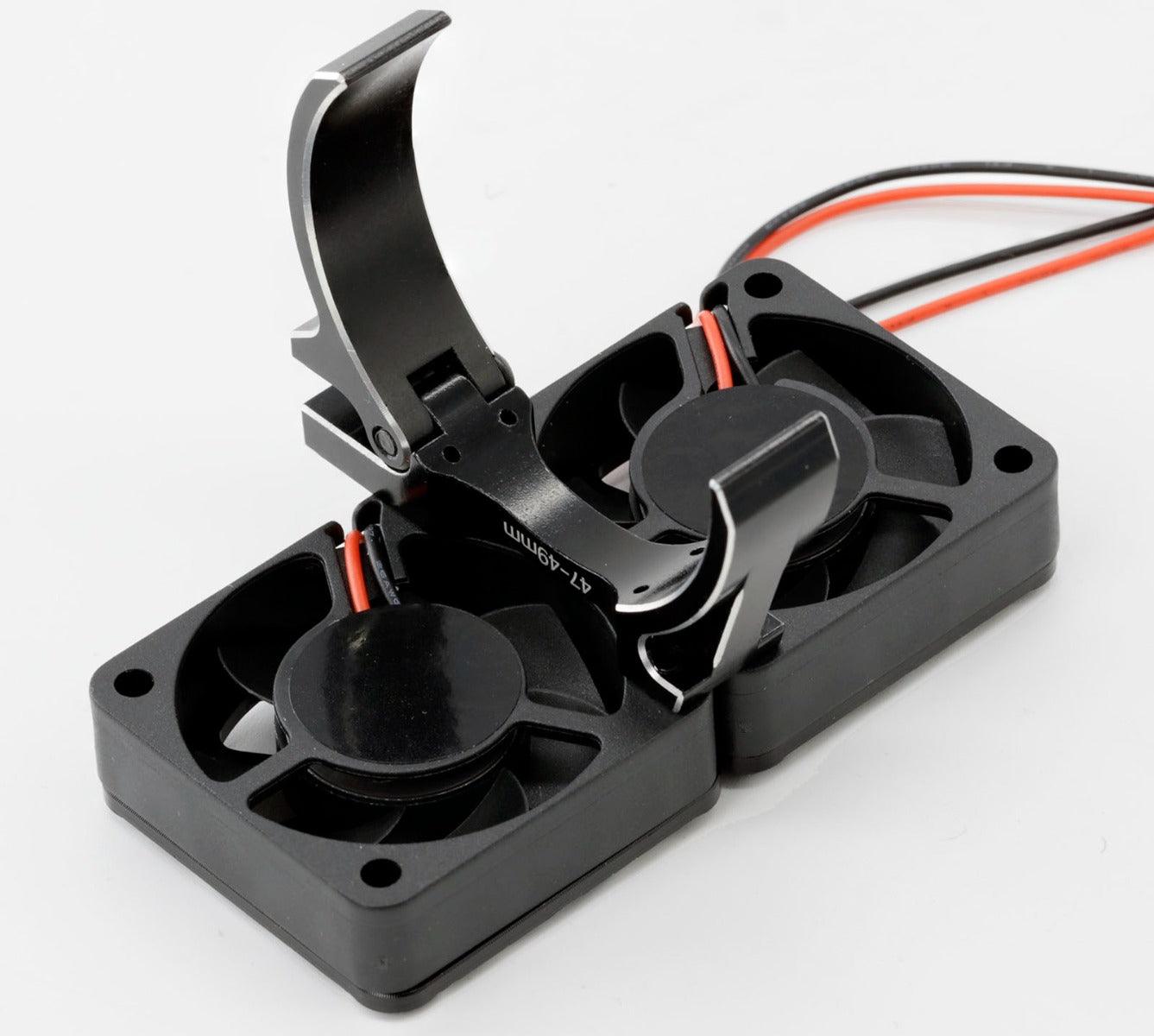

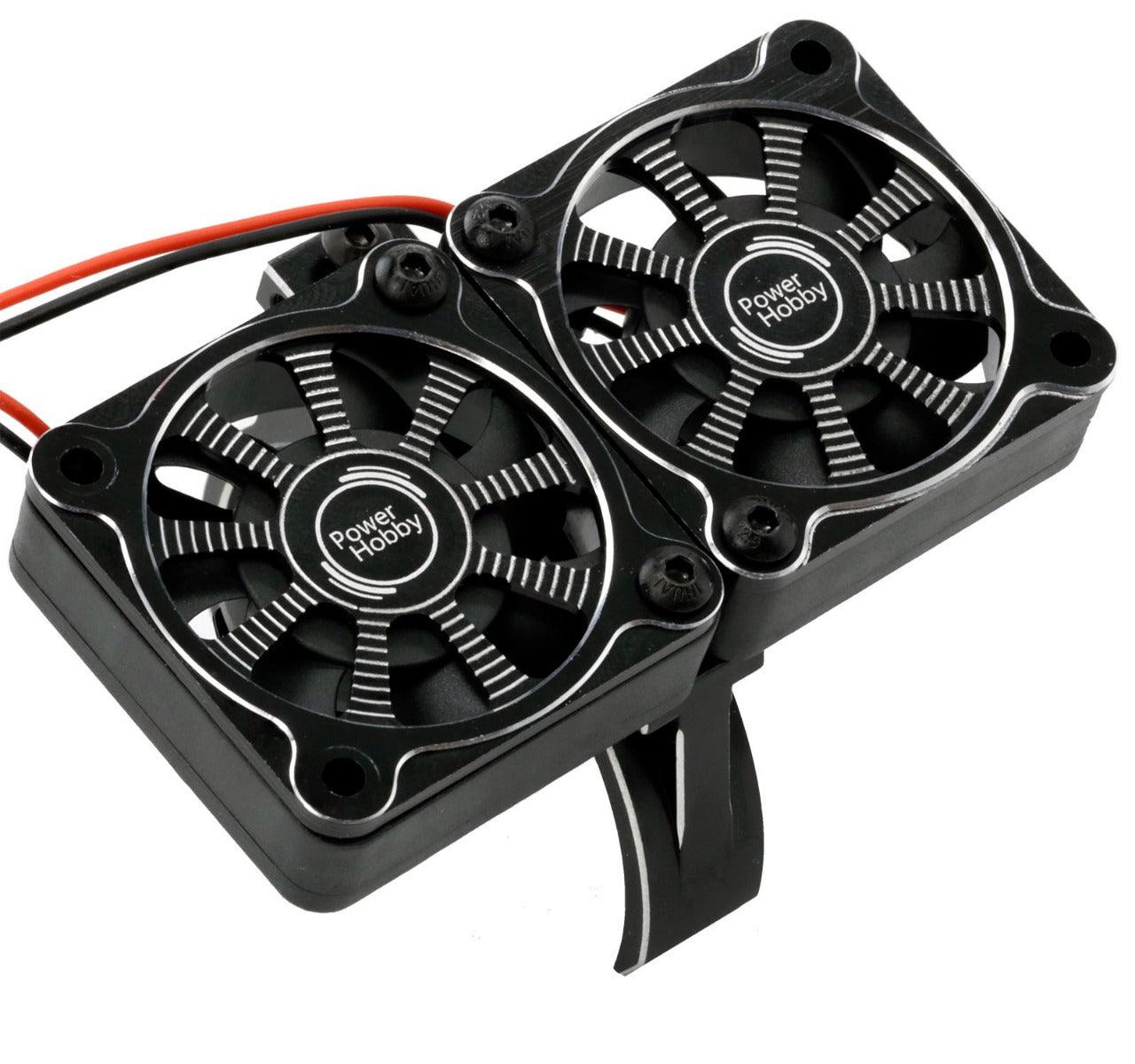

The Powerhobby Aluminum Motor Heatsink with Dual 40mm Cooling Fans is designed to help control motor temperatures in high-powered RC vehicles.
The aluminum motor clamp fits compatible motors measuring 47–49mm in diameter. Two high-speed 40mm fans provide increased airflow across the motor, while the aluminum fan covers help protect the fan blades from debris and accidental contact.
Operating from 6V to 8.4V, each fan can reach up to 16,000 RPM at 8.4V. The included JST Y-splitter with receiver-style connector allows both fans to be powered from an available receiver channel or compatible external BEC.
Features
- Designed for compatible 47–49mm diameter motors
- Dual high-speed 40mm cooling fans
- Helps reduce motor temperatures
- Aluminum motor heatsink and mounting clamp
- Aluminum fan-protection covers
- Wide 6V–8.4V operating range
- Fans produce up to 16,000 RPM at 8.4V
- Includes a JST Y-splitter
- Receiver-style power connector
- Suitable for many 1/8, 1/7, and 1/6-scale RC applications
- Black finish

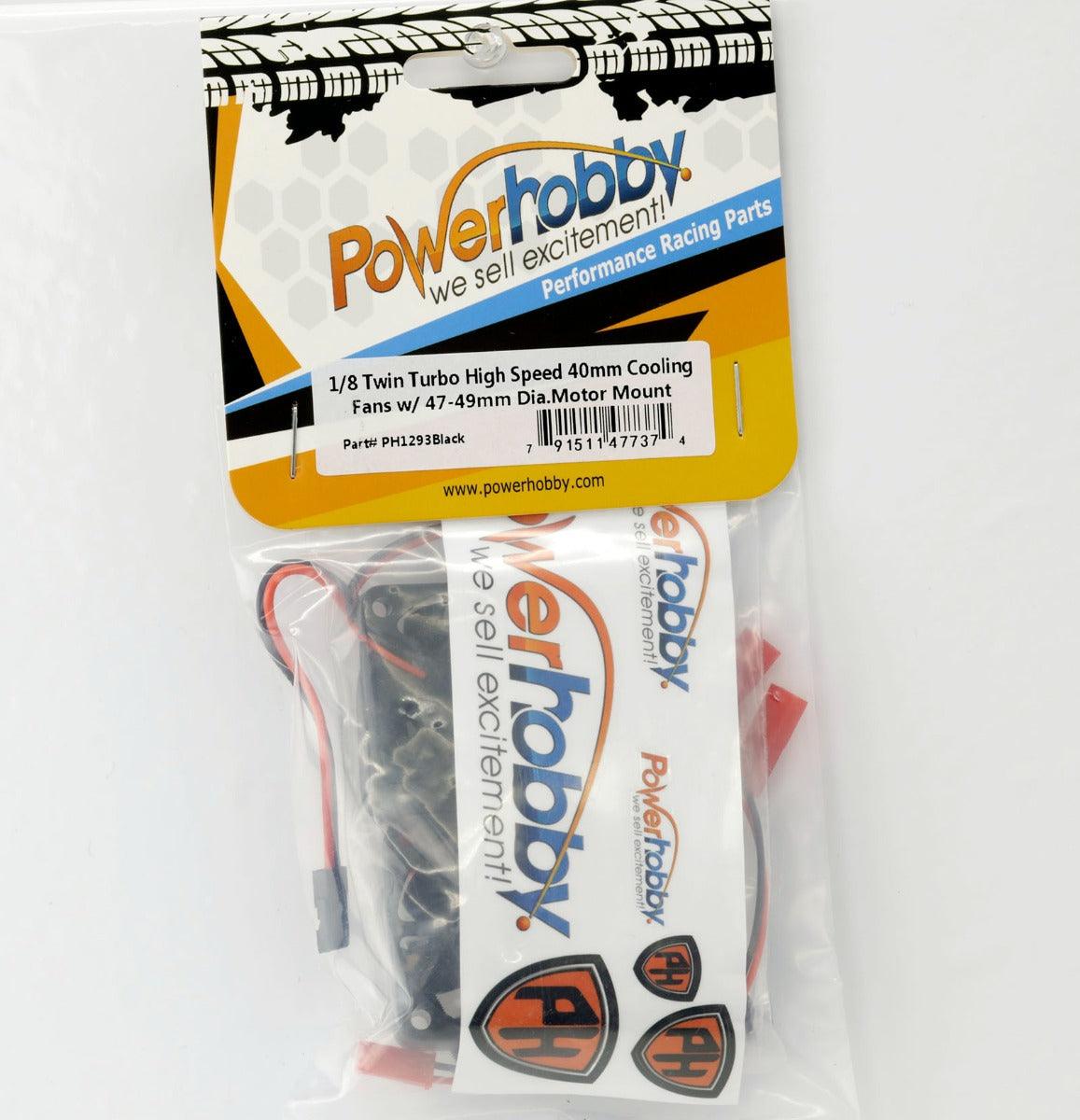

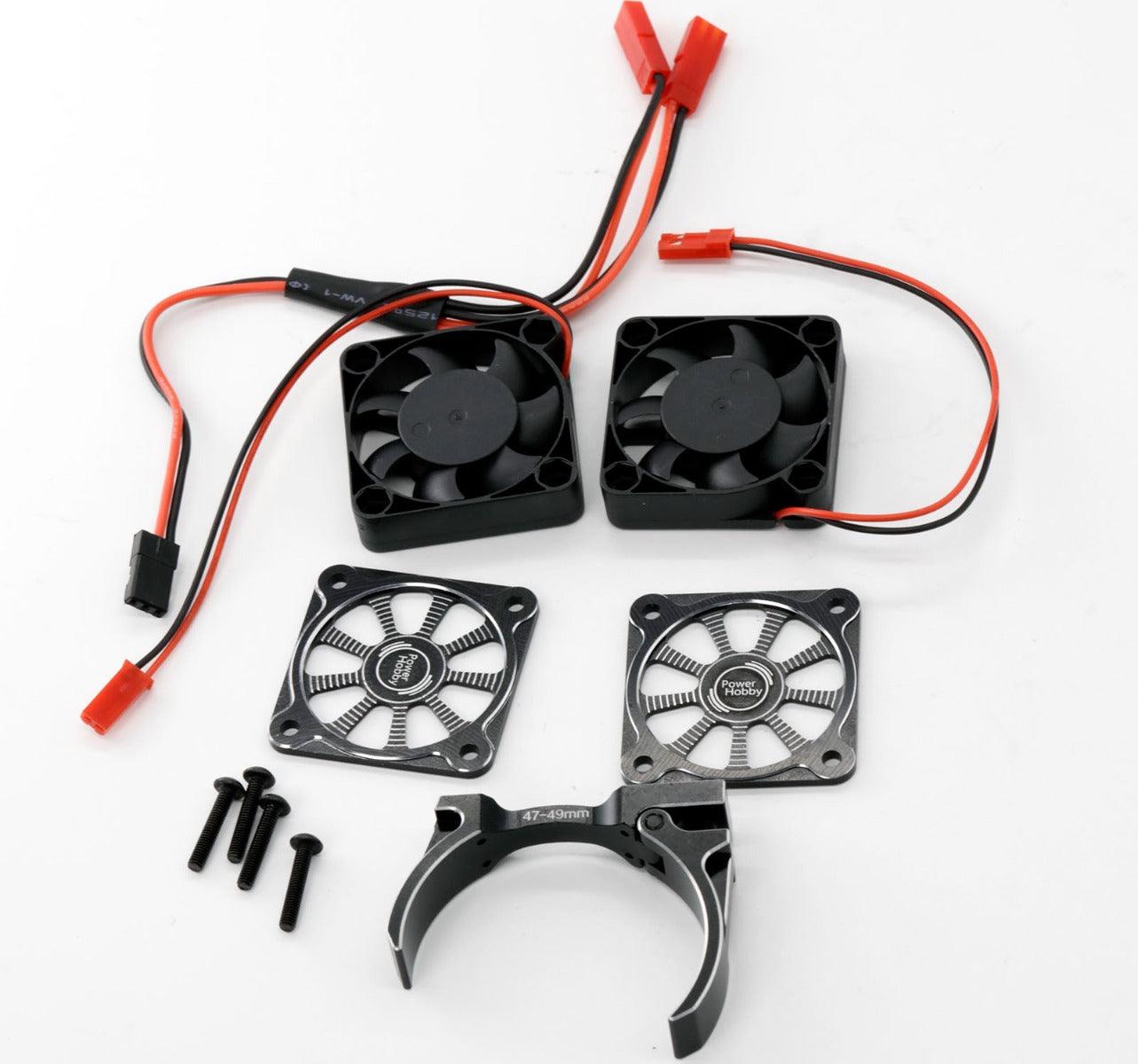

Includes
- 1 Aluminum Motor Heatsink and Clamp
- 2 High-Speed 40mm Cooling Fans
- 2 Aluminum Fan Covers
- 1 JST Y-Splitter with Receiver-Style Connector
- Installation Hardware
Specifications
- SKU: PH1293Black
- Barcode: 791511477374
- Product Type: Motor Heatsink and Dual-Fan Cooling System
- Motor-Diameter Compatibility: 47–49mm
- Fan Quantity: 2
- Fan Dimensions: 40 × 40 × 10mm
- Maximum Fan Speed: 16,000 RPM at 8.4V
- Input Voltage: 6V–8.4V
- Heatsink Material: Aluminum
- Fan-Cover Material: Aluminum
- Total Wire Length: 15 in
- Connector: Receiver-Style Connector with JST Y-Splitter
- Color: Black
Fits
Universal RC applications using a compatible 47–49mm diameter motor, including many:
- 1/8-scale buggies and truggies
- 1/8-scale monster trucks
- 1/7-scale on-road and off-road vehicles
- 1/6-scale RC vehicles
- High-power custom RC builds
Verify the motor diameter, available chassis clearance, fan voltage, connector compatibility, and mounting position before purchasing.
Installation Note

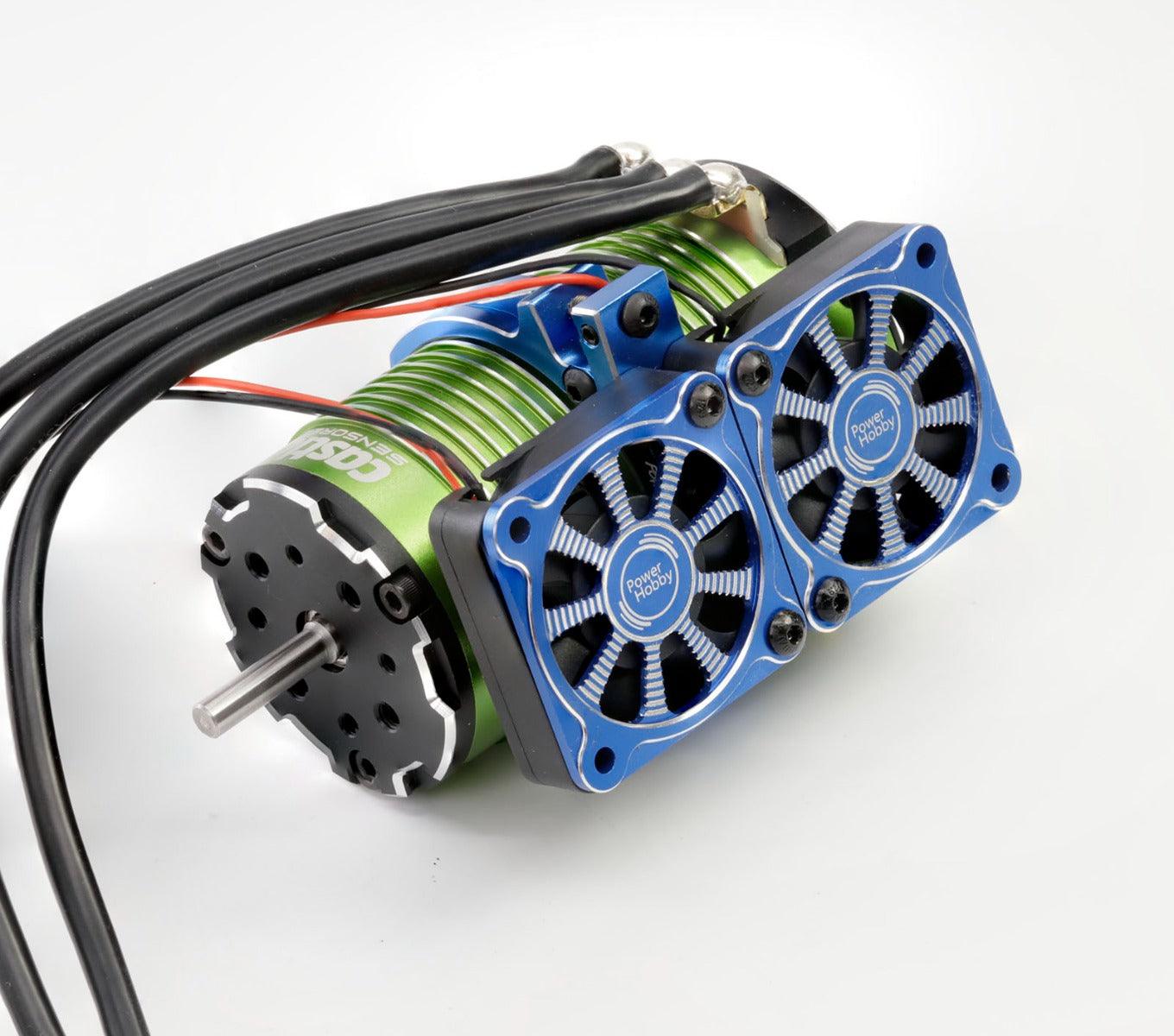

Mount the heatsink securely around a clean section of the motor can. Make sure the fan covers and wiring do not contact the center driveshaft, motor shaft, pinion gear, spur gear, or other moving components.
Connect the fans only to a receiver port or external BEC capable of supplying between 6V and 8.4V with adequate current. Do not connect the fans directly to a battery exceeding the rated voltage.
Route and secure all wiring away from rotating drivetrain parts, sharp edges, and excessive heat.
