Tamiya Volvo FH16 750 8x4 Tow Truck Silver 1/14 RC Kit [47528]

Tamiya Volvo FH16 750 8x4 Tow Truck Silver 1/14 RC Kit [47528]

Description:

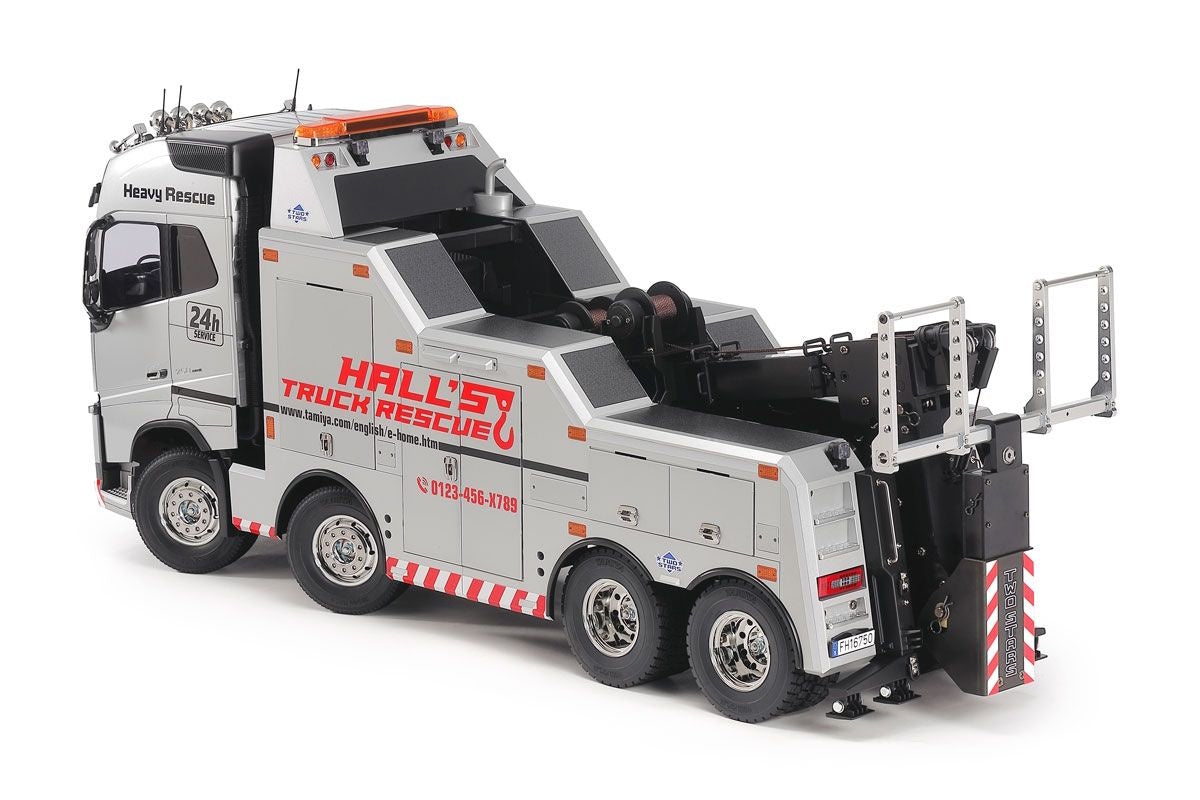

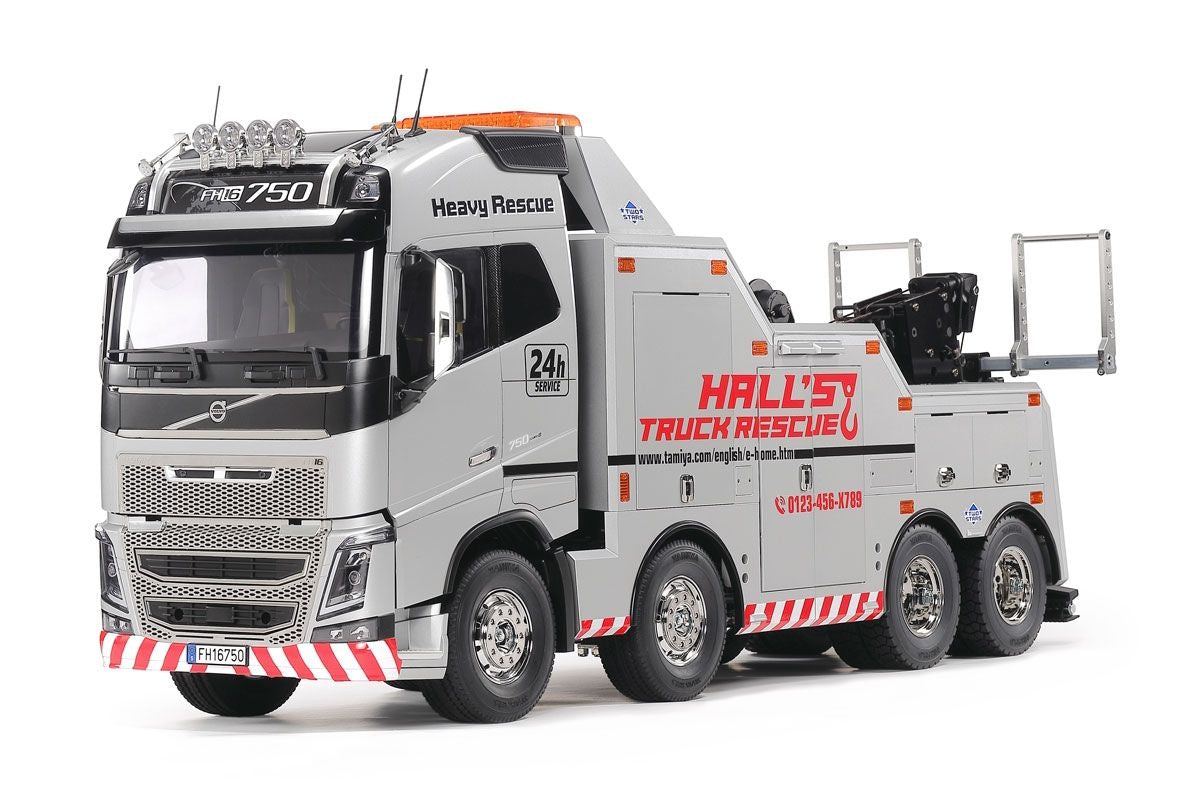

Build an impressive scale recovery vehicle with the limited-edition Tamiya Volvo FH16 Globetrotter 750 8x4 Tow Truck Silver Edition. This highly detailed 1/14 scale RC assembly kit recreates Volvo’s powerful 750-horsepower FH16 tow truck with a massive four-axle chassis, realistic recovery equipment and a premium pre-painted finish.

The cab and tow-truck body components are factory-painted silver and finished with a glossy urethane topcoat. Detailed features include opening cab doors, a photo-etched stainless-steel front grille, plated roof accessories and a detailed interior.

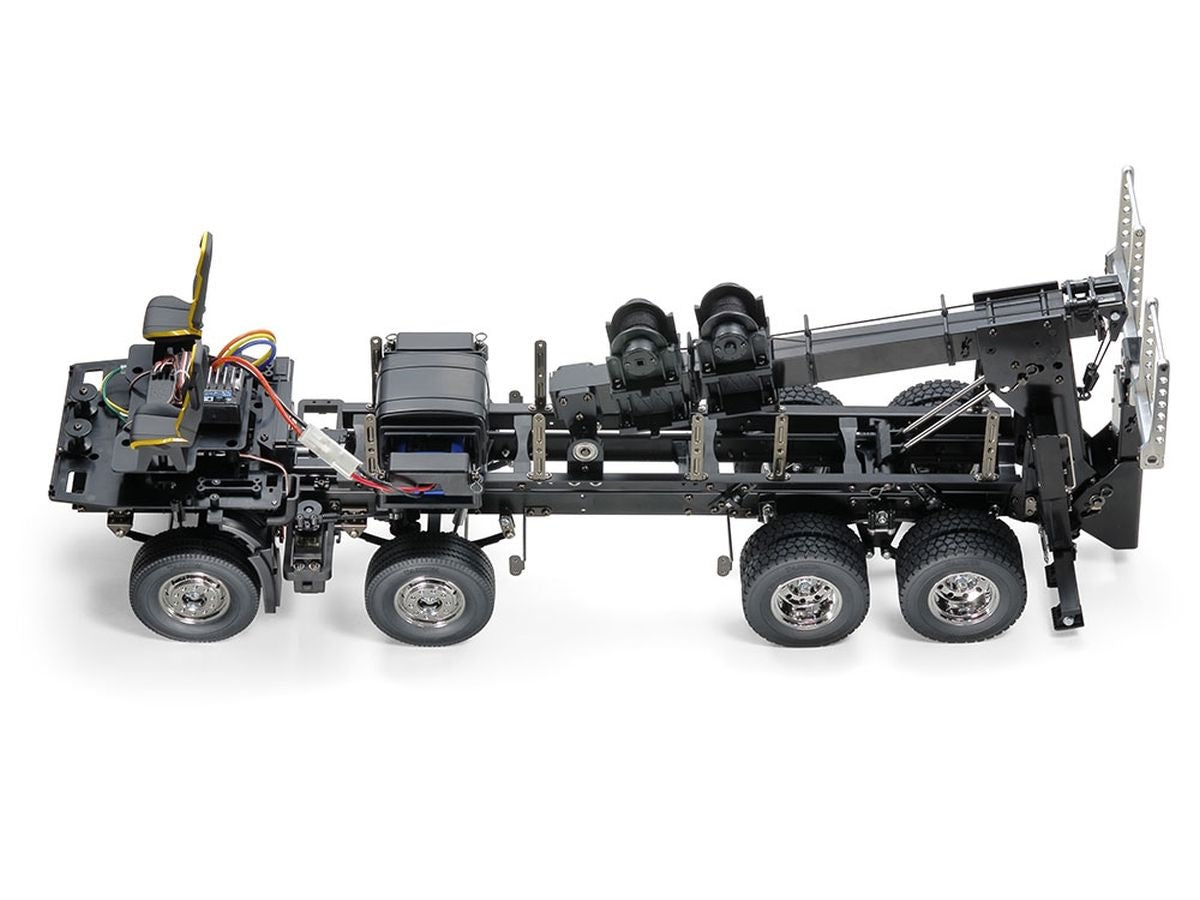

The front-mounted TR Mighty-Tuned 35T motor transfers power through a transmitter-operated three-speed transmission to the two driven rear axles. Both front axles steer for realistic handling, while the aluminum ladder-frame chassis and metal leaf-spring suspension provide a durable and authentic construction.

The manually operated towing equipment includes an adjustable winch boom, dual winches, extendable underlift, adjustable towing forks and extendable outriggers. Optional Tamiya electronic equipment can add remotely controlled recovery functions, lighting, sound and vibration.

This is an unassembled RC vehicle kit. Radio equipment, servos, speed control, battery and charger are required separately.

Features:

• Limited-edition 1/14 scale RC assembly kit
• Officially licensed Volvo FH16 Globetrotter 750 tow truck
• Detailed 8x4 four-axle configuration
• Cab and body components factory-painted silver
• Glossy urethane topcoat
• Opening cab doors
• Stainless-steel photo-etched front grille
• Metal-plated visor and roof-light components
• Detailed cab interior
• Aluminum and reinforced plastic ladder-frame chassis
• Both front axles feature functional steering
• Rear dual-axle drive system
• Front and rear metal leaf-spring suspension
• Aluminum dummy shock dampers
• Rear trunnion-style suspension
• Dual rear tires with realistic tread
• Three-speed transmission controlled through the transmitter
• TR Mighty-Tuned 35T brushed motor included
• Adjustable winch boom
• Boom extends up to approximately 586mm
• Three selectable boom-angle positions
• Dual winches with approximately five meters of included string
• Extendable and retractable underlift
• Adjustable towing forks
• Articulating underlift helps with cornering
• Manually extendable outriggers
• Clear orange roof light-bar housing
• Can tow compatible Tamiya 1/14 scale tractor trucks
• Compatible with optional Tamiya lighting, sound and actuator systems

Specifications:

• Scale: 1/14
• Vehicle: Volvo FH16 Globetrotter 750 8x4 Tow Truck
• Edition: Silver Edition
• Length: 732mm
• Width: 199mm
• Height: 309mm
• Approximate Weight: 5.9kg with RC equipment and battery installed
• Wheelbase: 155mm + 245mm + 103mm
• Front Track Width: 155mm
• Rear Track Width: 138mm
• Chassis: Aluminum and reinforced plastic ladder frame
• Drive System: Rear Dual-Axle Drive
• Transmission: Three-Speed
• First-Gear Ratio: 32.49:1
• Second-Gear Ratio: 17.76:1
• Third-Gear Ratio: 10.66:1
• Differentials: Three-Bevel Gear Differentials
• Motor: TR Mighty-Tuned 35T Brushed Motor
• Front Tire Size: 30mm Wide x 85mm Diameter
• Rear Tire Size: 22mm Wide x 84mm Diameter
• Suspension: Metal Leaf Spring
• Assembly Level: Unassembled Kit

Includes:

• Tamiya Volvo FH16 Globetrotter 750 8x4 Tow Truck kit
• Silver pre-painted cab and recovery body components
• Aluminum ladder-frame chassis components
• TR Mighty-Tuned 35T brushed motor
• Three-speed transmission
• Adjustable winch boom components
• Dual winches and winch string
• Extendable underlift and adjustable towing forks
• Outrigger components
• Photo-etched front grille
• Wheels and tires
• Decals and finishing details
• Assembly hardware
• Instruction manual

Required to Complete:

• Compatible four-channel radio system with slide-trim levers and self-neutralizing sticks
• Receiver
• Two standard-size servos
• Compatible electronic speed control or Tamiya Multi-Function Control Unit
• Battery pack
• Compatible battery charger
• AA batteries for the transmitter
• Paint for smaller details such as the window frames
• Assembly tools

Optional Equipment:

• Tamiya 56523 MFC-03 Multi-Function Control Unit
• Tamiya 56553 Electric Actuator Set for 1/14 Tow Truck
• Compatible Tamiya LED lighting components

Additional long-cable 3mm LEDs are required to illuminate the taillights when using the MFC system.

Fits:

This is a complete Tamiya 1/14 scale RC tow-truck assembly kit. It can tow compatible Tamiya 1/14 scale RC tractor trucks when properly assembled and equipped.

Part Number: 47528

Manufacturer Number: TAM47528

EAN: 4950344475285
