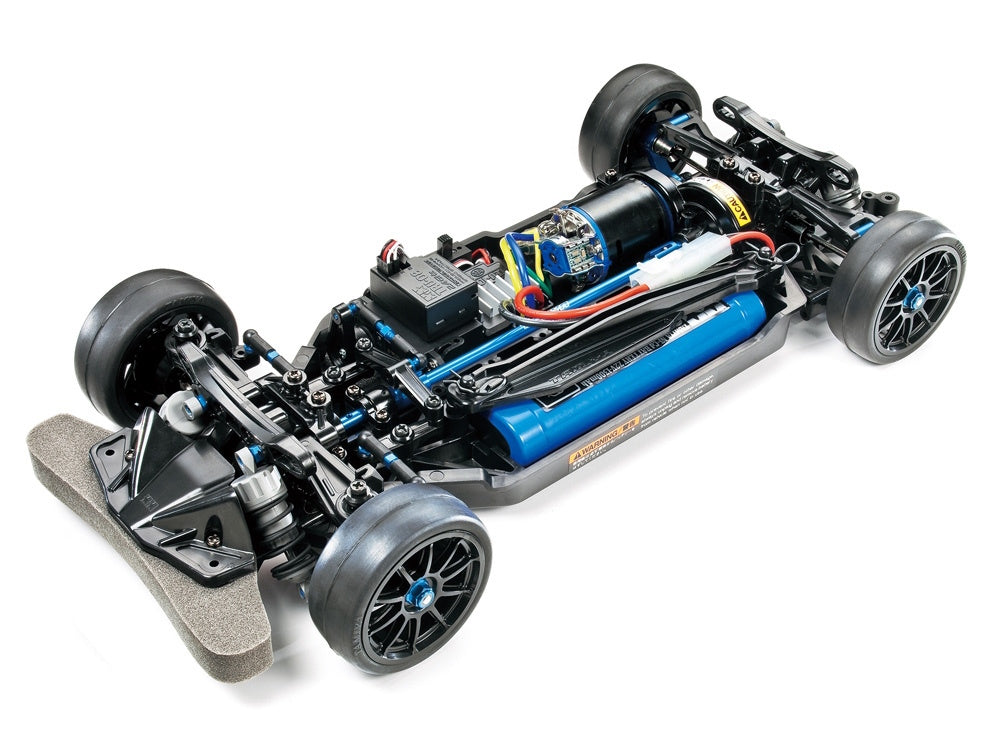

Tamiya TT-02R 1/10 4WD Touring Car RC Chassis Kit 47326

Tamiya TT-02R 1/10 4WD Touring Car RC Chassis Kit [47326]

Description:

The Tamiya TT-02R is an upgraded 1/10 scale four-wheel-drive touring car chassis kit designed for builders who want enhanced handling, durability and tuning capability compared with the standard TT-02 chassis.

This performance-oriented kit includes aluminum rear uprights with 3-degree toe-in for improved stability through corners. An aluminum motor mount increases drivetrain rigidity and helps dissipate motor heat, while the aluminum center driveshaft, aluminum propeller joints and metal drivetrain components provide smooth and dependable power transfer.

CVA oil-filled shock dampers with black coil springs improve traction and suspension control. Full ball bearings, racing slick tires and a high-speed 68-tooth gear set are also included.

This is an unassembled chassis kit. Body, motor, electronic speed control, radio equipment, servo, battery and charger are required separately.

Features:

• Upgraded 1/10 scale TT-02R touring car chassis
• Shaft-driven four-wheel-drive system
• Fully independent double-wishbone suspension
• Front and rear gear differentials
• Aluminum rear uprights provide 3-degree toe-in
• Improved stability while cornering
• Aluminum motor mount improves rigidity and heat dissipation
• Lightweight aluminum center propeller shaft
• Aluminum propeller joints
• Metal drive shafts, wheel axles and gearbox joints
• Full ball-bearing set
• CVA oil-filled shock dampers
• Black suspension coil springs
• Adjustable suspension turnbuckles
• TT-02 high-speed 68-tooth gear set
• 10-spoke touring car wheels
• Medium-narrow racing slick tires
• Blue-anodized aluminum hardware
• Adjustable gear-ratio capability
• Compatible with a wide selection of TT-02 option parts

Specifications:

• Scale: 1/10
• Chassis: TT-02R
• Drive System: Shaft-Driven 4WD
• Length: 376mm
• Width: 182mm
• Differential Type: Gear Differential
• Suspension: Fully Independent Double Wishbone
• Shock Type: CVA Oil-Filled Dampers
• Bearings: Full Ball Bearings
• Chassis Material: ABS Plastic
• Terrain Use: On-Road
• Assembly Level: Unassembled Chassis Kit

Includes:

• Tamiya TT-02R chassis assembly kit
• Aluminum rear uprights with 3-degree toe-in
• Aluminum motor mount
• Aluminum center propeller shaft
• Aluminum propeller joints
• Metal drive shafts
• Metal wheel axles
• Metal gearbox joints
• Full ball-bearing set
• CVA oil-filled shock dampers
• Black coil springs
• Adjustable turnbuckles
• High-speed 68-tooth gear set
• 10-spoke wheels
• Medium-narrow racing slick tires
• Blue-anodized aluminum hardware
• Assembly hardware
• Instruction manual

Required to Complete:

• Compatible 190mm touring car body
• Two-channel transmitter and receiver
• Steering servo
• 540-size brushed or brushless motor
• Compatible electronic speed control
• 7.2V–7.4V battery pack
• Compatible battery charger
• Transmitter batteries
• Body paint and finishing supplies
• Assembly tools

Important: Body, motor, electronic speed control, radio system, steering servo, battery and charger are not included
