Description:

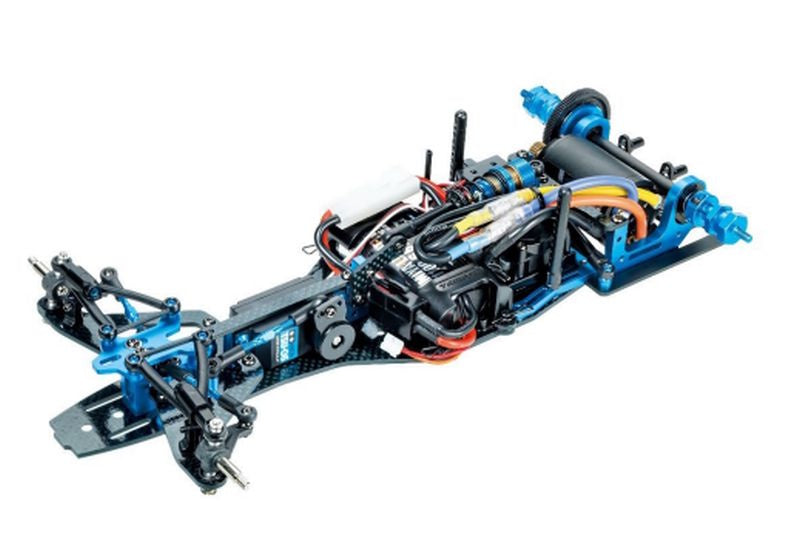

The Tamiya TRF104 is a high-performance 1/10 scale 2WD Formula racing chassis engineered for competitive on-road RC racing. Developed by Tamiya Racing Factory, this advanced kit combines precision aluminum components with a lightweight carbon-fiber chassis for excellent handling, adjustability and balance.

The redesigned chassis layout positions the battery, receiver and steering servo near the center to improve weight distribution and rear traction. Updated front and rear suspension systems provide extensive tuning options for camber, caster, track width, ride height, wheelbase, roll and pitch characteristics.

This is an unassembled chassis kit. The body, wings, wheels, tires, motor and electronics are sold separately.

Features:

• Competition-level 1/10 scale Formula racing chassis
• Rear-wheel-drive configuration
• Lightweight 2.5mm carbon-fiber lower deck
• Aluminum and carbon-fiber chassis components
• Centralized battery, receiver and servo layout
• Adjustable front camber from approximately +1 to -3 degrees
• Three selectable front caster settings: 6, 9 and 12 degrees
• 2.5mm carbon-fiber front lower suspension arms
• Plastic front upper A-arms
• Two front lower-arm mounting positions
• Front width can be adjusted by 3mm on each side
• Low-profile, laid-down steering servo position
• Four Ackermann steering-linkage adjustment positions
• Updated rear suspension with centrally positioned roll movement
• Roll springs help center the rear suspension
• Friction roll dampers allow roll-speed adjustment
• FRP suspension plate controls rear pitching movement
• TRF oil-filled rear mono shock
• Adjustable motor mount
• Five ground-clearance settings in 0.8mm increments
• Two selectable wheelbase positions with a 2.5mm difference
• Lightweight carbon-fiber rear axle
• Pressure-plate ball differential
• Two available rear-wing mounting configurations
• Full sealed ball-bearing set included
• Adjustable gear ratio
• Compatible with Formula-style rubber tires
• Designed for shorty-style LiPo and compatible LF battery configurations

Specifications:

• Scale: 1/10
• Chassis: TRF104
• Vehicle Type: Formula Racing Chassis
• Drive Type: 2WD Rear-Wheel Drive
• Length: 325mm, excluding wings
• Width: 169mm at the front axle, excluding wheels
• Height: 46.5mm, excluding body mount
• Chassis Material: Carbon Fiber and Aluminum
• Differential: Pressure-Plate Ball Differential
• Front Suspension: Coil-Spring Independent Suspension
• Rear Suspension: TRF Oil-Filled Mono Shock with Roll Dampers
• Bearings: Full Ball Bearings
• Motor Size: 540
• Terrain Use: On-Road
• Assembly Level: Unassembled Chassis Kit

Includes:

• Tamiya TRF104 chassis kit
• 2.5mm carbon-fiber lower chassis deck
• Carbon-fiber front lower suspension arms
• Aluminum chassis and suspension components
• Carbon-fiber rear axle
• Pressure-plate ball differential
• TRF rear oil-filled damper
• Full sealed ball-bearing set
• LiPo battery holder
• Body-mounting components
• Assembly hardware
• Instruction manual

Required to Complete:

• Two-channel transmitter and receiver
• Low-profile or compatible steering servo
• Electronic speed control
• 540-size brushed or brushless motor
• Compatible 7.2V–7.4V battery
• Compatible battery charger
• Formula-style body
• Front and rear wings
• Formula-style wheels and tires
• Tamiya PS polycarbonate paint
• Assembly tools

Important: Body, wings, wheels, tires, motor, electronic speed control, radio system, servo, battery and charger are not included.

Fits:

This is a complete TRF104 Formula chassis kit. It accepts compatible Tamiya F104-style Formula body, wing, wheel and tire components. Compatibility should be verified before purchasing separately sold components.

Part Number: 42389

Manufacturer Number: TAM42389

GTIN/EAN: 4950344423897
