Tamiya Quirkhopper GF-02 1/10 4WD RC Buggy Kit Motor ESC [58756]

Tamiya Quirkhopper GF-02 1/10 4WD RC Buggy Kit Motor ESC [58756]

Description:

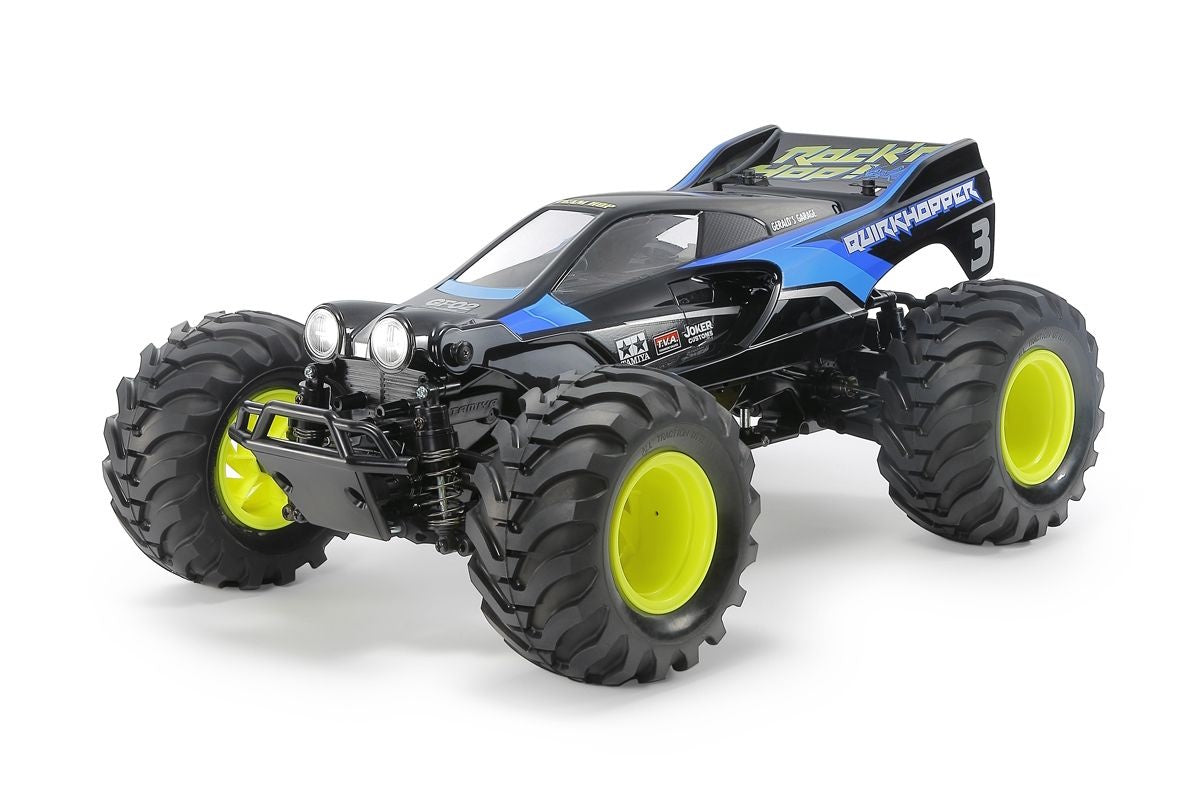

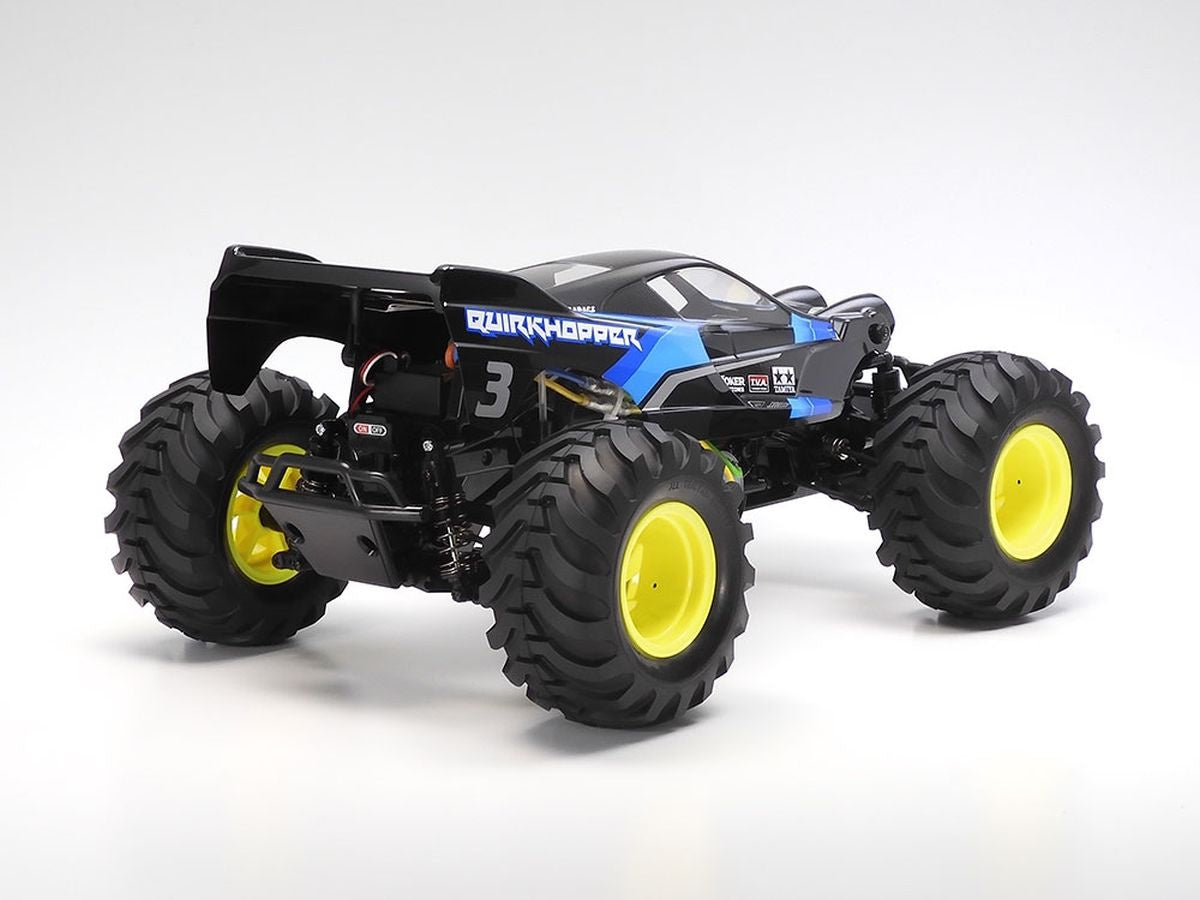

The Tamiya Quirkhopper is a unique 1/10 scale 4WD off-road RC assembly kit built on the durable and easy-to-assemble GF-02 chassis. Its distinctive bug-inspired polycarbonate body features twin headlights, side air intakes and an integrated rear wing.

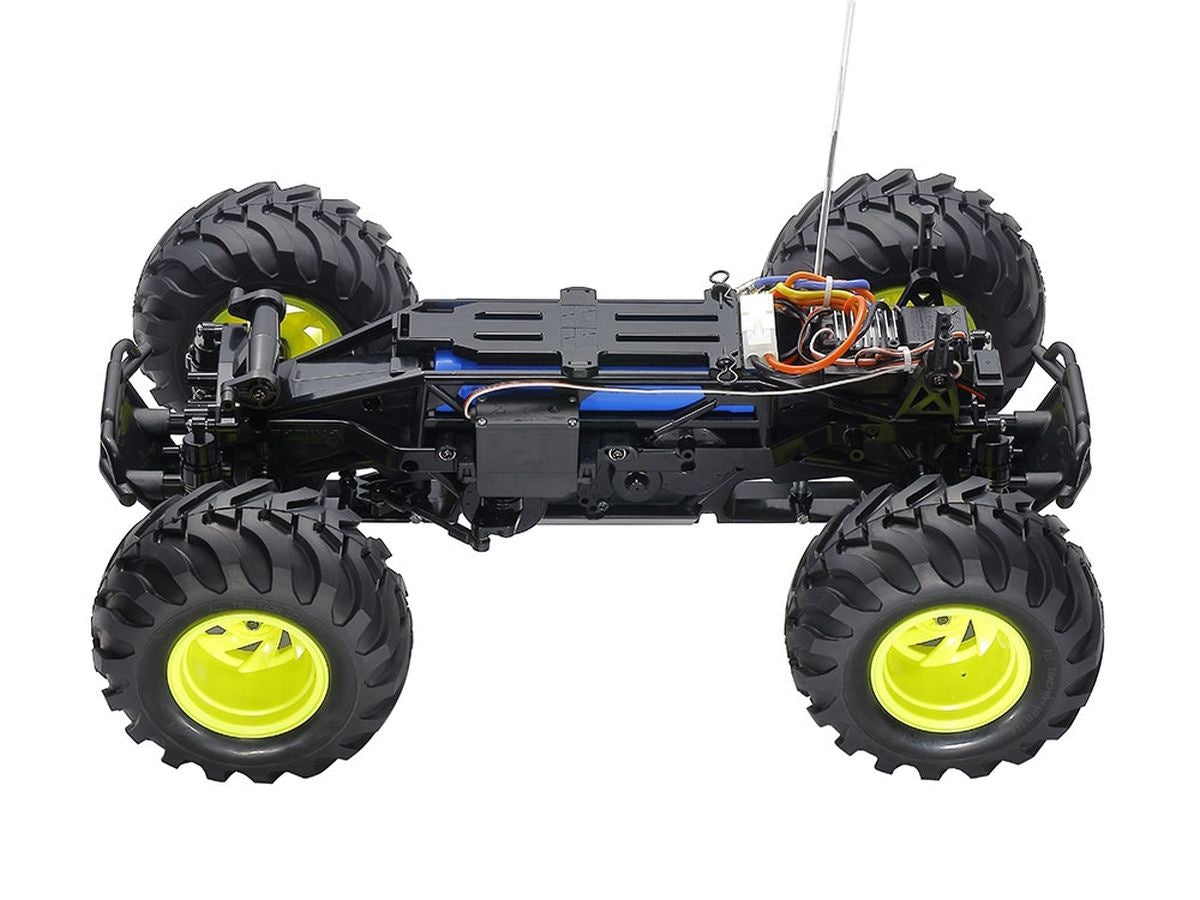

The gear-driven GF-02 chassis positions the motor low and near the center of the lightweight monocoque frame for stable handling. Large 123mm tires, a long wheelbase and wide track provide capable performance on a variety of on-road and off-road surfaces.

This is an unassembled kit that requires painting and additional electronics for completion.

Features:

• 1/10 scale electric RC assembly kit
• Gear-driven GF-02 four-wheel-drive chassis
• Lightweight and durable monocoque frame
• Integrated sealed gearboxes help keep out dirt and debris
• Front and rear gear differentials for smooth cornering
• Four-wheel independent double-wishbone suspension
• Four friction shock dampers
• Low, centrally positioned motor
• Long wheelbase and wide track for stable handling
• Large 123mm semi-pneumatic off-road tires
• Fluorescent yellow one-piece deep-dish wheels
• Lightweight 0.7mm polycarbonate body
• Twin polycarbonate headlight pieces
• Separate side air-intake details
• Integrated rear wing design
• Dedicated body sticker set
• Motor guard for added off-road protection
• Can be converted to four-wheel steering with separately sold equipment

Specifications:

• Scale: 1/10
• Drive System: Gear-Driven 4WD
• Chassis: GF-02
• Motor Type: 540 Brushed
• Length: 400mm
• Width: 280mm
• Height: 175mm
• Wheelbase: 267mm
• Front and Rear Track: 222mm
• Tire Diameter: 123mm
• Tire Width: 60mm
• Gear Ratio: 18.03:1
• Suspension: Independent Double Wishbone
• Shock Type: Friction Damper
• Body Material: Polycarbonate
• Assembly Level: Unassembled Kit

Includes:

• Tamiya Quirkhopper GF-02 RC assembly kit
• Clear polycarbonate body
• Type 540 brushed motor
• HobbyWing THW 1060 brushed electronic speed control
• Fluorescent yellow wheels
• 123mm off-road tires
• Body sticker set
• Assembly hardware
• Instruction manual

Required to Complete:

• Two-channel or greater transmitter and receiver
• Standard-size steering servo
• 7.2V–7.4V battery pack
• Compatible battery charger
• AA batteries for the transmitter
• Tamiya PS polycarbonate paint
• Assembly tools

Fits:

This is a complete Tamiya Quirkhopper vehicle kit built on the GF-02 chassis. It is not a replacement body or upgrade part for another vehicle.

Part Number: 58756

Manufacturer Number: TAM58756

UPC: 4950344587568
