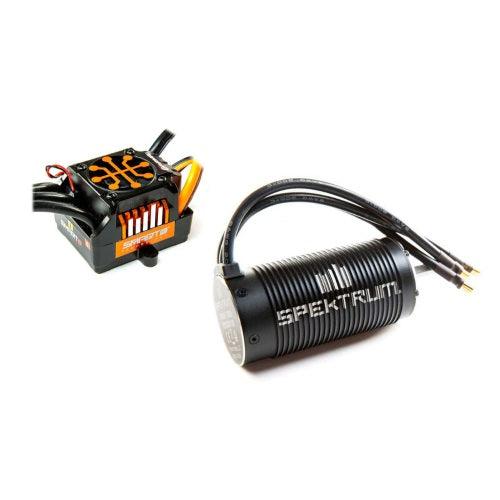

Spektrum SPMXSEMC05 Firma 150A Brushless Smart ESC / 2050Kv Sensorless Motor Combo
Description
The Spektrum Firma 150A Smart ESC and 2050Kv sensorless brushless motor combo delivers a powerful, ready-to-install system for compatible 1/8-scale surface vehicles. The ESC supports 3S–6S LiPo power and provides up to 150A continuous current with a maximum output rating of 3000 watts.
Spektrum Smart technology provides real-time telemetry through a compatible Spektrum receiver and transmitter. Available telemetry data can include motor RPM, ESC temperature, battery voltage, capacity, and other operating information without requiring additional sensors or telemetry modules.
The waterproof ESC features a rugged case, aluminum heatsink, cooling fan, adjustable programming options, and multiple protection systems. It comes equipped with an IC5 battery connector and 6.5mm motor connectors for installation without soldering.
Features
- Genuine Spektrum Firma brushless power-system combo
- Part number: SPMXSEMC05
- Firma 150A Smart brushless ESC
- Firma 2050Kv sensorless brushless motor
- Designed for 1/8-scale surface applications
- Compatible with 3S–6S LiPo batteries
- 150A maximum continuous current
- 950A maximum burst current
- Up to 3000-watt output
- Spektrum Smart all-in-one telemetry
- Fast 32-bit ARM M4 processor
- Waterproof ESC construction
- Rugged ESC case with mounting tabs
- Aluminum ESC heatsink
- Integrated cooling fan
- Programmable low-voltage cutoff
- Adjustable high-power BEC
- Over-current protection
- Thermal protection
- Automatic LiPo low-voltage cutoff
- Failsafe protection
- Multiple programming options
- Firmware-updatable using the optional Smart ESC Programming Box
- IC5 battery connector
- Backward-compatible with EC5 battery connectors
- 6.5mm motor connectors
- Prewired and ready to install without soldering
ESC Specifications
- ESC Type: Sensorless Brushless
- Continuous Current: 150A
- Maximum Burst Current: 950A
- Input Voltage: 3S–6S LiPo
- Maximum Input Voltage: 22.2V
- Maximum Output: 3000W
- Battery Connector: IC5
- Motor Connectors: 6.5mm
- BEC Voltage: 6V
- BEC Continuous Current: 4A
- ESC Length: 58mm
- ESC Width: 47.5mm without tabs / 59.5mm with tabs
- ESC Height: 38.5mm
- ESC Weight: 238g
Motor Specifications
- Motor Type: Sensorless Brushless
- Motor Rating: 2050Kv
- Motor Class: 1/8 Scale
- Motor Diameter: 40mm
- Motor Shaft Diameter: 5mm
Programming Options
- ESC set-button programming
- Spektrum Smart ESC Programming Box
- Spektrum SmartLink USB Programmer application
- Compatible on-screen transmitter programming
Includes
- 1 Spektrum Firma 150A Smart Brushless ESC
- 1 Spektrum Firma 2050Kv Sensorless Brushless Motor
- 1 Spektrum Smart Sticker Sheet
- 1 Product Manual
Requires
- Compatible surface transmitter and receiver
- Compatible 3S–6S LiPo battery
- Compatible LiPo battery charger
A compatible Spektrum Smart receiver, transmitter, and Smart battery are required to access the full range of Smart telemetry features.
Fits
- ARRMA 1/7 Limitless 6S 4X4 Roller – ARA7116V2
- ARRMA 1/8 Kraton 6S 4X4 Roller – ARA106053
- ARRMA 1/8 Typhon 6S 4X4 RTR – ARA8606V5
