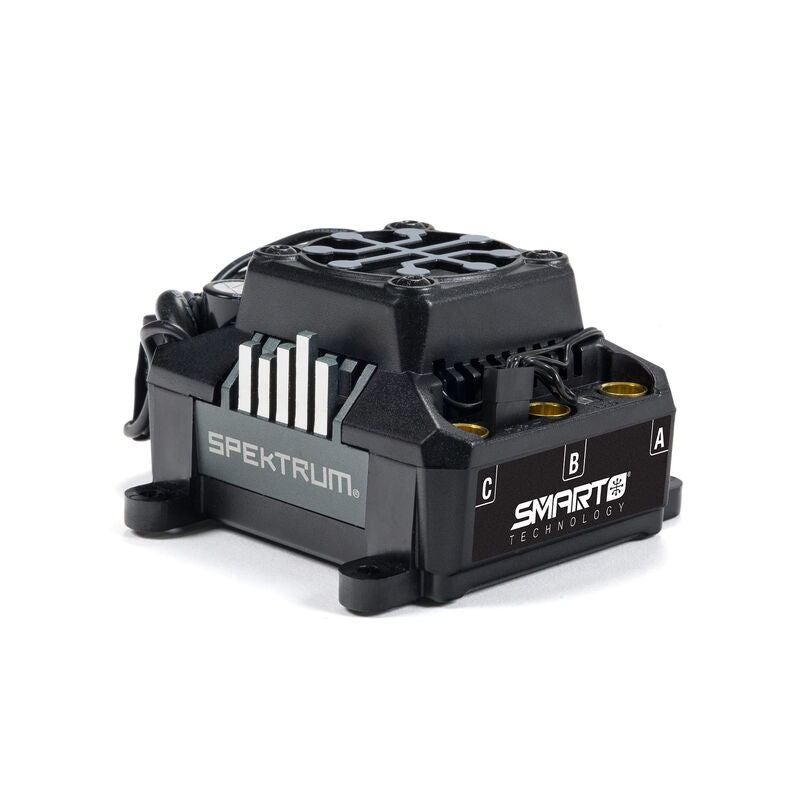

Product Title: Spektrum Firma 160A Brushless Smart ESC V2 3S–8S Dual IC5
Description:
The Spektrum Firma 160A Brushless Smart ESC V2 delivers powerful, smooth control for high-performance sensorless brushless RC vehicles using 3S through 8S LiPo power. Its Black Edition case, enhanced electronics and fast 32-bit ARM M4 processor provide reliable operation for demanding applications.
Built-in Spektrum Smart technology sends real-time telemetry—including RPM, temperature and battery voltage—to a compatible Spektrum Smart receiver and transmitter without requiring additional telemetry modules.
Features:
- 160A continuous current rating
- Supports 3S through 8S LiPo batteries
- Dual IC5 battery connectors wired in series
- Compatible with standard EC5 battery connectors
- 6.5mm female motor bullet connectors
- Sensorless brushless motor compatibility
- Spektrum Smart one-wire telemetry
- Fast 32-bit ARM M4 processor
- Adjustable 6V or 8.4V BEC output
- 8A continuous BEC current
- Built-in cooling fan and aluminum heat sink
- Programmable low-voltage cutoff
- Over-current, thermal and failsafe protection
- Multiple programming options
- Firmware-updatable design
- IP67-rated waterproof construction
- Prewired and ready to install
Specifications:
- Continuous Current: 160A
- Maximum Burst Current: 1050A
- Input Voltage: 3S–8S LiPo
- Battery Input: Dual IC5, EC5 compatible
- Battery Wire: 10AWG
- Motor Connections: 6.5mm female bullets
- BEC Voltage: Selectable 6V or 8.4V
- BEC Continuous Current: 8A
- Motor Type: Sensorless brushless
- Length: 69mm
- Width: 77mm
- Height: 46mm
- Weight: 280g
Includes:
- One Spektrum Firma 160A Brushless Smart ESC V2
- One Spektrum Smart sticker sheet
- One product manual
Fits:
- High-performance RC cars, trucks and other surface vehicles designed for a 160A sensorless brushless ESC
- Compatible 3S through 8S LiPo power systems
- Vehicles using dual IC5 or EC5 battery connections
- Systems using 6.5mm motor bullet connectors
Verify available mounting space, motor specifications and the vehicle drivetrain’s maximum supported voltage before installation.
Part Number: SPMXSE2160
