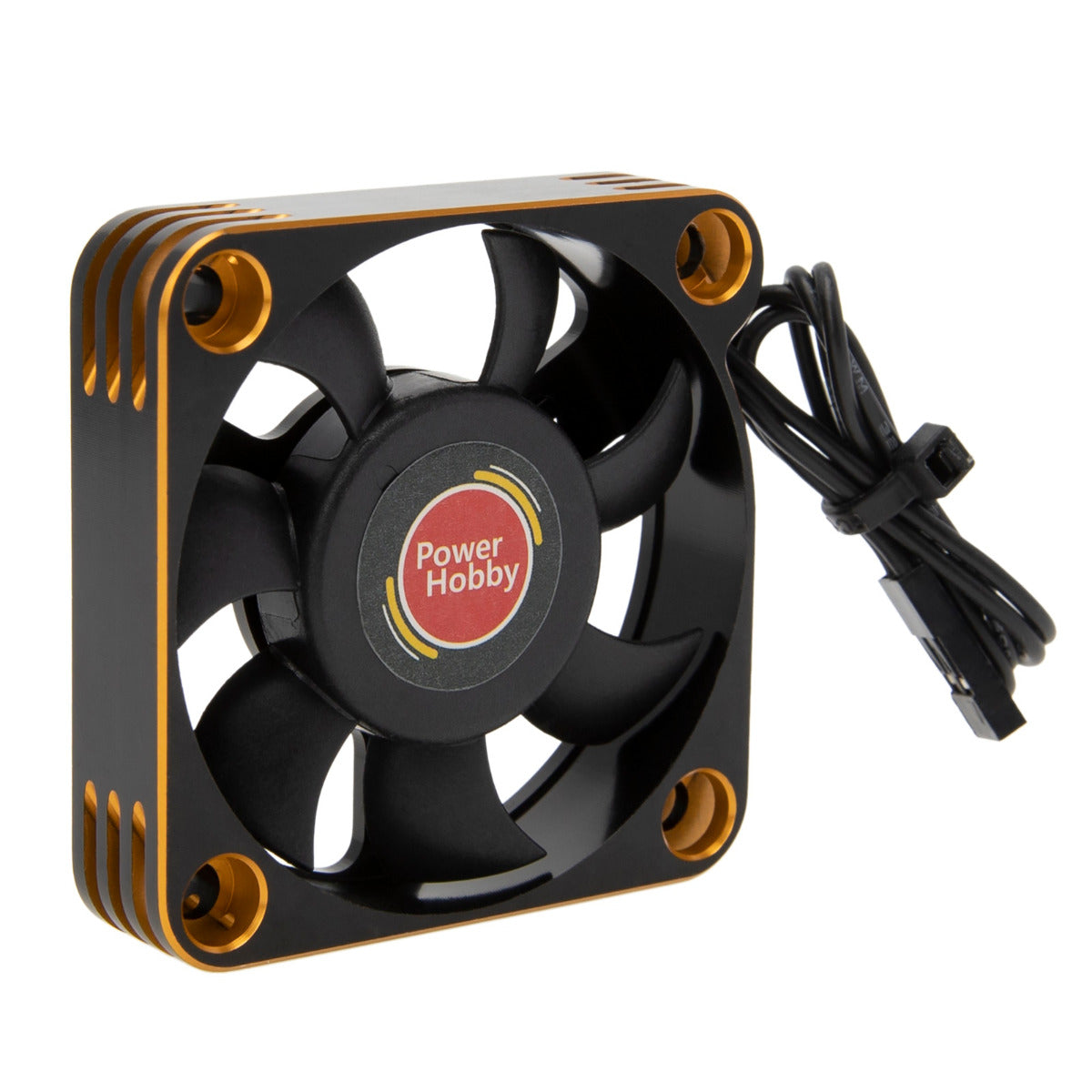

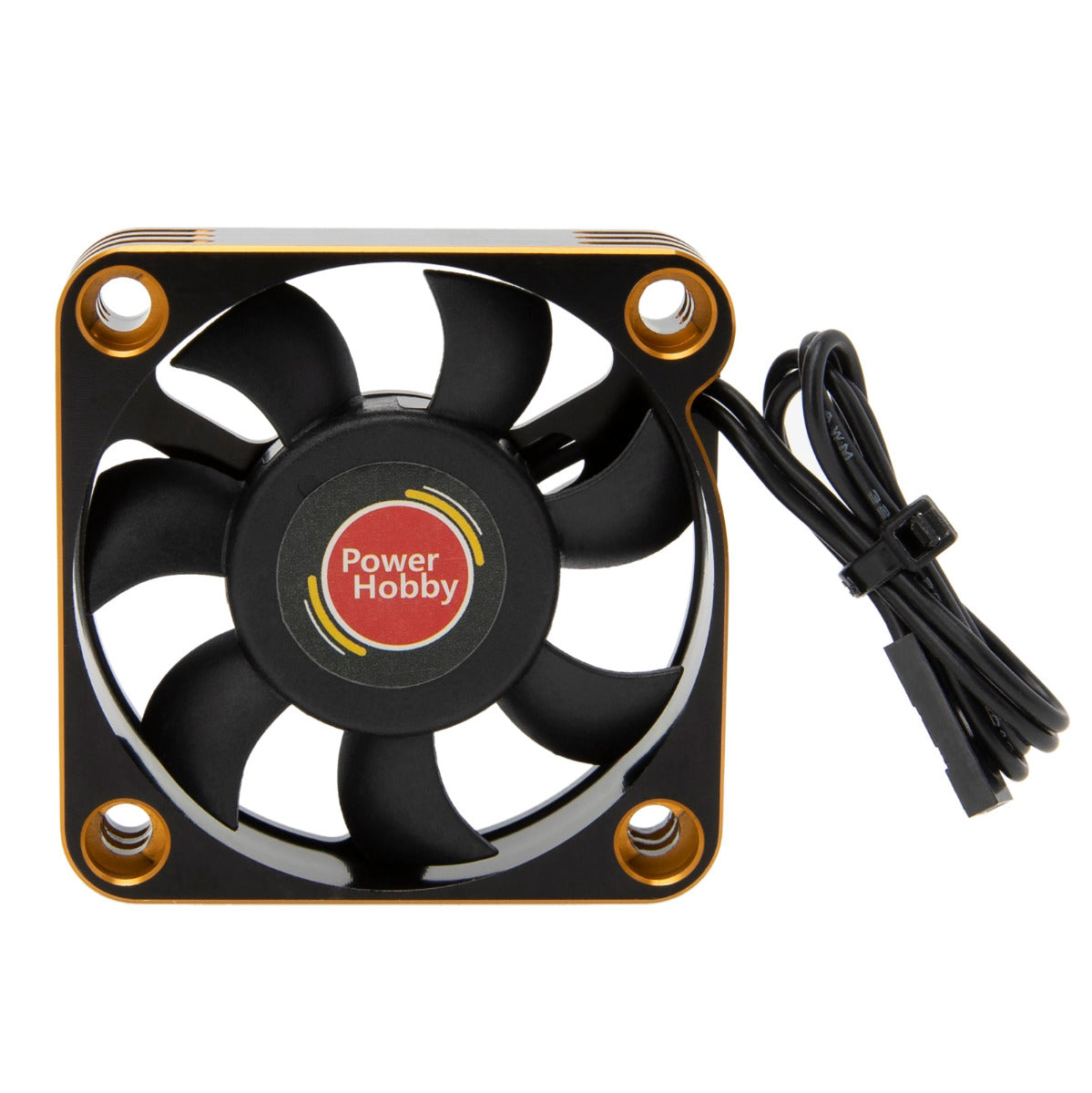

Powerhobby 5010 50MM High Speed ESC / Motor Cooling Gold
Description
The PowerHobby 5010 High-Speed Cooling Fan provides increased airflow for compatible RC motors, electronic speed controls, and custom cooling applications.
The 50mm fan operates at approximately 10,000 RPM and can be powered from a compatible 5–8.4V source. Reverse-polarity protection helps protect the fan if the power connector is accidentally connected incorrectly.
A 280mm power wire provides additional routing flexibility, while the 2-pin JST/receiver-style connector allows convenient installation in compatible RC electronics systems.
Features
- High-speed 50mm cooling fan
- Suitable for compatible RC motors and ESCs
- Approximately 10,000 RPM
- Reverse-polarity protected
- Wide 5–8.4V operating range
- Compatible with up to 2S LiPo voltage
- 2-pin JST/receiver-style connector
- Long 280mm power wire
- 40mm mounting-hole spacing
- Mounting holes sized for 4mm screws
- Gold finish
Specifications
- Part Number / SKU: PHB5765Gold
- Barcode: 659475187398
- Product Type: ESC and Motor Cooling Fan
- Fan Size: 50mm
- Fan Speed: 10,000 RPM ±10%
- Operating Voltage: 5–8.4V
- Maximum Battery Voltage: 2S LiPo
- Current Draw: 0.7A
- Connector: 2-Pin JST/Receiver-Style Plug
- Wire Length: 280mm
- Mounting-Hole Spacing: 40mm
- Mounting-Screw Size: 4mm
- Polarity Protection: Yes
- Color: Gold
Includes
- 1 PowerHobby 5010 50mm High-Speed Cooling Fan
Fits
Universal RC cooling applications that accommodate:
- A 50mm cooling fan
- 40mm mounting-hole spacing
- 4mm mounting screws
- A 5–8.4V power source
- A compatible 2-pin JST/receiver-style connection
Suitable applications may include compatible:
- Electronic speed controls
- Brushless motors
- Motor cooling mounts
- ESC cooling mounts
- Large-scale RC vehicles
- Custom RC cooling installations
Verify the mounting-hole spacing, available clearance, connector type, connector polarity, operating voltage, and available current before purchasing.
Installation Note
Mount the fan securely using compatible 4mm hardware. Position it so airflow is directed toward the motor, ESC heatsink, or electronic component being cooled.
Route the 280mm wire away from gears, driveshafts, motor shafts, suspension components, and other moving parts.
Connect the fan to a compatible regulated power source supplying between 5V and 8.4V. Although the fan is reverse-polarity protected, connector polarity should still be confirmed before installation. Do not exceed 8.4V.
