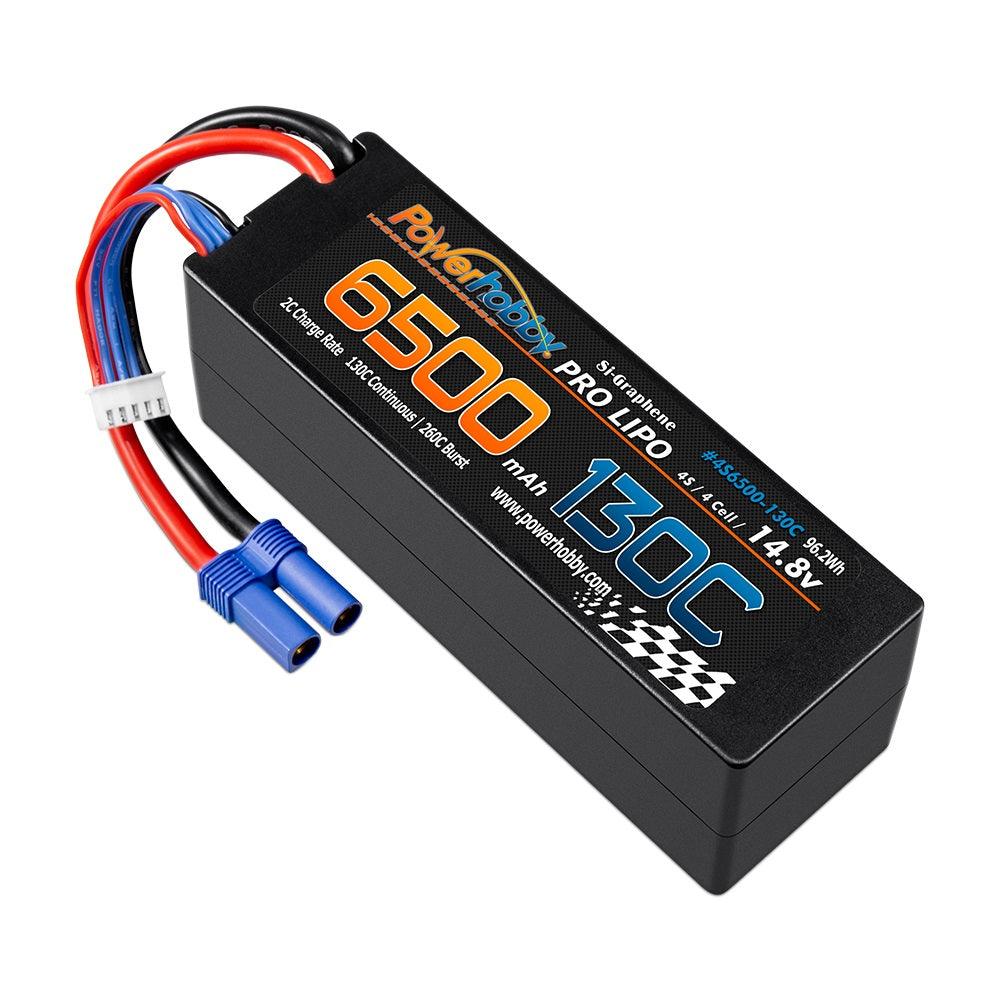

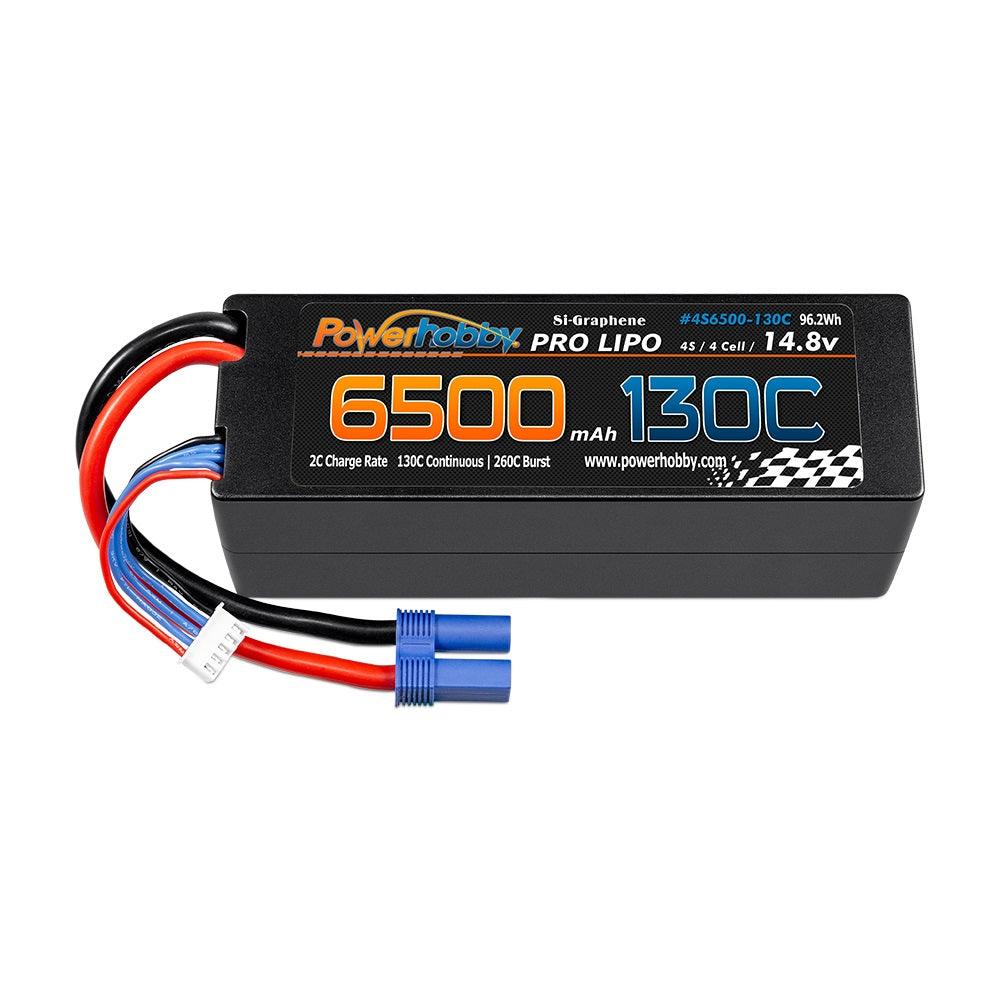

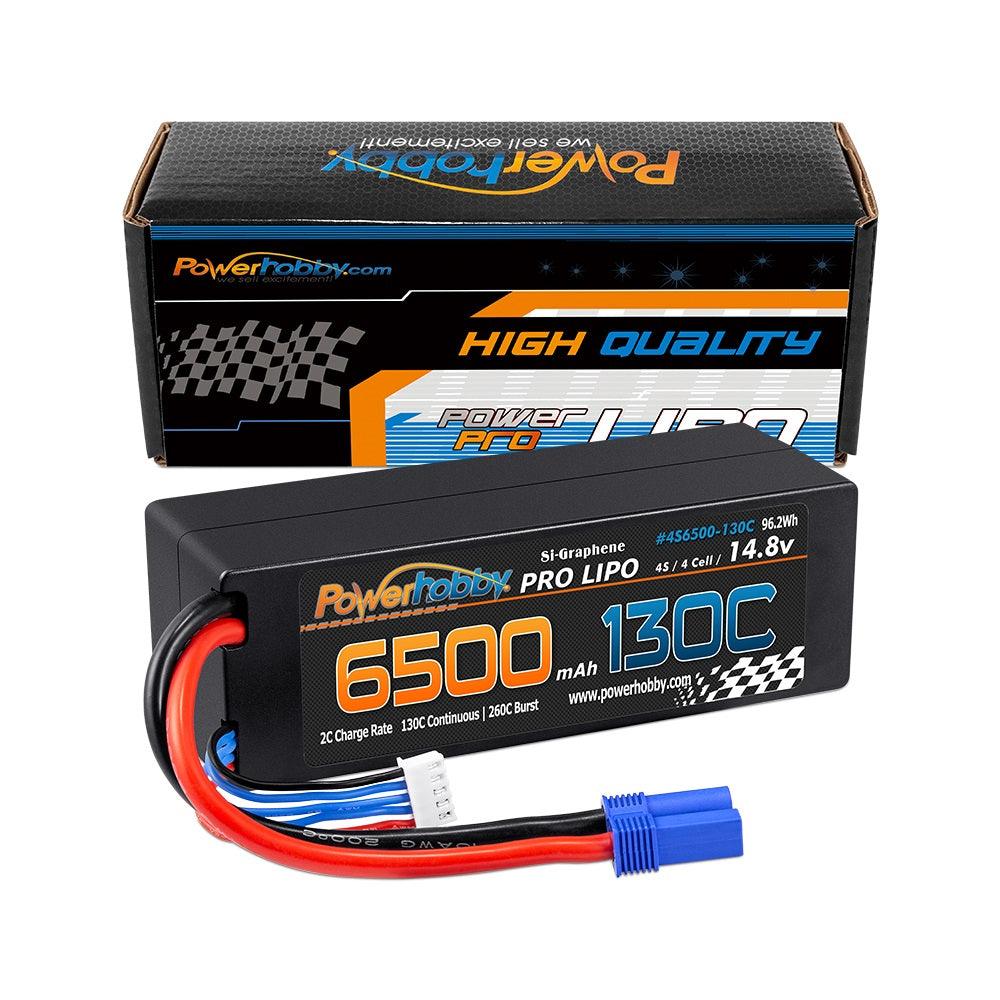

Powerhobby 4S 14.8V 6500mah 130c GRAPHENE Lipo Battery w EC5 Plug

Powerhobby 4S 14.8V 6500mah 130c GRAPHENE Lipo Battery w EC5 Plug

130C Continous / 260C Brust

Description

The Powerhobby 4S 6500mAh LiPo Battery delivers high-output power, extended runtime and consistent performance for demanding RC applications. Its large 6500mAh capacity provides longer driving sessions, while the available 100C, 120C and 130C discharge ratings let you select the performance level that best matches your vehicle and electronics.

The standard 100C versions operate at 14.8V and deliver up to a 200C burst rate. The 120C Graphene HV version features a 15.2V nominal rating, protective LCG hard-case construction and up to a 240C burst rate. The higher-output 130C Graphene versions operate at 14.8V and provide up to a 260C burst rate for demanding brushless power systems.

Connector options include XT60, XT90, EC5, Deans and QS8. The QS8 version includes heavy-duty 8 AWG wire for high-current applications. Always verify your model’s battery compartment dimensions, voltage requirements and connector type before purchasing.

Features

• 4S lithium-polymer battery
• Large 6500mAh capacity
• Available in 100C, 120C and 130C discharge ratings
• Up to 200C, 240C or 260C burst output
• Standard 14.8V and high-voltage 15.2V options
• Graphene construction on 120C and 130C versions
• LCG hard case on the 120C version
• Multiple connector options
• JST-XH balance connector
• Extended runtime and strong acceleration
• Suitable for high-performance brushless RC systems
• Brand new and factory sealed

General Specifications

• Battery Type: LiPo or LiHV, depending on selected version
• Cell Count: 4S / 4 Cell
• Capacity: 6500mAh
• Balance Connector: JST-XH
• Quantity Included: One battery

100C Soft-Case Specifications

• Nominal Voltage: 14.8V
• Fully Charged Voltage: 16.8V
• Continuous Discharge Rate: 100C
• Maximum Burst Rate: 200C
• Case Type: Soft Case
• Length: Approximately 132–136mm
• Width: Approximately 43.5–44mm
• Height: Approximately 44.5–46mm
• Weight: Approximately 19.8–20.6 oz, depending on connector
• Suggested Charge Rate: Up to 2C

Available 100C Versions

• PHB4S6500100EC5 – EC5 Connector
• PHB4S6500100XT60 – XT60 Connector
• PHB4S6500100XT90 – XT90 Connector
• PH 4s 6500mah 100c Deans – Deans/T Connector

120C Graphene HV LCG Specifications

• Battery Type: Graphene LiHV
• Nominal Voltage: 15.2V
• Fully Charged Voltage: 17.4V in LiHV mode
• Continuous Discharge Rate: 120C
• Maximum Burst Rate: 240C
• Main Connector: EC5
• Case Type: LCG Hard Case
• Length: 138mm
• Width: 47mm
• Height: 35mm

Available 120C Version

• PHB4S6500120LCGEC5 – EC5 Connector, LCG Hard Case

130C Graphene Specifications

• Battery Type: Graphene LiPo
• Nominal Voltage: 14.8V
• Fully Charged Voltage: 16.8V
• Continuous Discharge Rate: 130C
• Maximum Burst Rate: 260C
• Length: 138mm
• Width: 48mm
• Height: 48mm
• Weight: Approximately 22.2 oz
• QS8 Version Wire: 8 AWG

Available 130C Versions

• PHB4S6500130QS8 – QS8 Connector with 8 AWG Wire
• PHB4S6500130EC5 – EC5 Connector

Fits

• Compatible 1/10 scale RC cars, trucks and buggies
• Compatible 1/8 scale RC cars, trucks and buggies
• Select 1/5 scale vehicles that can accommodate the battery
• Select RC boats, airplanes and drones
• Other RC models designed for a compatible 4S LiPo or LiHV battery

Fitment depends on the selected battery’s dimensions, voltage and connector. Confirm that the battery will physically fit your model and that the electronic speed control supports the selected 4S voltage.

A charger with a dedicated LiHV charging mode is required to charge the 15.2V 120C version to 4.35V per cell. The standard 14.8V versions should be charged using the regular LiPo setting.

Includes

• One Powerhobby 4S 6500mAh LiPo or LiHV Battery in the selected discharge rating and connector configuration

Warranty

This Powerhobby LiPo battery includes a six-month limited warranty from the original purchase date against defects in materials and workmanship.

The warranty does not cover:

• Physical or crash damage
• Damage caused by hard landings
• Improper installation or mounting
• Punctures, dents or battery deformation
• Overcharging or incorrect charger settings
• Deep discharging or operation below a safe voltage
• Excessive discharge current
• Modification, improper storage or misuse

Always inspect the battery before and after use. Stop using it immediately if it becomes swollen, punctured, unusually hot, physically damaged or unable to maintain balanced cell voltages. Proof of purchase may be required for warranty service.
