Powerhobby 2S 6000MAH 200C DRAG LIPO BATTERY PACK 2S4P w 8AWG Wire QS8 PLUG

Powerhobby 2S 6000MAH 200C DRAG LIPO BATTERY PACK 2S4P w 8AWG Wire QS8 PLUG



Description

The PowerHobby 2S 6000mAh LiPo battery lineup provides high-capacity runtime and powerful discharge performance for compatible RC cars, trucks, buggies, truggies, boats, aircraft, drones, and specialized drag-racing applications. Multiple discharge ratings, battery configurations, and connector options are available, allowing customers to select the version that best matches their vehicle, electronics, battery tray, and performance requirements.

The 120C versions feature high-voltage Graphene-enhanced LiPo construction with a 7.6V nominal rating. Their 120C continuous and 240C burst ratings provide strong acceleration, consistent voltage, and dependable runtime for demanding RC applications. Available connections include EC5, XT90, and a bullet/Deans-style configuration. The EC5 and XT90 versions use a standard rectangular battery configuration, while the bullet/Deans version features slightly different dimensions.

The PHB2S6000130S is a compact 7.6V HV Graphene Shorty hardcase battery designed for competitive racing. Its 130C continuous and 260C burst ratings provide strong power under load, while recessed 5mm female bullet terminals and a separate 2mm balance terminal support high-current racing systems. The shorty design allows the battery to be repositioned inside compatible trays to help adjust chassis weight distribution and vehicle handling.

The PHB2S6000150CBULLET is a standard 7.4V XTREME-series battery with a 150C continuous and 300C burst discharge rating. It features 4mm terminals, 12AWG wiring, a JST-XH balance connector, and a low-profile 22.5mm-high configuration. This version is intended for high-performance 1/10- and 1/8-scale brushless cars, trucks, and buggies.

The PHB2S6000MAH200CQS8 is specifically engineered for 1/10-scale drag racing. Its compact 2S4P configuration is designed to reduce voltage sag and provide maximum power during hard launches. The battery includes heavy-duty 8AWG wiring and a QS8 anti-spark connector, with a 200C continuous and 400C burst discharge rating.

The 7.6V LiHV versions require a compatible charger with a dedicated LiHV charging mode when charging to their full rated voltage. The 7.4V versions require a standard LiPo-compatible balance charger. Always verify the battery voltage, dimensions, connector type, polarity, charging requirements, and available battery-tray space before installation.

These PowerHobby LiPo batteries include a six-month limited warranty against defects in materials and workmanship from the original purchase date. The warranty does not cover damage caused by crashes, hard landings, improper mounting, physical deformation, overcharging, deep discharging, or excessive discharge current.

Features

• High-capacity 6000mAh battery construction
• 2S lithium-polymer configuration
• Standard LiPo and high-voltage LiHV options
• Graphene-enhanced construction on applicable versions
• Continuous discharge ratings from 120C to 200C
• Burst discharge ratings from 240C to 400C
• Strong acceleration and consistent voltage delivery
• Multiple connector and terminal configurations
• Standard, shorty, and specialized drag-racing designs
• Suitable as a replacement or additional performance battery
• Six-month limited warranty

Available Configurations

PHB2S6000120CBULLET

• Battery chemistry: HV Graphene LiPo
• Cell count: 2S
• Nominal voltage: 7.6V
• Capacity: 6000mAh
• Continuous discharge rating: 120C
• Burst discharge rating: 240C
• Main connection: Bullet/Deans-style configuration
• Balance connector: JST-XH
• Length: 134.5mm
• Width: 47mm
• Height: 25mm
• Weight: Approximately 10 ounces
• Suggested charge rate: 2C

PHB2S6000120CEC5

• Battery chemistry: HV Graphene LiPo
• Cell count: 2S
• Nominal voltage: 7.6V
• Capacity: 6000mAh
• Continuous discharge rating: 120C
• Burst discharge rating: 240C
• Main connector: EC5
• Balance connector: JST-XH
• Length: 138mm
• Width: 47mm
• Height: 25.1mm
• Suggested charge rate: 2C
• UPC: 735816513078

PHB2S6000120CXT90

• Battery chemistry: HV Graphene LiPo
• Cell count: 2S
• Nominal voltage: 7.6V
• Capacity: 6000mAh
• Continuous discharge rating: 120C
• Burst discharge rating: 240C
• Main connector: XT90
• Balance connector: JST-XH
• Length: 138mm
• Width: 47mm
• Height: 25.1mm
• Suggested charge rate: 2C
• UPC: 735816912895

PHB2S6000130S

• Battery chemistry: HV Graphene LiPo
• Configuration: Shorty hardcase
• Cell count: 2S
• Nominal voltage: 7.6V
• Capacity: 6000mAh
• Continuous discharge rating: 130C
• Burst discharge rating: 260C
• Power terminals: 5mm female bullet
• Balance terminal: 2mm
• Durable hard-plastic case
• UPC: 655466254179

PHB2S6000150CBULLET

• Battery chemistry: Standard LiPo
• Cell count: 2S
• Nominal voltage: 7.4V
• Capacity: 6000mAh
• Continuous discharge rating: 150C
• Burst discharge rating: 300C
• Power terminals: 4mm
• Wire gauge: 12AWG
• Balance connector: JST-XH
• Length: 139mm
• Width: 47mm
• Height: 22.5mm
• Weight: Approximately 9.7 ounces without wires
• Suggested charge rate: 2C

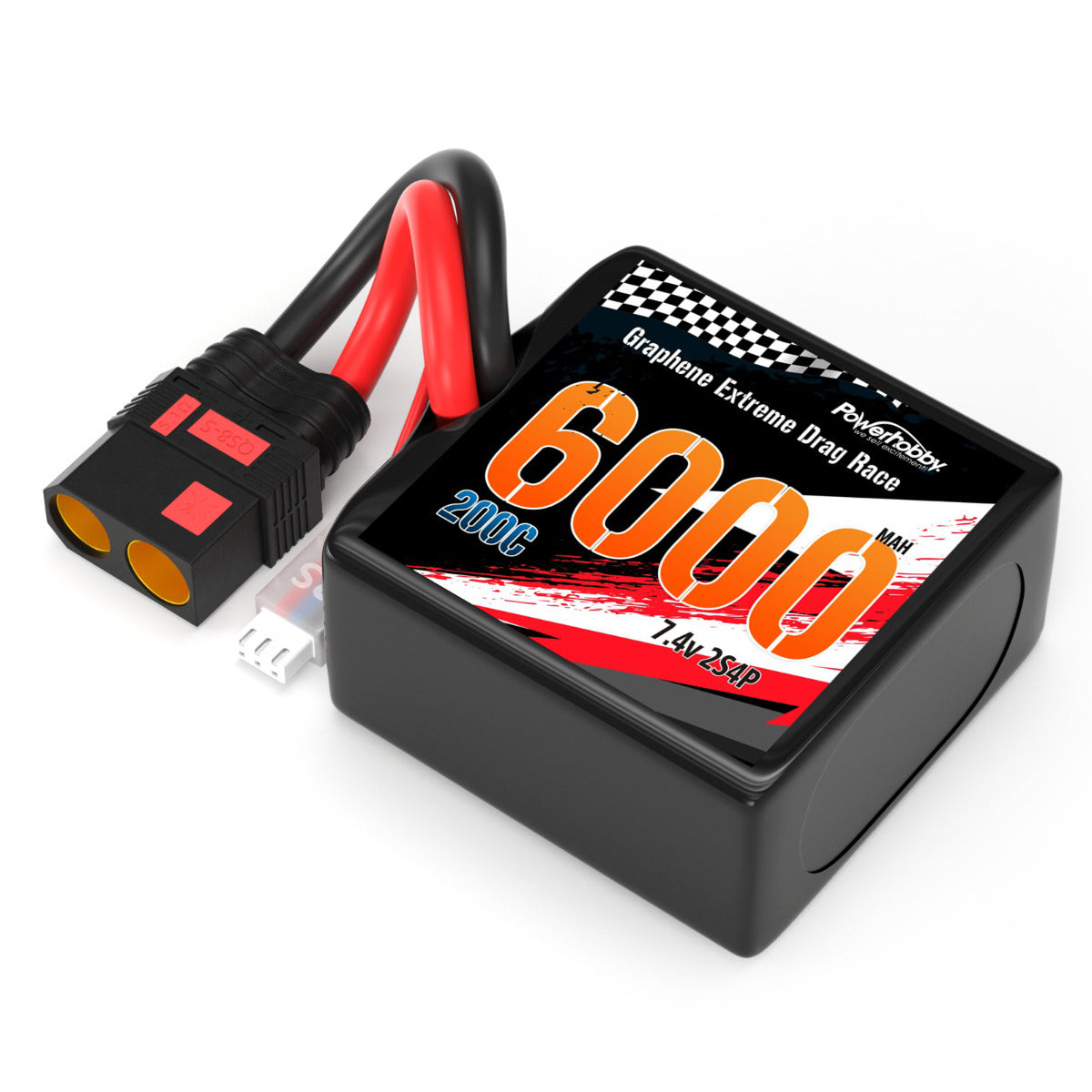

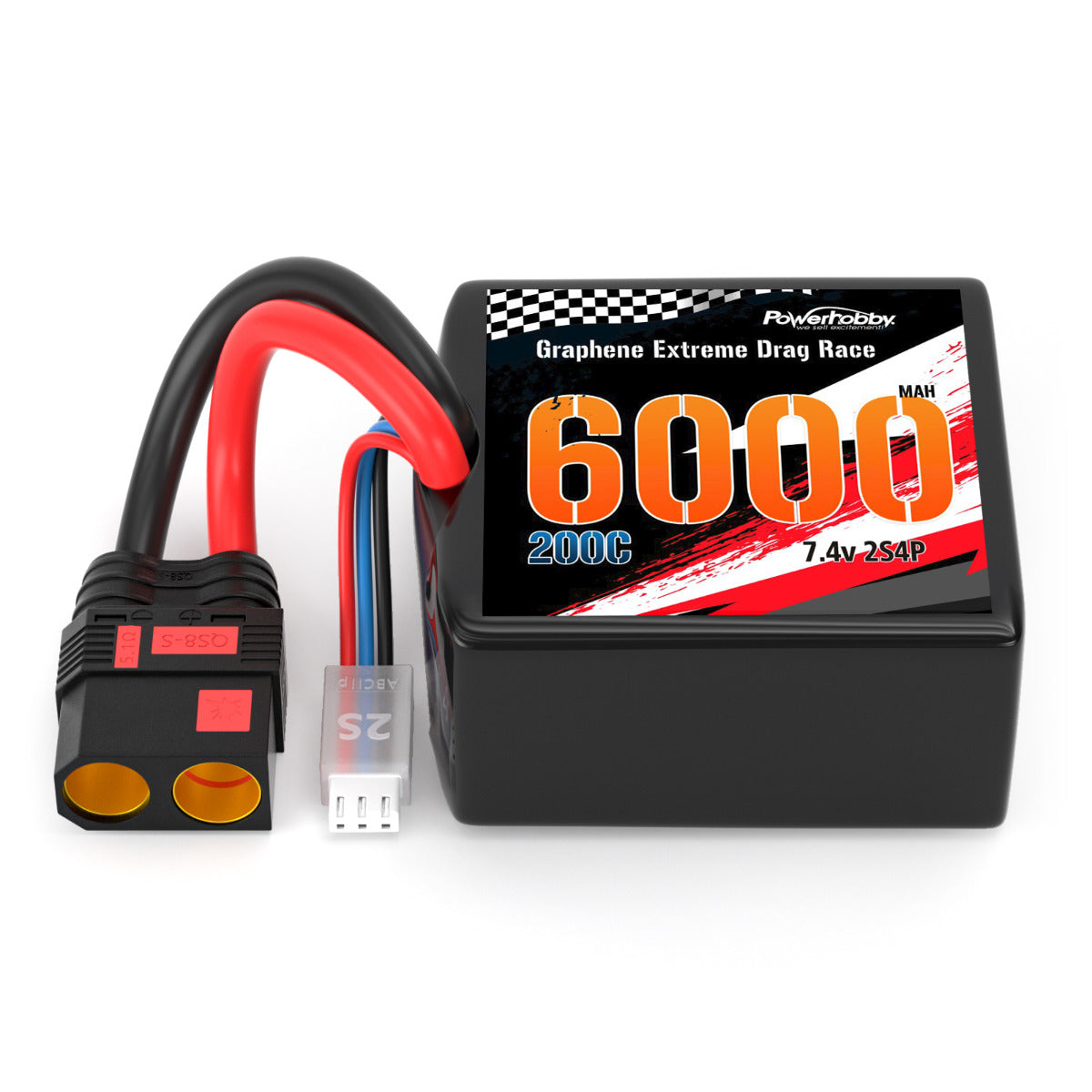

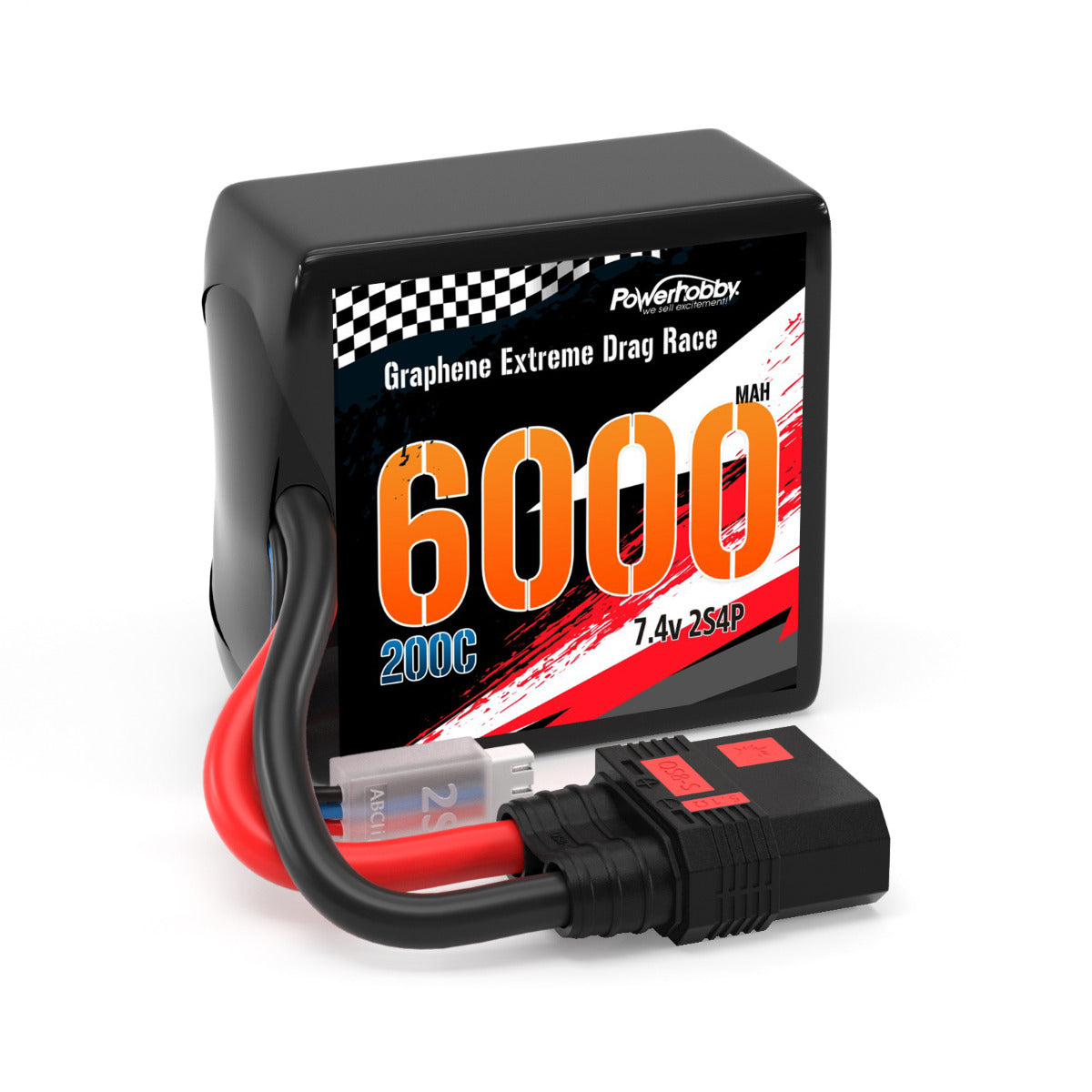

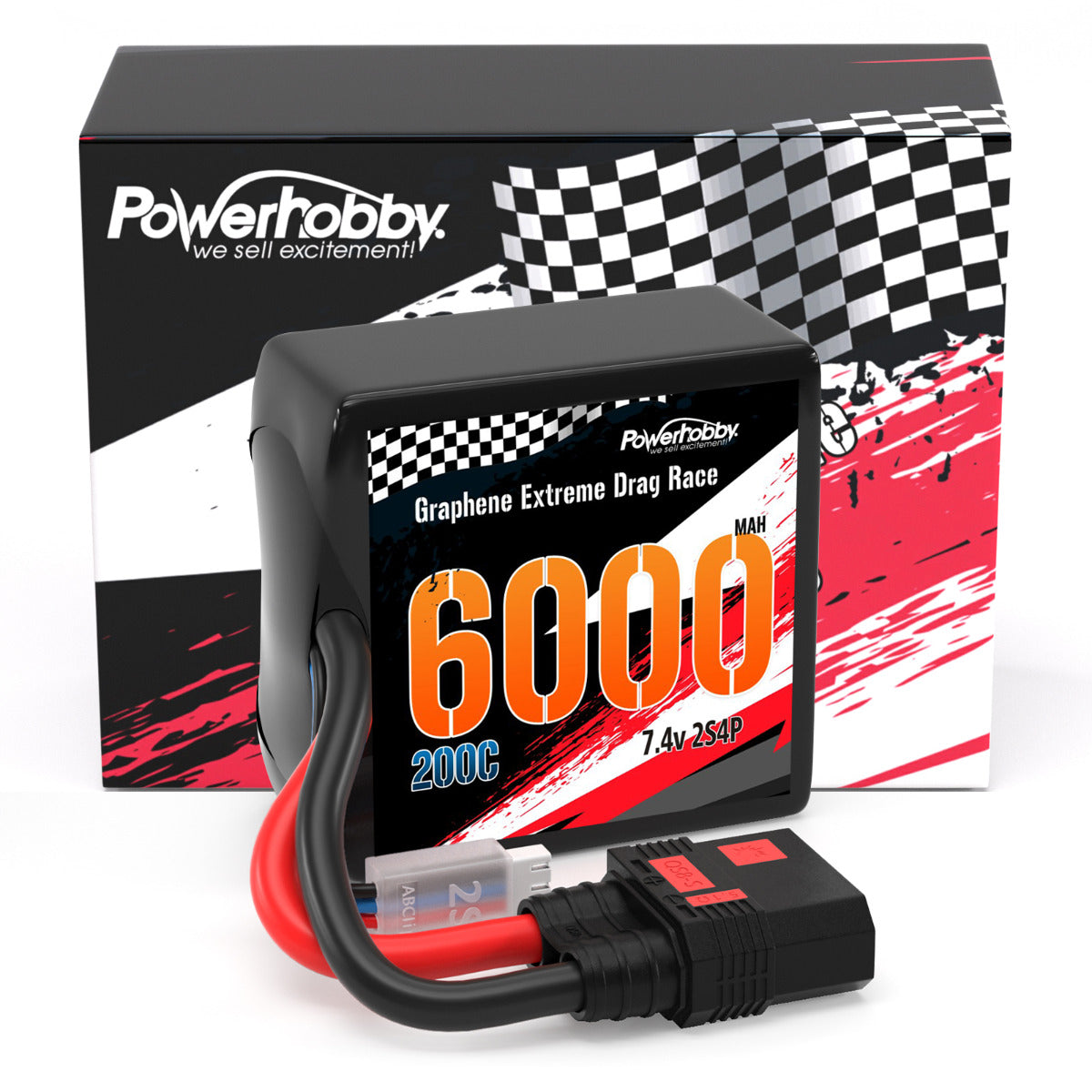

PHB2S6000MAH200CQS8

• Battery chemistry: Standard LiPo
• Configuration: Compact 2S4P drag-racing pack
• Cell count: 2S
• Nominal voltage: 7.4V
• Capacity: 6000mAh
• Continuous discharge rating: 200C
• Burst discharge rating: 400C
• Main connector: QS8 anti-spark
• Wire gauge: 8AWG
• Length: 68mm
• Width: 34.5mm
• Height: 69.5mm
• Weight: 372g
• Suggested charge rate: 2C
• UPC: 735816886011

Includes

• 1 PowerHobby 2S 6000mAh LiPo battery in the selected configuration

Fits

• Compatible 1/10-scale RC cars, trucks, and buggies
• Compatible 1/8-scale cars, trucks, buggies, and truggies
• Compatible RC boats, aircraft, and drones
• Compatible racing vehicles using a shorty hardcase battery
• 1/10-scale RC drag-racing vehicles – PHB2S6000MAH200CQS8
• Other models requiring a matching 2S 6000mAh battery

Part Numbers

• PHB2S6000130S
• PHB2S6000120CBULLET
• PHB2S6000150CBULLET
• PHB2S6000120CEC5
• PHB2S6000MAH200CQS8
• PHB2S6000120CXT90
