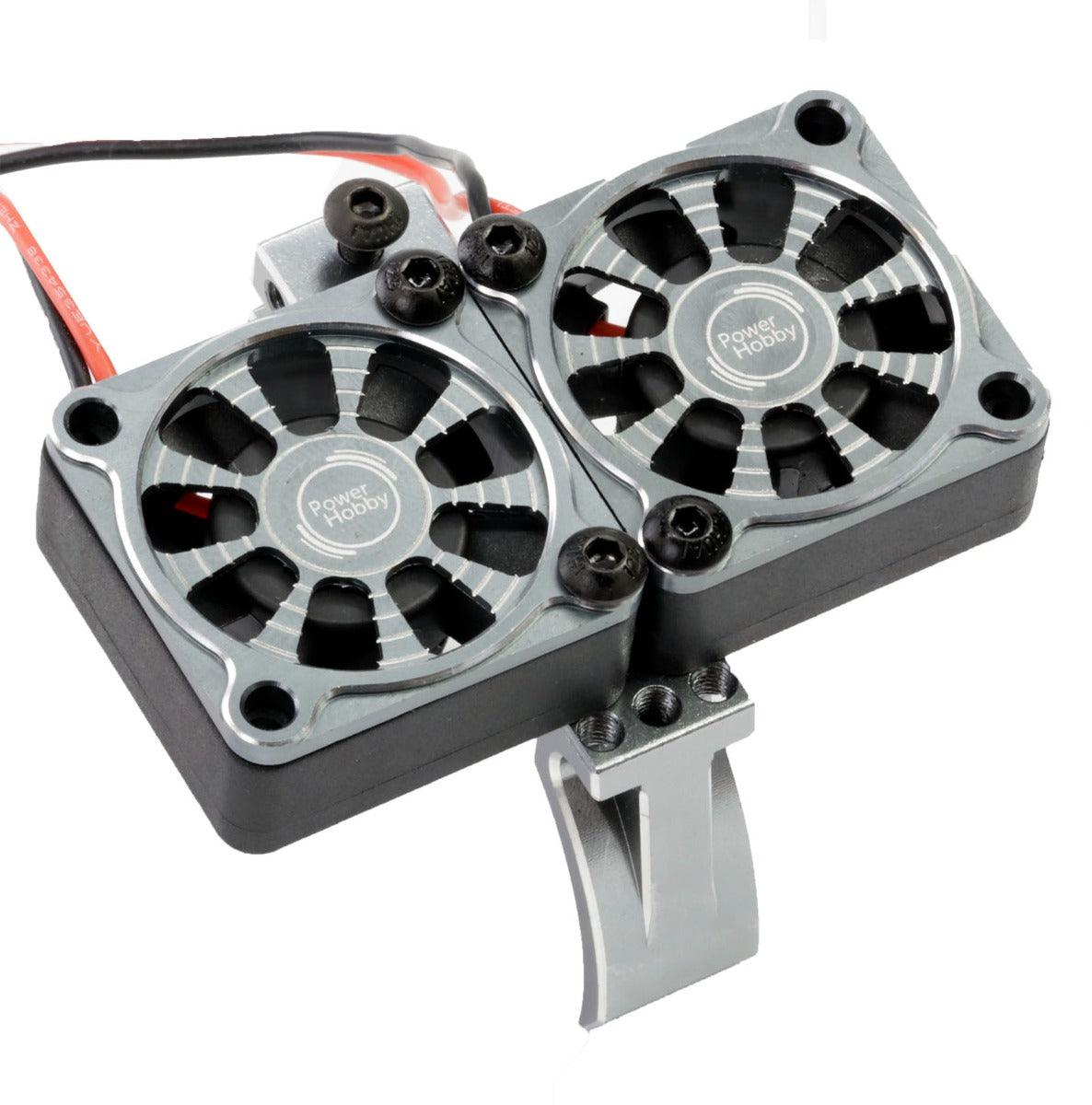

Powerhobby 1/10 Aluminum Heatsink Mount 30mm Twin Turbo Cooling Fans 28K Gunmetal

Powerhobby 1/10 Aluminum HeatSink (Motor Mount) w/Twin Turbo High-Speed 30mm Cooling Fans

Description

The PowerHobby Aluminum Motor Heatsink Mount with Twin Turbo High-Speed Cooling Fans is designed to help reduce motor temperatures in compatible 1/10-scale RC vehicles.

The aluminum mount fits motors measuring approximately 36–38mm in diameter. Two high-speed 30mm cooling fans provide increased airflow across the motor can to help control heat during extended runs, aggressive driving, and demanding operating conditions.

The included JST Y-splitter combines both fan connections into a receiver-style plug, allowing the cooling system to connect to a compatible open receiver channel or external BEC.

Features

• Designed for motors measuring approximately 36–38mm in diameter
• Suitable for compatible 1/10-scale RC vehicles
• Durable aluminum motor mount
• Twin high-speed cooling-fan design
• Two 30 × 30 × 10mm cooling fans
• Approximately 28,000 RPM at 8.4V
• 6–8.4V operating-voltage range
• Aluminum fan covers help protect the fan blades
• Includes JST Y-splitter with receiver-style connector
• Approximately 15-inch total wire length
• Helps reduce motor temperatures during demanding operation
• Gunmetal finish

Specifications

• Part Number / SKU: PH1297Gunmetal
• Barcode: 791511477497
• Product Type: Motor Heatsink Mount and Dual-Fan Cooling System
• Recommended Scale: 1/10 Scale
• Compatible Motor Diameter: Approximately 36–38mm
• Fan Quantity: 2
• Fan Dimensions: 30 × 30 × 10mm
• Fan Speed: Approximately 28,000 RPM at 8.4V
• Input Voltage: 6–8.4V
• Total Wire Length: Approximately 15 inches
• Connector: JST Y-Splitter with Receiver-Style Plug
• Motor-Mount Material: Aluminum
• Fan-Cover Material: Aluminum
• Color: Gunmetal

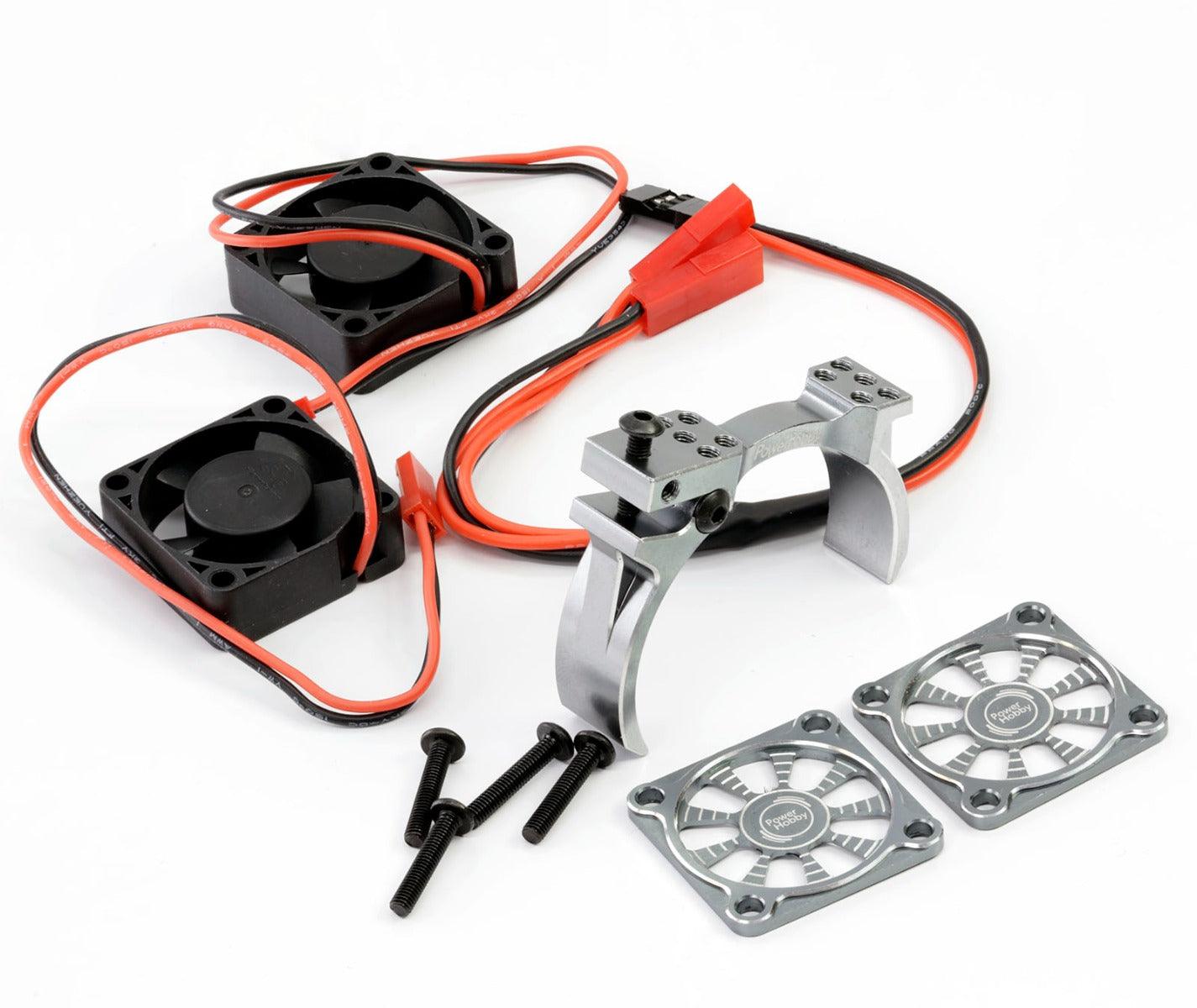

Includes

• 1 Aluminum Motor Heatsink Mount
• 2 High-Speed 30 × 30 × 10mm Cooling Fans
• 2 Aluminum Fan Covers
• 1 JST Y-Splitter with Receiver-Style Connector

Fits

Universal 1/10-scale RC applications using a compatible motor measuring approximately 36–38mm in diameter, including many:

• 1/10-scale touring cars
• 1/10-scale buggies
• 1/10-scale short-course trucks
• 1/10-scale stadium trucks
• 1/10-scale monster trucks
• Drift cars
• Drag cars
• Speed-run vehicles
• Custom high-performance RC builds

Verify the motor diameter, chassis clearance, mounting space, connector compatibility, power-source voltage, and available current before purchasing.

Installation Note

Secure the aluminum mount around a clean section of the motor can. Make sure the mount cannot rotate or move during operation.

Keep the fans, covers, screws, and wiring away from the motor shaft, pinion gear, spur gear, driveshafts, suspension components, and other moving parts.

Connect the receiver-style plug to a compatible open receiver channel or external BEC supplying between 6V and 8.4V. Confirm connector polarity and available current before applying power. Do not exceed 8.4V.
