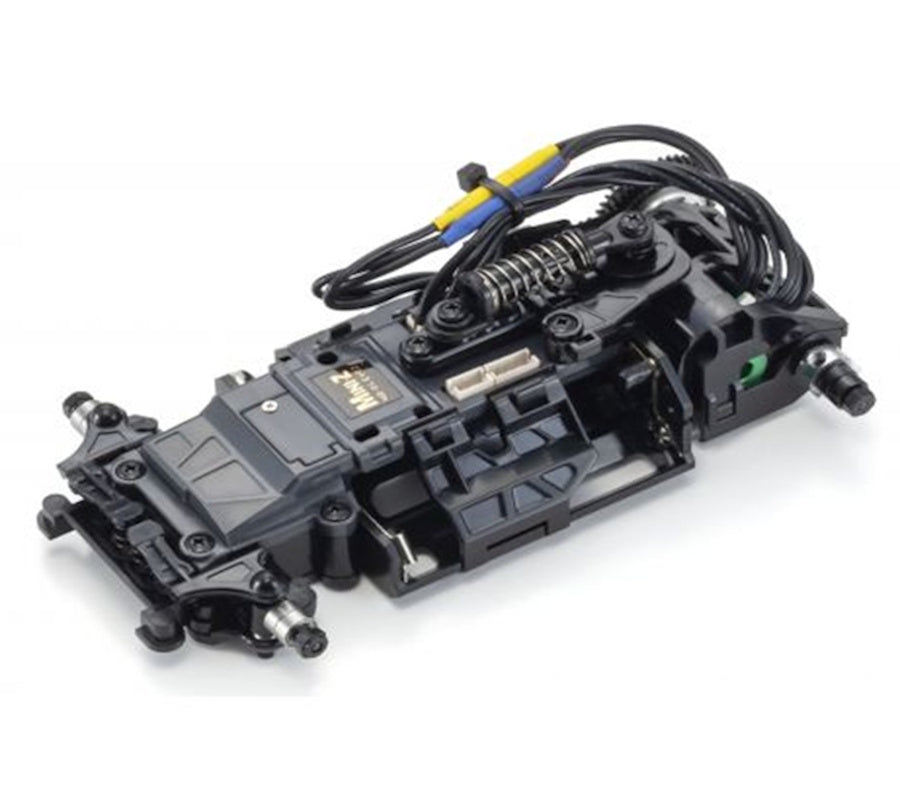

Kyosho MINI-Z MR-04EVO2 N-MM2 4100KV Brushless Chassis

Kyosho 32895 MINI-Z MR-04EVO2 N-MM2 4100KV Brushless Chassis Set.

Product Description:

Build a precision MINI-Z racing machine with the Kyosho 32895 MR-04EVO2 N-MM2 Chassis Set. Designed for advanced MINI-Z racers, this factory-assembled rear-wheel-drive chassis is powered by a KYOSHO SPEED HOUSE XSPEED 41 4100KV sensored brushless motor.

The MR-04EVO2 platform retains the proven layout of the MR-03 while introducing an improved front suspension system, revised steering geometry and a lower battery position. These updates create a lower center of gravity for improved stability, cornering speed and control.

Kyosho’s high-rigidity Front Suspension Arm 2.0 comes installed as standard. The updated kingpin-integrated steering knuckles and 3mm inner-diameter ball bearings provide smooth suspension movement, reduced rotational resistance and more precise handling.

A factory-installed ball differential helps manage the rotational speed difference between the rear wheels while cornering. It also provides controlled slip under excessive load to improve rear traction.

The front tread can be adjusted between narrow and wide settings by changing the included suspension plates and steering tie rod components. The N-MM2 configuration uses a 94mm wheelbase and is designed for compatibility with appropriate MINI-Z Auto Scale bodies.

The EVO2 electronics support high-speed communication with compatible receiver units and advanced transmitters. Motor RPM can also be adjusted using the Kyosho I.C.S. Setting Manager for precise class-specific performance tuning.

Please note that this is a chassis set only. The transmitter, receiver, body, wheels, tires, gyro and batteries are sold separately.

Key Features:

• Factory-assembled MR-04EVO2 N-MM2 chassis
• Rear-wheel-drive MINI-Z racing platform
• KYOSHO SPEED HOUSE XSPEED 41 motor
• 4100KV sensored brushless motor
• High-rigidity Front Suspension Arm 2.0
• Redesigned front suspension geometry
• Kingpin-integrated front steering knuckles
• Adjustable narrow or wide front tread
• Lower battery mounting position
• Low center of gravity for improved stability
• Seven low-resistance ball bearings
• Factory-installed ball differential
• Adjustable motor RPM through I.C.S. Setting Manager
• Compatible with EVO and EVO2 receiver units
• Multiple included pinion gears for ratio adjustment

Specifications:

• Brand: Kyosho
• Product Line: MINI-Z Racer
• Product Type: Chassis Set
• Part Number: 32895
• UPC: 4548565518463
• Chassis: MR-04EVO2 N-MM2
• Drive System: Rear-Wheel Drive
• Motor Type: Sensored Brushless
• Motor: KYOSHO SPEED HOUSE XSPEED 41
• Motor Rating: 4100KV
• Motor Mount: MM2
• Length: 120.6mm
• Width: 67–76mm
• Height: 35mm
• Wheelbase: 94mm / L
• Front Tread: 58.5–65mm
• Rear Tread: 61.5–65mm
• Front Tire Size: 25 x 8.5mm, sold separately
• Rear Tire Size: 25 x 8.5–11mm, sold separately
• Gear Ratios: 7.3:1, 6.3:1, 5.5:1 and 4.9:1
• Weight: Approximately 138g without body, wheels or tires

Package Includes:

• Factory-assembled MR-04EVO2 N-MM2 chassis
• Installed XSPEED 41 4100KV sensored brushless motor
• Front tread adjustment parts
• 6-tooth pinion gear
• 7-tooth pinion gear
• 8-tooth pinion gear
• 9-tooth pinion gear
• Wheel wrench
• Pinion gear tool
• Spare wheel nuts

Required for Completion:

• Compatible transmitter
• EVO or EVO2-compatible receiver unit
• Compatible MINI-Z Auto Scale body
• Compatible wheels and tires
• Four AAA batteries for the chassis
• Batteries for the transmitter

Important Information:

• This is not a complete Readyset.
• Body, wheels and tires are not included.
• Transmitter and receiver are not included.
• Gyro unit is not included.
• Batteries are not included.
• Printed instruction manual is not included.
