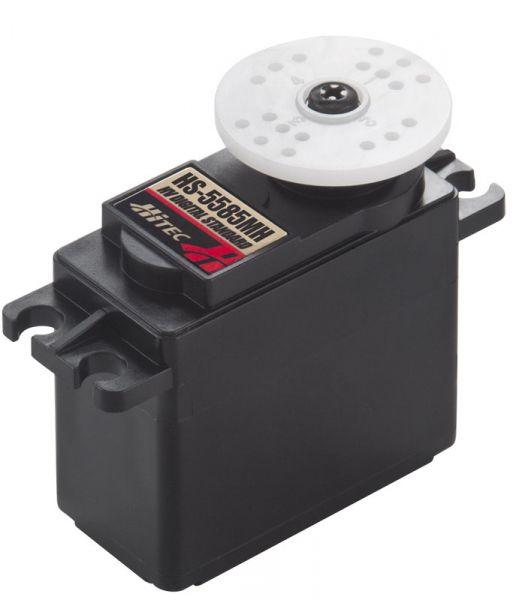

Hitec HS-5585MH Economical High Torque Digital Coreless Servo

Hitec HS-5585MH Economical High Torque Digital Coreless Servo

Increase your performance not your budget with the high voltage, high torque, digital HS-5585MH. Featuring a high performance coreless motor, heavy-duty metal gears and dual ball bearings, the HS-5565MH is rated for 7.4 volt, 2S LiPo operation. The HS-5585MH, supplies your 1/10th monster trucks to 1/8th scale buggies and truggies and high performance airplanes up to 35 percent with outstanding strength and precision.

Get all the muscle you need without straining your wallet! Hitec is proud to introduce our economical, premium digital, high voltage, coreless motor servos, the HS-5565MH

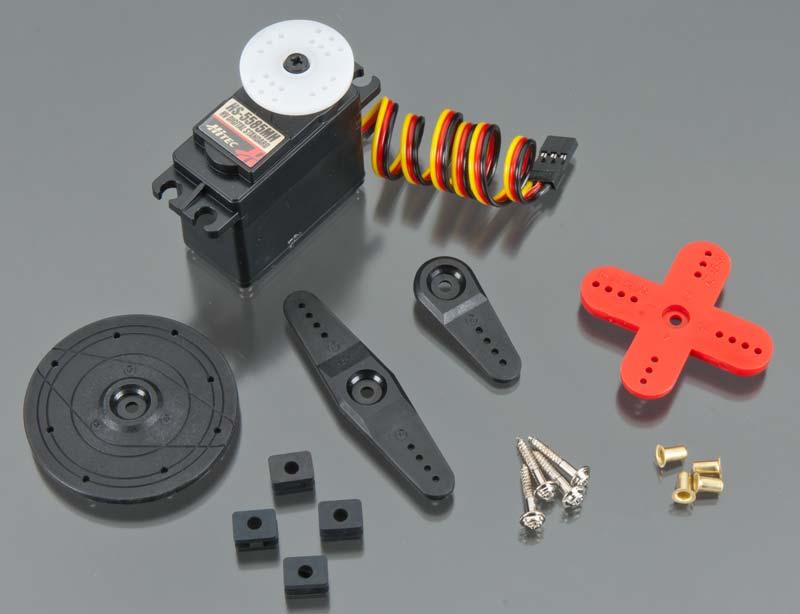

Includes:

• One Servo With Hardware

Specifications:

• Motor Type: Coreless Metal Brush
• Bearing Type: Dual Ball Bearings
• Speed (6.0V/7.4V): 0.17 / 0.14
• Torque oz./in. (6.0V/7.4V): 194 / 236
• Torque kg./cm. (6.0V/7.4V): 14 / 17
• Size in Inches: 1.57 x 0.78 x 1.49
• Size in Millimeters: 39.8 x 19.8 x 37.8
• Weight oz.: 2.10
• Weight g.: 60

Advanced Servo Specifications:

• Control System: Standrad HV Digital
• Operating Voltage Range: 6.0 - 7.4 Volts DC
• Operating Temperature Range: -4° - 140° Fahrenheit
• Idle Current: 4 mA
• No Load Running Current (6.0V/7.4V):
• Stall Current (6.0V/7.4V): 2100 / 2700 mA
• Dead Band Width: 2 µs
• Potentiometer Type: 4 Slider 1M Cycle
• Connector Wire Length: 11.8 in. / 300 mm.
• Connector Wire Gauge: 25 AWG
