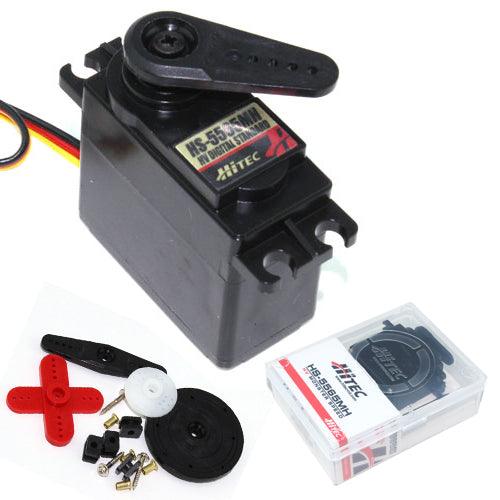

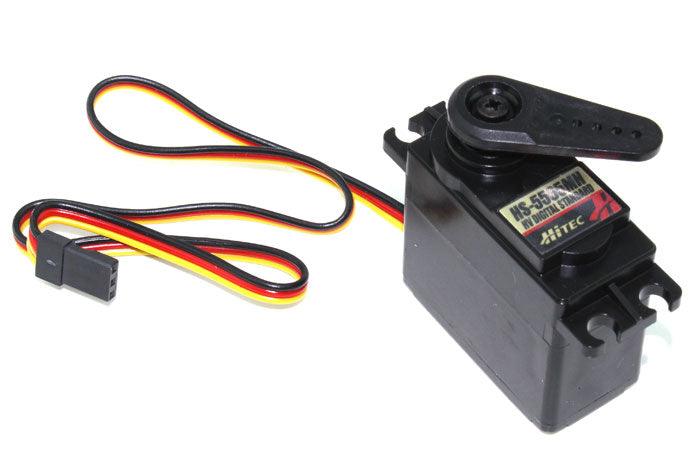

Hitec HS-5565MH Coreless High Voltage Metal Gear High Speed Digital Servo

Hitec HS-5565MH Coreless High Voltage Metal Gear High Speed Digital Servo

Description:

Increase your performance not your budget with the high voltage, high speed, digital HS-5565MH. Featuring a high performance coreless motor, heavy-duty metal gears and dual ball bearings, the HS-5565MH is rated for 7.4 volt, 2S LiPo operation The HS-5565MH brings lightning speed and acceleration to your 1/10th scale touring cars, buggies and short course vehicles, helicopters up to .90-size and sport to high performance aircraft up to 25 percent.

Get all the speed and muscle without straining your wallet! Hitec is proud to introduce our economical, premium digital, high voltage, coreless motor servos, the HS-5565MH

Includes:

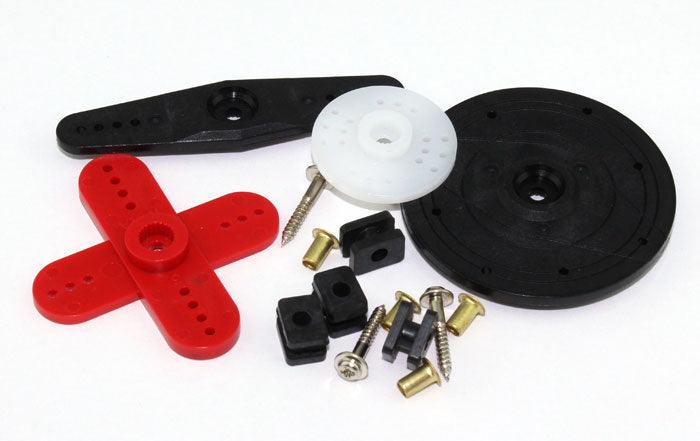

• One Servo w/ Hardware


Specifications:

• Motor Type: Coreless Metal Brush
• Bearing Type: Dual Ball Bearings
• Speed (6.0V/7.4V): 0.11 / 0.09 Seconds
• Torque oz./in. (6.0V/7.4V): 153 / 194
• Torque kg./cm. (6.0V/7.4V): 11 / 14
• Size in Inches: 1.57 x 0.78 x 1.49
• Size in Millimeters: 39.8 x 19.8 x 37.8
• Weight oz.: 2.10
• Weight g.: 60

Advanced Servo Specifications:

• Control System: Standard HV Digital Circuit
• Operating Voltage Range: 6.0 - 7.4 Volts DC
• Operating Temperature Range: -4° - 140° Fahrenheit
• Idle Current: 4 mA
• No Load Running Current (6.0V/7.4V):
• Stall Current (6.0V/7.4V): 2100 mA / 2700 mA
• Dead Band Width: 2 µs
• Potentiometer Type: 4 Slider 1M Cycle
• Connector Wire Length: 11.8 in / 300 mm
• Connector Wire Gauge: 25 AWG
