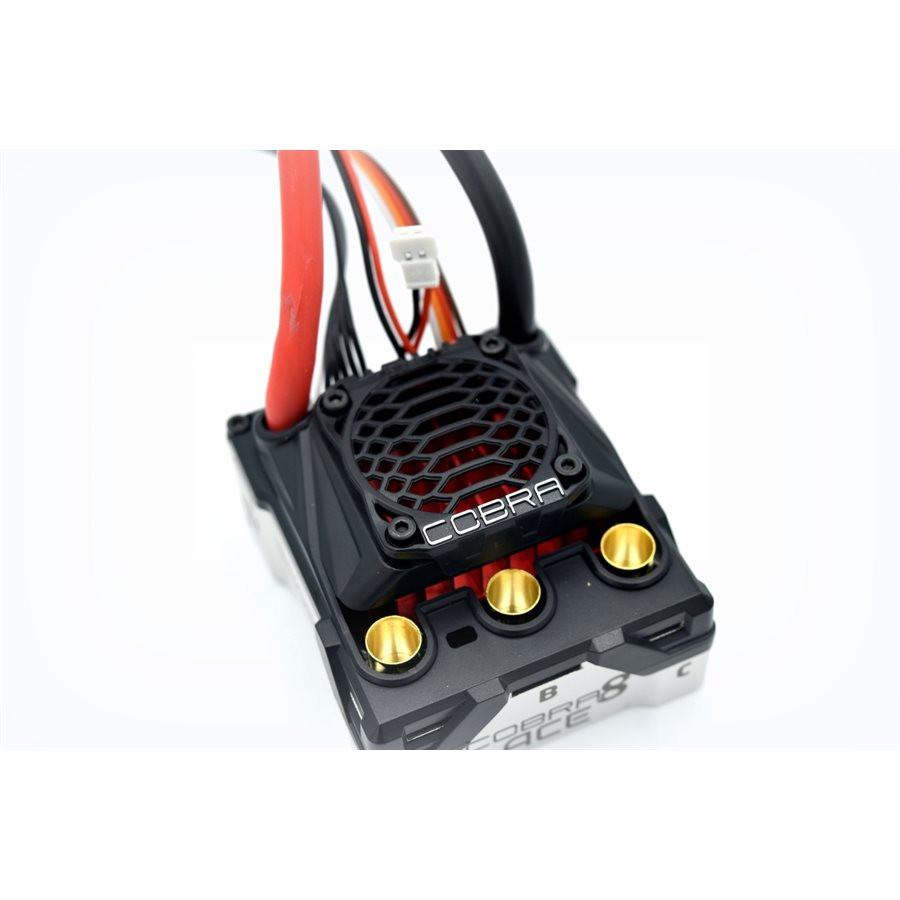

Ghost RC Cobra 8 ACE 1/10 No Prep Drag Brushless Sensored ESC 2-4S

Ghost RC Cobra 8 ACE 1/10 No Prep Drag Brushless Sensored ESC 2-4S

Castle is thrilled to partner with Ghost RC in releasing the Cobra 8 ACE. The Cobra 8 ACE is built on our Cobra 8 ESC but with enhanced drag racing features and beefed up to handle the extreme conditions of drag racing. It is engineered with cutting-edge technology tailored specifically for 1/10th Drag Racing vehicles.

NOTE: Castle Creations does not provide technical support or service on Ghost RC products. Please contact Ghost RC for any questions regarding their products.
Castle does not offer trade-ins for this product as it is not a Castle product.

FEATURES:

32-Bit Processing power for smoother motor control and improved response time.
Enhanced Data Logging includes:
Double the maximum sample frequency of older generations.
8x increased logging time of older generations.
Data point for ESC electrical motor timing.
Data point for acceleration via onboard accelerometer.
Looping feature prevents interruptions in data log recording.
Ability to download specific sessions.
Highly adjustable internal BEC. (5.0V - 8.0V adjustable in 0.1V increments)
Access to tuning options and firmware updates for free with Castle Link V4 USB programmer included with purchase. Now with USB-C connector! (Requires Windows 10 or higher)
Mounting holes located in bottom of aluminum case for installation into vehicle.
Additional Ghost RC specific features include:
Upgraded 8 Gauge battery wires
Enhanced Start Power
Increased tune-ability on how much power the ESC gives the motor to get off the line and out of the prep
Start Power Ramp Time - Allows users to adjust how quickly the start power ramps in on launch
Start Power Hold Time - Sets how long it holds the start power before moving into boost timing or programmed throttle mode
RPM Limiter
Allows users to set a maximum motor RPM, reducing rotor failures if driveline components fail.
Boost Timing
Increases motor timing up to 120° total timing (sensors required)
RPM Based or Throttle Percentage based modes
Turbo Timing
Additional timing that activates after Boost Timing, up to 120° total.
Adjustable activation point based on throttle percentage
Tunable rate of acceleration based on degrees per second.
Programmed Throttle Curve
Allows users to set a throttle curve that automatically engages at launch
Time based activation that engages at an adjustable throttle input
NOTE: Castle Creations does not provide technical support or service on Ghost RC products. Please contact Ghost RC for any questions regarding their products.

An external capacitor pack must be used with the Ghost RC Cobra 8 ACE. Failure to use an external capacitor pack will affect ESC performance and can lead to damage.

WARNING: This product is for advanced users in drag racing applications. Due to the aggressive and abusive nature of drag racing, this product is sold with no warranty.

MORE FEATURES:

Input Voltage Range 6.0v - 16.8v (2s - 4s LiPo)
SmartSense™, Sensored Only and Brushed Motor Operation Modes
Powerful Integrated 8A Peak Adjustable BEC (5.0V - 8.0V)
CRYO-DRIVE™ Technology minimizes the amount of time the ESC’s electrical components spend generating heat, resulting in improved thermal performance during partial throttle operation where the majority of driving occurs
ESC is housed in a rugged CNC aluminum case and potted in waterproof epoxy to  protect the electronics and promote efficient heat transfer
Premium forged heatsink with elliptical fins for superior air flow and increased heat dissipation
Waterproof design for all weather conditions
Data logging capability to capture and record performance data from your vehicle
Auxiliary wire functionality for "on-the-fly" adjustments using your transmitter
Audible alerts for easy diagnosis of common issues such as motor-over-temperature and low-voltage cutoff
Convenient transmitter programming for six common adjustable settings including cutoff voltage and drag brake
Includes Castle Link V4 USB adapter for Windows.
Ghost RC Cobra 8 ACE is proudly designed and manufactured in Olathe, KS USA

GHOST RC COBRA 8 ACE COMES WITH:

Ghost RC Cobra 8 ACE ESC
Castle Link V4 USB Adapter
300mm Direct Connect Sensor Wire
