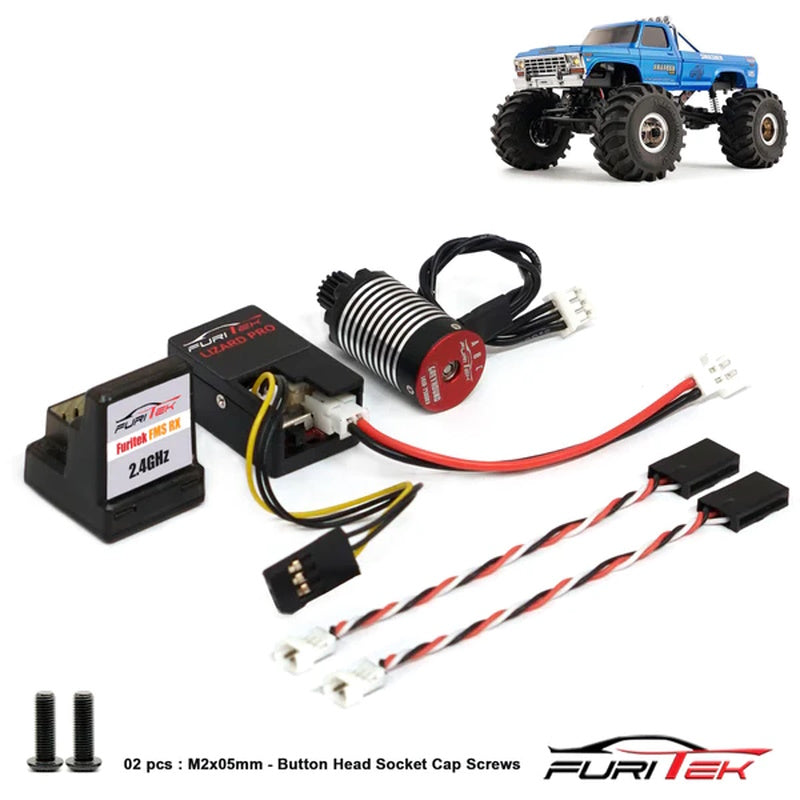

FURITEK FUR-2347 MONSTER BRUSHLESS POWER SYSTEM WITH RECEIVER FOR FCX24 SMASHER

FURITEK MONSTER BRUSHLESS POWER SYSTEM WITH RECEIVER FOR FMS FCX24 SMASHER

Introducing the Furitek MONSTER brushless power system for FMS FCX24 SMASHER, the system includes the FURITEK Greyhound 1410 7500kv with small size yet very powerful and fast, a Lizard Pro esc and a micro receiver that is compatible to the stock FMS FCX24 SMASHER radio. The motor is designed with high power for the monster truck with a special firmware from the Lizard Pro ESC. This power system is a complete drop-in combo for FMS FCX24 SMASHER allowing a new brushless upgrade setup without having to change a new radio system.
With Furitek FURICAR mobile phone app and Bluetooth module, users can set up any parameters on the run without touching the truck, creating seamless adjustments for your favorite settings.

Features:
- A small yet powerful GREYHOUND 1410 7500KV
- High performance and powerful 30A/50A brushless ESC with FOC technology
- Bluetooth module built-in for wireless connection
- Precision CNC steel pinion for long-lasting operation
- Offer a complete brushless upgrade system to work with FMS FCX24 SMASHER radio
- Lifetime FREE firmware upgrade!

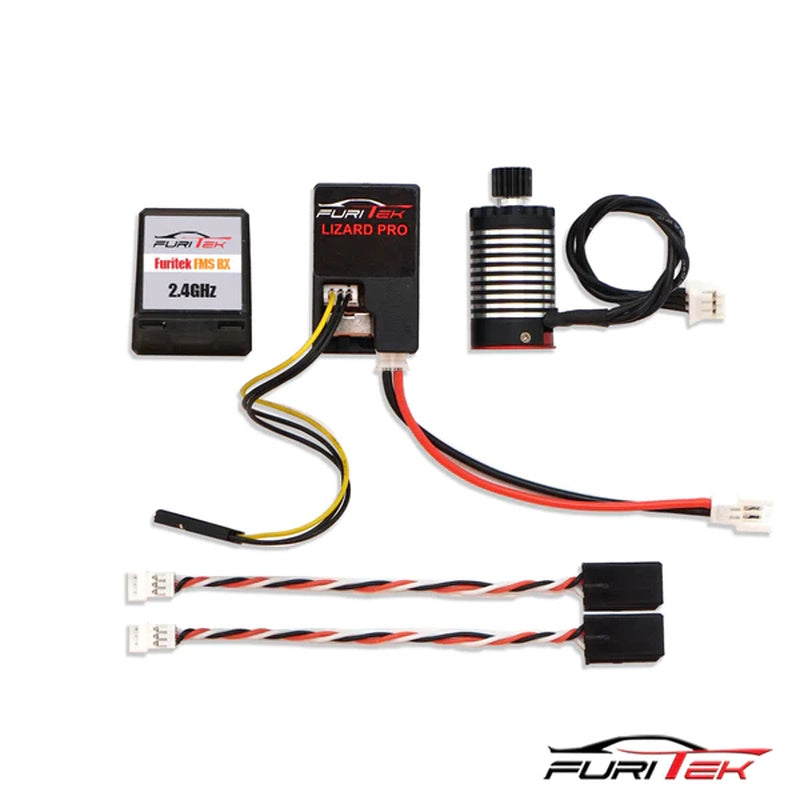

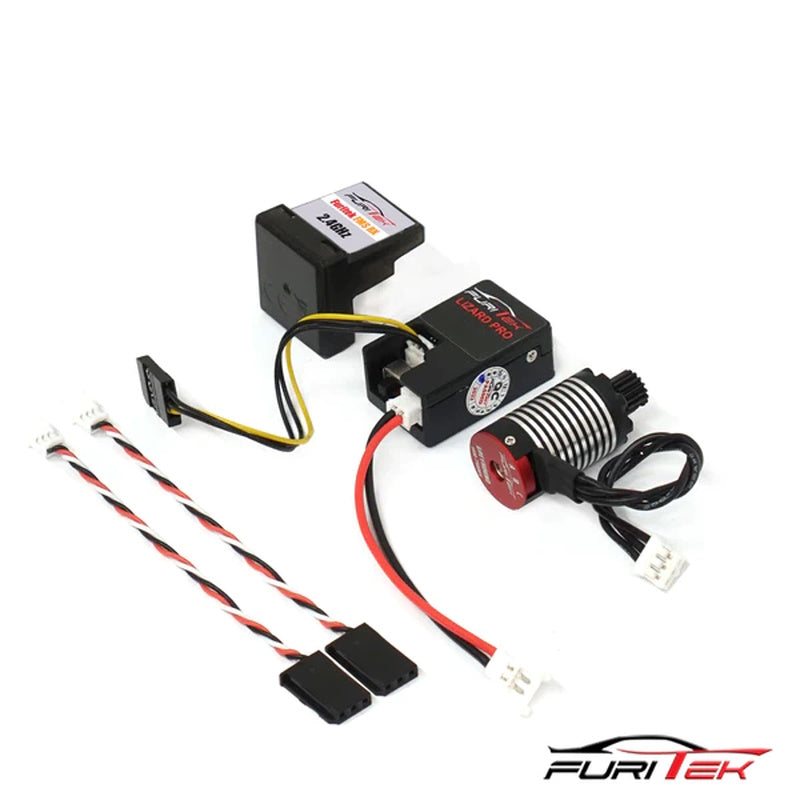

Package includes:
- 1 x LIZARD PRO 30A/50A BRUSHED/BRUSHLESS ESC FOR FCX24 SMASHER WITH FOC - TECHNOLOGY with enclosing plastic case
- 1 x built-in Bluetooth module
- 1 x GREYHOUND 1410 7500KV brushless motor
- 1 x CNC Steel Pinion
- 1 x micro receiver which is compatible to stock FMS FCX24 radio

Motor Features and Specs
Features:
- Super thin (0.2 mm) stator laminations---lower eddy losses---maximizes efficiency.
- Japansese NMB --High RPM ABEC5 bearings.
- Precision balanced rotor, smoothness for best reliability and maximum RPM.
- CNC machined 6061 T6 billet aluminum heatsink can.
- Precision engineered for maximum energy conversion.
- High purity and higher temperature single copper windings, lower copper losses,
very good heat dissipating, maximizes efficiency.

Specifications:
- KV (RPM/Motor) – 7500
- No-load current @7.4V – 0.3A
- Watt – 80W
- Battery – 2-3S
- Resistance – 0.7 Ohms
- Max Current – 9A
- Slot/Pole – 2P
- Motor size (mm) – 15.5x25
- Weight (g) – 17g

ESC Features and Specs
Features:
- Support sensorless brushless DC and brushed DC motor (config via app, default is brushless)
- FOC (Field-oriented control) technology
- Plug & Play designed for FMS FCX24 SMASHER monster truck
- 5V/ 6.5V 2.5A Built-in BEC (config via app)
- Support 2S-3S lipo battery
- Mini size and lightweight
- Super easy programming via App on both Android and IOS
- Firmware update available
- Real-time telemetry up to 10Hz
- Compatible with stock FCX24 SMASHER TX

Specifications:
- Support 2S-3S lipo battery
- BIG BEC: 5V or 6.5V 2.5A (No additional BECs necessary when using big Servos)
- Constant current: 30A
- Burst current: 50A
- Built-in power switch
- Built-in bluetooth module
- Dimension (mm): 28(L)x 15.5(W)
- Weight: 3.7 gram
