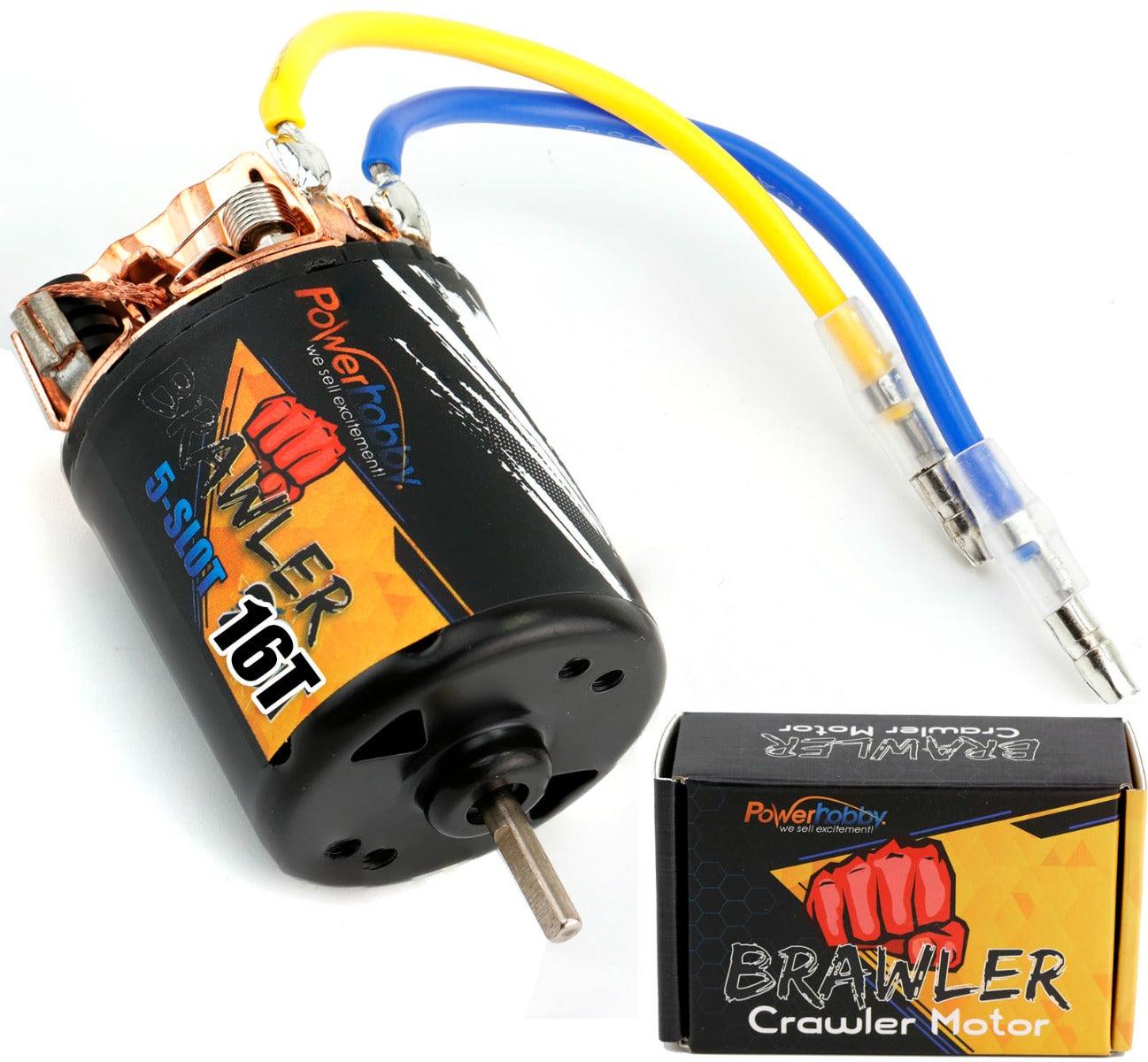

Powerhobby 540 5-Slot Brushed 16T Rock Crawler Motor
Description
The Powerhobby 540 5-Slot 16T Brushed Motor is designed to provide smooth, controlled power for compatible 1/10-scale RC rock crawlers and trail trucks.
Its five-slot armature delivers a smooth and predictable powerband for improved low-speed control when navigating steep climbs, rocks, and uneven terrain. High-purity copper windings help maximize efficiency, while strong magnets provide dependable torque and brushed-motor performance.
The motor also features oversized high-RPM bearings, a precision-balanced rotor, and direct-solder wiring tabs for flexible installation. The removable and replaceable rotor design allows easier maintenance and servicing.
Features
- 540-size brushed crawler motor
- Five-slot armature for smooth power delivery
- 16-turn winding
- Excellent low-speed control and torque
- High-purity copper windings
- High-strength motor magnets
- Precision-balanced rotor
- Oversized high-RPM bearings
- Removable and replaceable rotor
- Direct-solder wiring tabs
- Compatible with 2S LiPo batteries
- Compatible with 6–9-cell NiMH battery packs
- Designed for compatible 1/10-scale RC crawlers
Includes
- 1 Powerhobby 540 5-Slot 16T Brushed Motor
Specifications
- SKU: PHB5760
- UPC: 741030686535
- Motor Type: Brushed
- Motor Size: 540
- Armature Design: Five-Slot
- Motor Turns: 16T
- Rotation: Counterclockwise—CCW
- Shaft Diameter: 3.175mm
- Shaft Length: 12mm
- Shaft Size: 3.175 × 12mm
- Plugging Current: 62–96A
- Battery Compatibility: 2S LiPo
- NiMH Compatibility: 6–9 Cells
- Weight: 6.2 oz / approximately 176g
- Wiring Connection: Direct-Solder Tabs
Fits
Universal 1/10-scale RC crawler and trail-truck applications that accept a standard 540-size brushed motor.
Verify compatibility with:
- Motor-mount dimensions
- Pinion-gear bore and pitch
- Brushed ESC motor limit
- Battery voltage
- Gear ratio
- Available motor clearance
- Motor rotation direction
Installation Note
This motor requires a compatible brushed electronic speed control. Do not connect it to a brushless ESC unless the ESC is specifically designed to operate brushed motors.
The motor uses direct-solder tabs and does not include preinstalled motor connectors. Confirm correct wiring polarity before applying power. Reversing the motor wires will reverse its rotation direction.
Select a suitable pinion gear and monitor motor temperature during initial operation. Excessively tall gearing, drivetrain binding, or prolonged stalling can cause overheating and motor or ESC damage.
