Powerhobby MZ44 Programmable High Speed / Torque Digital Servo Mini-Z RWD

Powerhobby MZ44 Programmable High Speed / Torque Digital Servo Mini-Z RWD

• Description

  The Powerhobby MZ44 is a compact programmable digital servo designed for compatible Kyosho MINI-Z RWD vehicles and other 1/28-scale applications requiring its mounting dimensions and connector type.

  A high-precision titanium gear train, coreless motor, and fast-cooling aluminum case provide smooth, responsive steering performance. The programmable digital circuit allows compatible servo parameters to be adjusted for different racing and driving setups.

  Supporting 4.8V to 8.4V operation, the MZ44 delivers up to 41 oz-in of torque with a transit speed of 0.052 second per 60 degrees at 8.4V.

  Features

  • Designed for compatible MINI-Z RWD applications
  • Programmable digital servo circuit
  • High-precision titanium gears
  • High-quality coreless motor
  • Fast-cooling aluminum case
  • High-speed steering response
  • 4.8V–8.4V operating range
  • Compatible with high-voltage 2S power systems
  • Compact and lightweight construction

  Includes

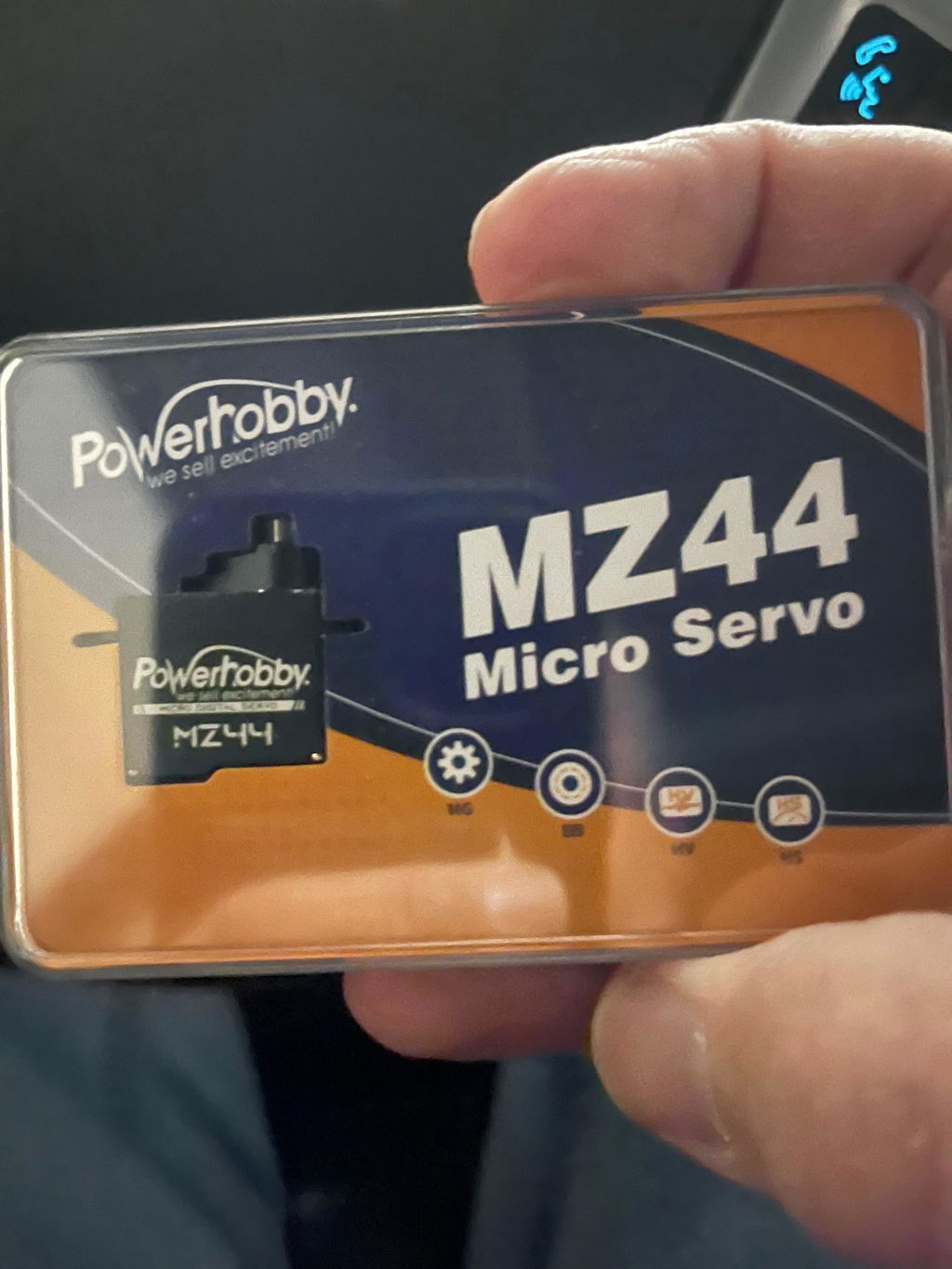

  • 1 Powerhobby MZ44 Programmable Digital Servo

  Specifications

  • SKU: PHBMZ44
  • UPC: 693037984162
  • Servo Type: Programmable Digital Micro Servo
  • Operating Voltage: 4.8V–8.4V
  • Speed at 4.8V: 0.075 sec/60°
  • Speed at 6.0V: 0.066 sec/60°
  • Speed at 7.4V: 0.058 sec/60°
  • Speed at 8.4V: 0.052 sec/60°
  • Torque at 4.8V: 1.8 kg-cm / 25 oz-in
  • Torque at 6.0V: 2.2 kg-cm / 30 oz-in
  • Torque at 7.4V: 2.6 kg-cm / 36 oz-in
  • Torque at 8.4V: 3.0 kg-cm / 41 oz-in
  • Gear Material: Titanium
  • Motor Type: Coreless
  • Case Material: Aluminum
  • Dimensions: 20 × 8 × 17.8mm
  • Dimensions in Inches: 0.78 × 0.31 × 0.70"
  • Weight: 7g
  • Connector: JST 1.5
  • Wire Length: 60mm
  • Wire Gauge: 28AWG

  Fits

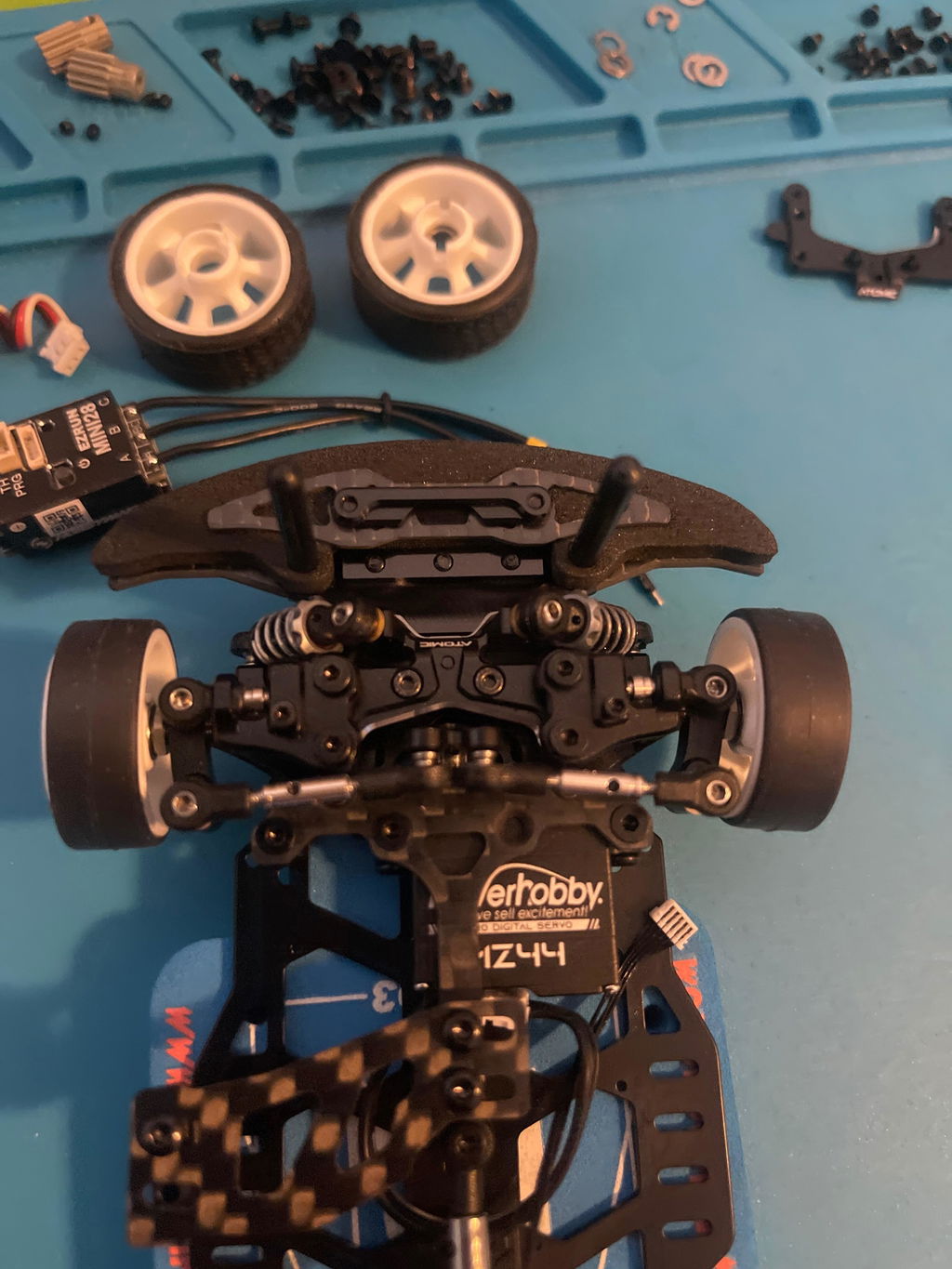

  • Compatible Kyosho MINI-Z RWD vehicles
  • Compatible 1/28-scale racing vehicles accepting a 20 × 8 × 17.8mm servo with a JST 1.5 connector

  Check the chassis model, servo dimensions, mounting arrangement, connector type, receiver voltage, servo horn, steering linkage, and programming-device compatibility before installation.
