Powerhobby 59MG Aluminum Digital Micro Servo for Traxxas TRX-4M
Description
The Powerhobby 59MG Servo and Mount Set is designed as a steering upgrade for the Traxxas TRX-4M. It combines the high-performance 59MG digital micro servo with a compatible aluminum servo mount and aluminum horn for a cleaner, stronger installation.
The servo features a full CNC-machined aluminum housing, a high-precision steel and titanium gear train, a coreless motor, and dual ball bearings for smooth, dependable steering performance.
Operating from 4.8V to 8.4V, the 59MG produces up to 95 oz-in of torque with a transit speed of 0.09 second per 60 degrees at 7.4V. The servo can also be programmed using a compatible Powerhobby USB programming device, sold separately.
Features
- Designed as a steering-servo upgrade for the Traxxas TRX-4M
- Includes a compatible aluminum servo mount and horn
- High-performance programmable digital micro servo
- High-precision steel and titanium gears
- High-quality coreless motor
- Dual ball-bearing support
- Full CNC-machined aluminum servo housing
- High-voltage 4.8V–8.4V operating range
- Up to 95 oz-in of torque
- Compact and lightweight construction
- Programmable with a compatible Powerhobby USB device

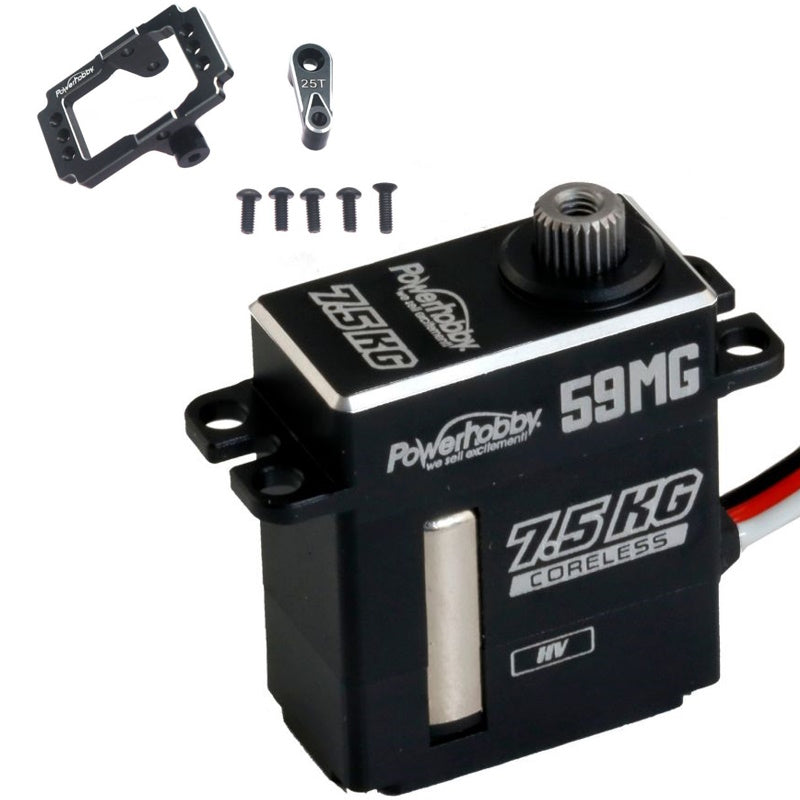

Includes

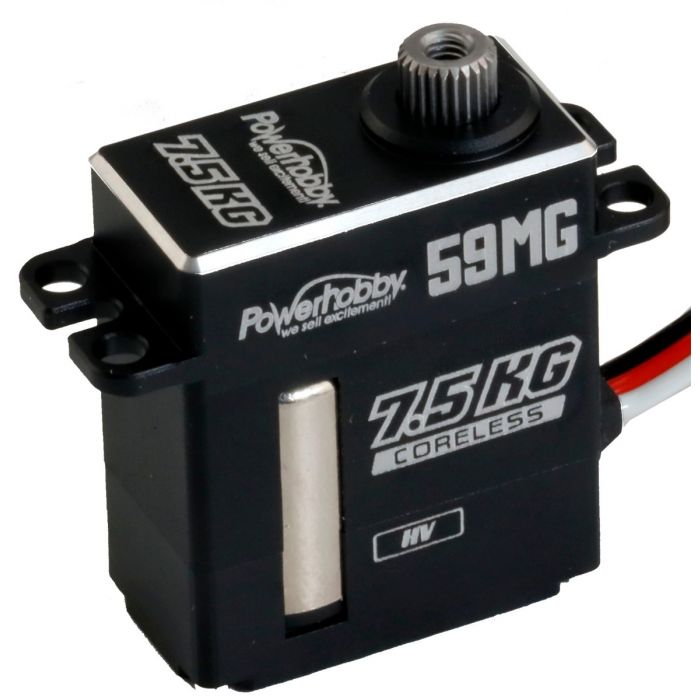

- 1 Powerhobby 59MG Digital Micro Servo

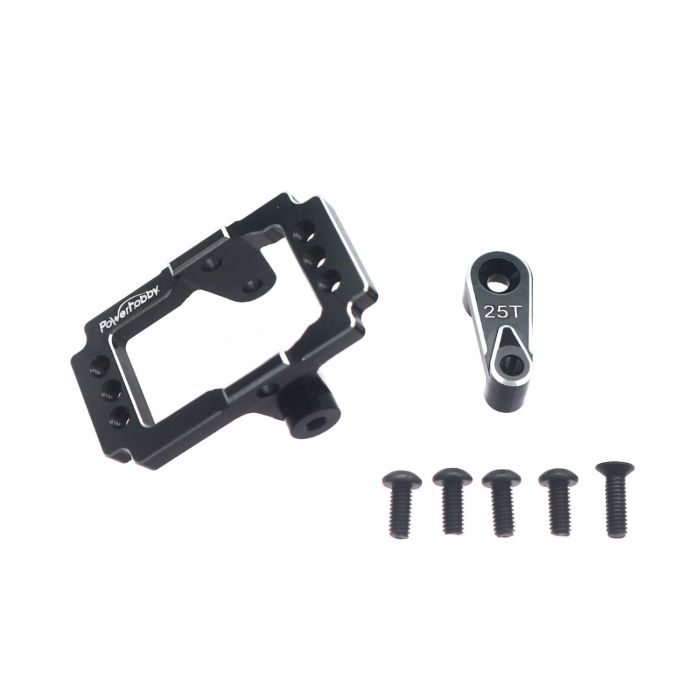

- 1 Powerhobby Aluminum TRX-4M Servo Mount
- 1 Aluminum Servo Horn
- Mounting Hardware
Specifications
- SKU: PHB5700 + 59MG
- UPC: Does Not Apply
- Servo Type: Programmable Digital Micro Servo
- Operating Voltage: 4.8V–8.4V
- Speed at 4.8V: 0.13 sec/60°
- Speed at 6.0V: 0.11 sec/60°
- Speed at 7.4V: 0.09 sec/60°
- Torque at 4.8V: 5.0 kg-cm / 70 oz-in
- Torque at 6.0V: 5.8 kg-cm / 80 oz-in
- Torque at 7.4V: 6.8 kg-cm / 95 oz-in
- Motor Type: Coreless
- Gear Material: Steel and Titanium
- Bearings: Dual Ball Bearing
- Case Material: CNC-Machined Aluminum
- Servo Dimensions: 23 × 12 × 27.5mm
- Servo Dimensions in Inches: 0.90 × 0.47 × 1.08"
- Servo Weight: 20g
- Programmable: Yes—compatible Powerhobby USB programmer required
Fits
- Traxxas TRX-4M
Check the receiver or BEC output voltage, steering-linkage adjustment, servo-horn position, endpoint settings, and available clearance before installation. Set the steering endpoints carefully to prevent binding or servo damage.
