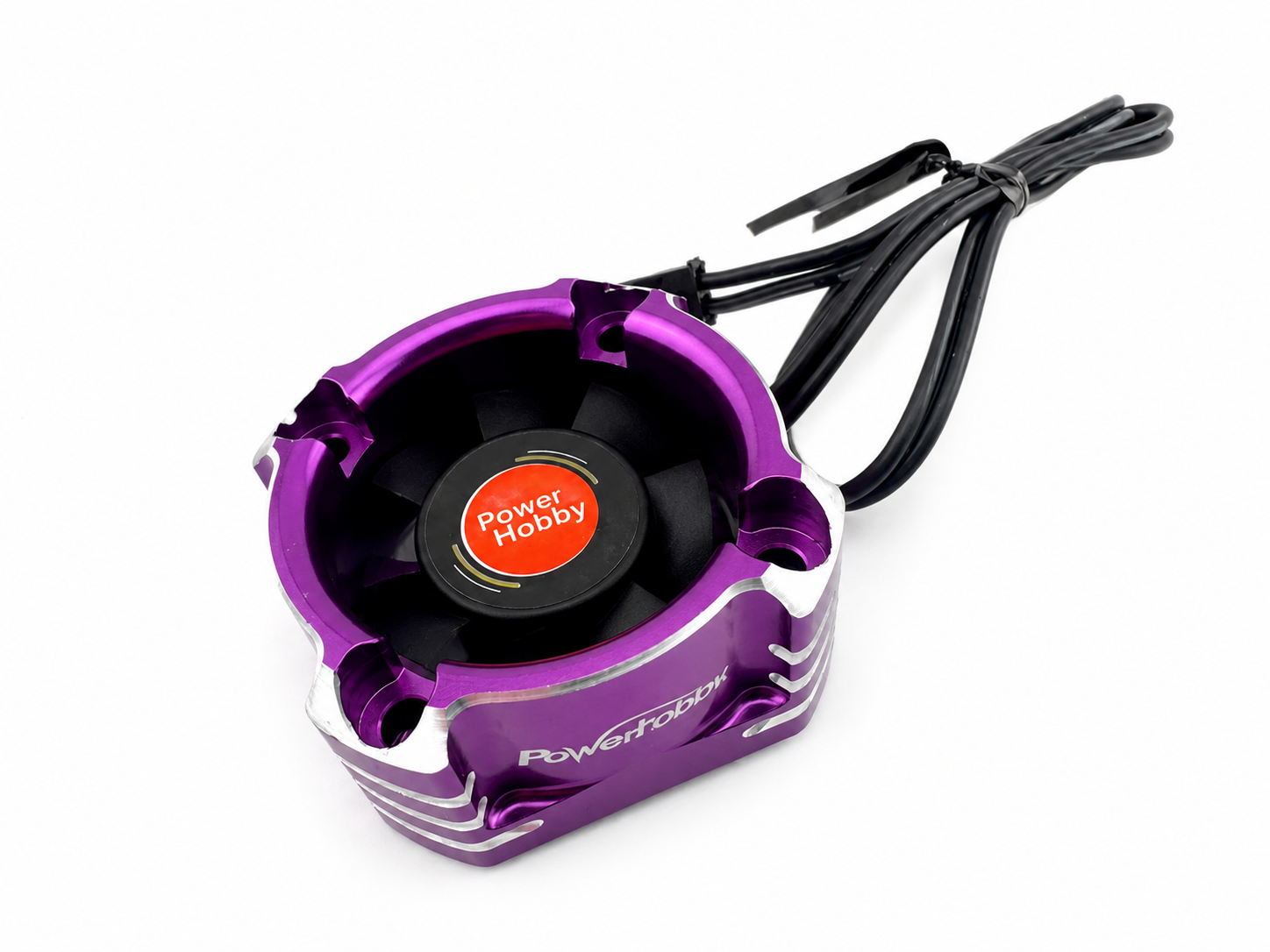

Powerhobby Booster 30x30 High Speed Aluminum RC Cooling Fan 30mm 28K Purple

Powerhobby 30mm Aluminum Tornado Booster High Speed HV Cooling Fan

• Description

  Help keep your RC motor, electronic speed controller, or other electronic components operating at a more controlled temperature with the PowerHobby Booster 30mm High-Speed Aluminum Cooling Fan. Its compact size and high-speed design make it an excellent cooling upgrade for RC vehicles where installation space is limited but strong airflow is still required.

  The fan produces approximately 28,000 RPM when operated at 8.5V, helping direct cooling air toward the motor, ESC, or heatsink during racing, drifting, crawling, speed runs, off-road bashing, and extended driving sessions. Additional airflow can help reduce heat buildup and maintain more consistent electronic performance during demanding use.

  The full T6 aluminum housing gives the fan a strong, upgraded construction while also providing additional surface area around the fan. When mounted directly to a compatible motor mount, ESC bracket, or heatsink, the aluminum housing can help draw heat away from the installation area.

  The aluminum casing also helps protect the fan blades from light debris and accidental contact. Its compact 30 × 30 × 10mm dimensions make it suitable for many 1/12, 1/10, 1/8, and 1/5-scale RC applications. The purple aluminum finish adds a clean custom appearance to your electronics setup.

  Features

  • High-speed 30mm cooling fan for RC motors and ESCs
  • Produces approximately 28,000 RPM at 8.5V
  • Helps direct cooling airflow toward hot electronic components
  • Compact size works well in tight chassis layouts
  • Full T6 aluminum heatsink-style housing
  • Aluminum housing provides additional heat-dissipating surface area
  • Aluminum casing helps protect the fan blades
  • Wide 5V to 8.5V operating-voltage range
  • Compatible with properly regulated 2S and 2S HV power systems
  • JST plug provides a convenient power connection
  • Long 180mm wire allows flexible positioning and cable routing
  • Lightweight construction weighs approximately 13 grams
  • Suitable for motor, ESC, heatsink, and custom electronics cooling
  • Ideal for racing, drifting, crawling, bashing, and speed-run applications
  • Universal design for many 1/12 through 1/5-scale RC vehicles
  • Purple aluminum finish adds a custom upgraded appearance

  Specifications

  • Product Type: High-speed aluminum RC cooling fan
  • Fan Dimensions: 30 × 30 × 10mm
  • Fan Speed: Approximately 28,000 RPM at 8.5V
  • Operating Voltage: 5V–8.5V
  • Current Draw: Approximately 0.45A
  • Wire Length: Approximately 180mm
  • Connector: JST plug
  • Weight: Approximately 13g
  • Housing Material: T6 aluminum
  • Color: Purple
  • Application: Motor, ESC, heatsink, or electronics cooling
  • Part Number: PHF3033-Purple

  Includes

  • 1 PowerHobby Booster 30mm High-Speed Aluminum RC Cooling Fan – Purple

  Fan mounts, motor heatsinks, ESC brackets, adapters, extension wires, and additional installation hardware are not included unless specifically shown or stated.

  Fitment

  This is a universal-fit 30mm cooling fan designed for RC vehicles with sufficient installation space and a compatible fan mount, ESC bracket, motor heatsink, or custom mounting location.

  Possible applications include:

  • 1/12-scale RC cars
  • 1/10-scale touring cars
  • 1/10-scale drift cars
  • 1/10-scale buggies
  • 1/10-scale stadium trucks
  • 1/10-scale short-course trucks
  • 1/10-scale monster trucks
  • 1/8-scale buggies and truggies
  • 1/8-scale monster trucks
  • 1/7-scale speed-run vehicles
  • 1/5-scale electric RC vehicles
  • Brushless motor cooling systems
  • Electronic speed controller cooling systems
  • Custom RC electronics installations

  Fitment depends on the available mounting space, fan-mounting pattern, connector type, and power source. Before ordering, measure the intended installation area and verify that the 30 × 30 × 10mm fan will fit without contacting the vehicle body, battery, motor wires, drivetrain, or suspension components.

  Installation Notes

  Disconnect the vehicle battery before installing or servicing the cooling fan. Secure the fan to a compatible motor mount, heatsink, ESC bracket, or custom mounting location.

  Position the fan so airflow is directed toward the motor, ESC, heatsink, or electronic component that requires cooling. Make sure the intake and exhaust sides are not blocked by the body, battery tray, wiring, or nearby electronics.

  Route the 180mm wire away from the motor shaft, pinion gear, spur gear, driveshafts, suspension components, and other moving parts. Secure loose wiring with cable ties or clips before operating the vehicle.

  Connect the JST plug only to a compatible regulated power source between 5V and 8.5V. Verify the connector type, polarity, voltage, and available current before applying power. Do not connect the fan directly to a power source exceeding 8.5V.
