Description

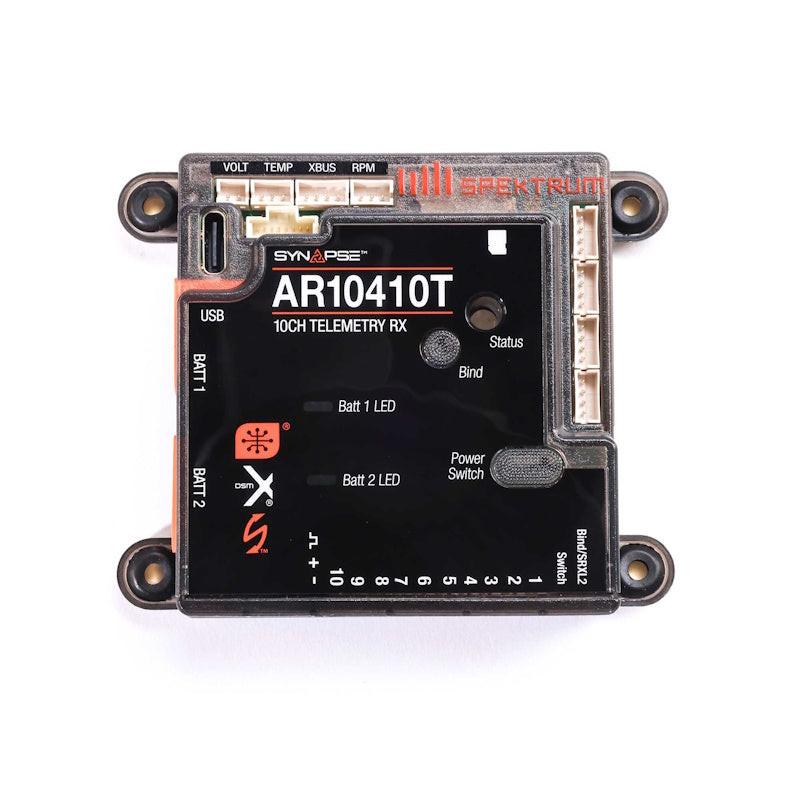

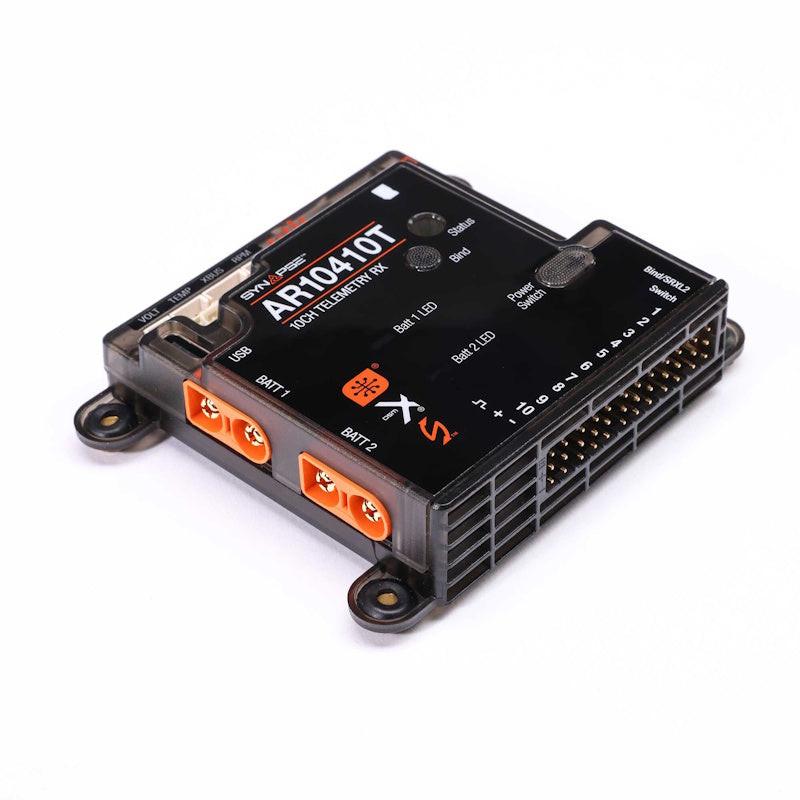

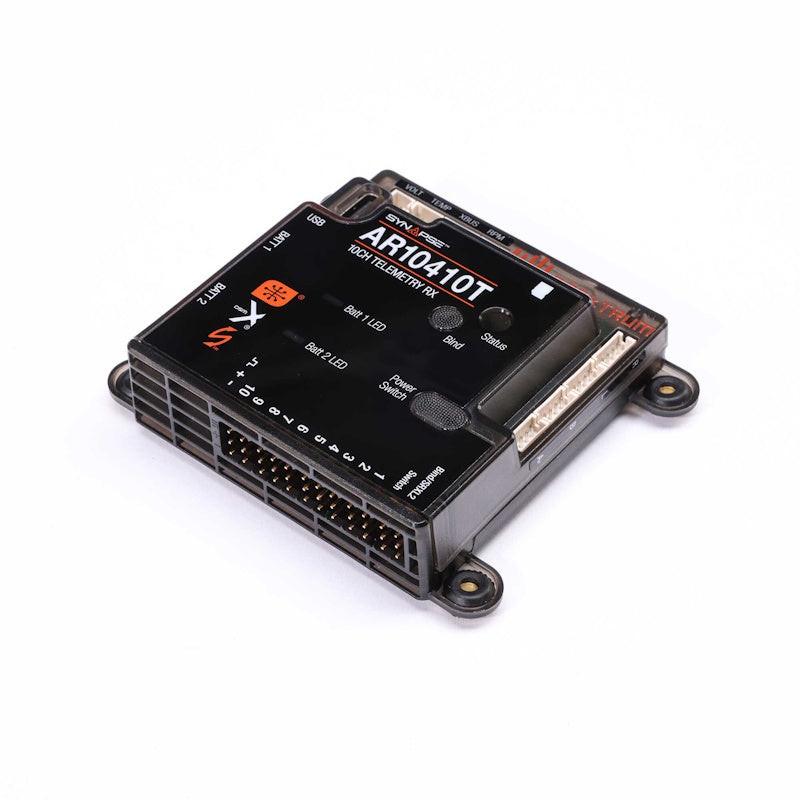

Spektrum SPMAR10410T AR10410T 10-Channel PowerSafe Telemetry Receiver.
Spektrum AR10410T 10-Channel PowerSafe Telemetry Receiver Features
Compatible with the Synapse™ AS3X+/SAFE Flight Stabilization Module (SPMAS6000, not included)

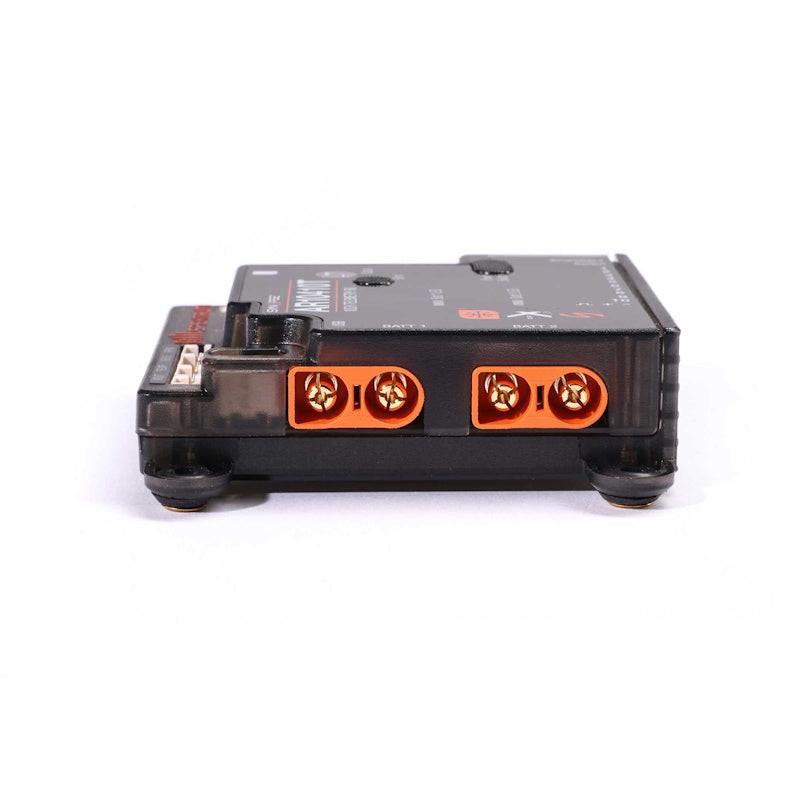

Patented PowerSafe™ redundancy system with dual IC3 connectors. Perfect for power hungry aircraft and high current servo applications drawing up to 35A (50A max burst)
Forward programming allows for easy adjustments to failsafe settings, servo frame rate settings and more
Innovative power management system designed with sleep mode allowing pilots to remotely power on/off from the transmitter
Regenerative servo support for any number of servos
USB-C port for easy product registration and firmware updates
12V capable for use with 12-volt servo applications (must be activated via Forward Programming)
Integrated battery capacity monitor automatically reports the battery capacity used during flight and can reset automatically when fully charged batteries are installed
Integrated Black Box telemetry log saves all telemetry data automatically when a Micro SD card is installed (Micro SD card not included) Integrated status LED provides helpful information during start up, warnings and mode indicators
Ready to use with Spektrum Smart ESC for one-wire telemetry data without the need of modules, links and wires
Receiver pack energy & voltage sensor and flight log telemetry data available without the need for additional sensors
Full range telemetry with integrated barometer to provide altitude and vario telemetry without additional modules
Included Soft Switch allows servo current to be routed around the switch, so if the switch fails for any reason, power to the system will not be interrupted
Rubber grommet hard mounts and minimalistic labeling helps produce the cleanest model setups
Capable of high-speed 11ms frame rates
Binding is easier than ever with four options to initiate the bind process
Integrated telemetry with built-in ports for RPM, flight pack voltage, temperature sensors and X-bus for telemetry sensor expansion
Specifications:
Application
Air
Band
2.4GHz
Bind Method
Bind Button, Bind Plug
Channels
10
Data Port
Yes
Failsafe
Yes
Flight Log Compatible
Yes
Input Voltage
3.5-12.6V
Modulation
DSMX/DSM2
Product Height
0.71" (18 mm)
Product Length
2.6" (66 mm)
Product Weight
1.9oz (54g)
Product Width
2.4" (61 mm)
Programmable
Yes
Range
Full
Remote Receiver Ports
4
Resolution
2048
Serial Out
SRXL2
Technology
AS3X+
Telemetry
Yes
