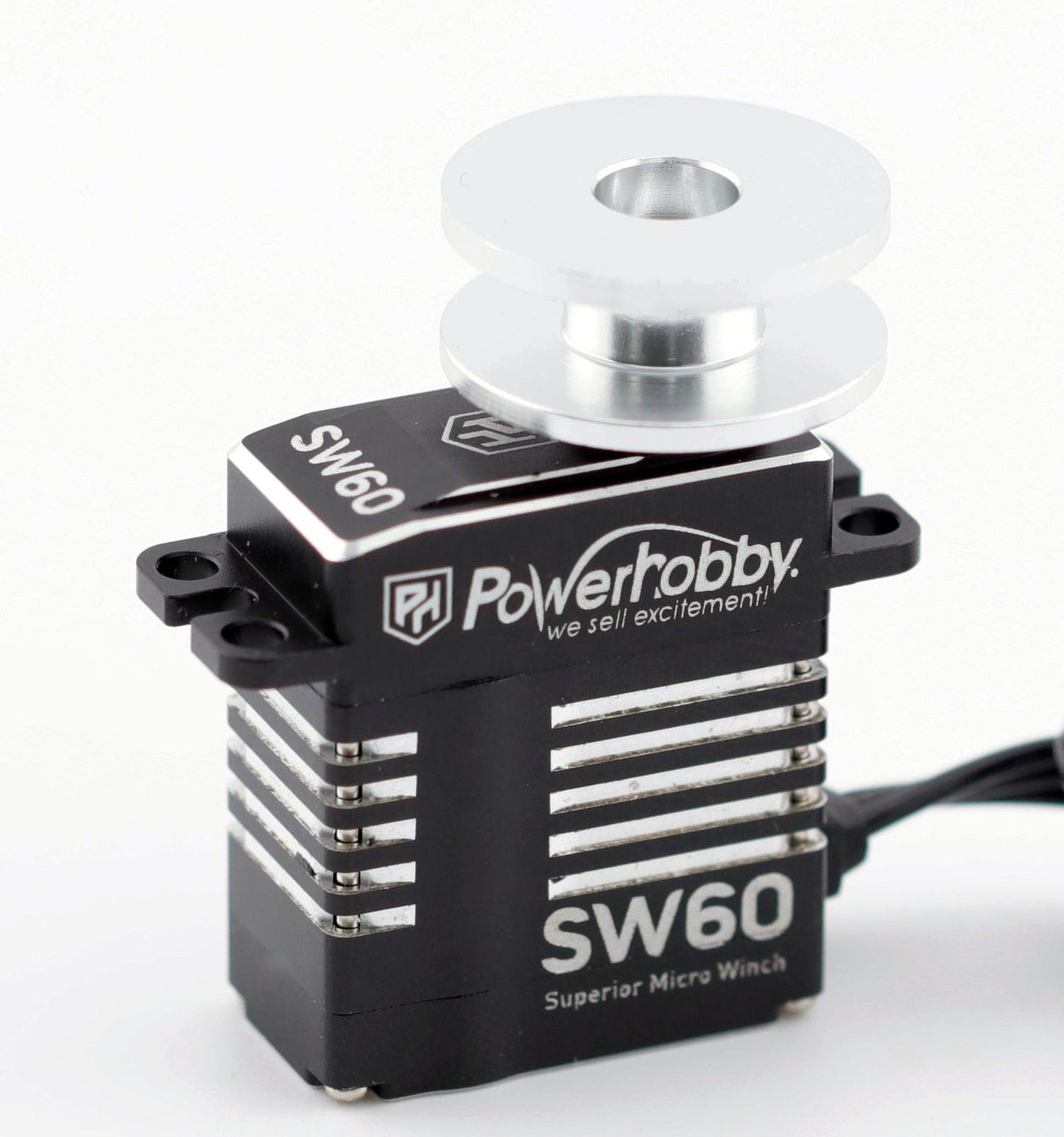

Powerhobby SW60 High Torque Superior Micro Winch Servo
Description
The Powerhobby SW60 is a high-torque micro winch servo designed for compatible 1/18 and 1/24-scale RC crawlers. Its compact size provides strong pulling power while requiring less mounting space than a standard-size winch servo.
The SW60 features a custom oversized brushless motor, heavy-duty stainless-steel gears, dual ball bearings, and an aluminum case for dependable operation under demanding crawler conditions. Its IP65 water-resistant construction provides added protection against dust, splashes, and damp trail conditions.
Supporting 4.8V to 8.4V operation, the SW60 produces up to 205 oz-in of torque at 8.4V. The included aluminum winch spool, line, and scale recovery hook provide the main components needed for a custom micro crawler winch installation.
Features
- High-torque micro winch servo
- Designed for compatible 1/18 and 1/24-scale crawlers
- Custom oversized brushless motor
- Heavy-duty stainless-steel gears
- CNC aluminum servo case
- Dual ball-bearing support
- IP65 water-resistant construction
- High-voltage 4.8V–8.4V operating range
- Standard 25-tooth output spline
- Up to 205 oz-in of torque
- Aluminum winch spool
- Scale recovery hook and winch line included

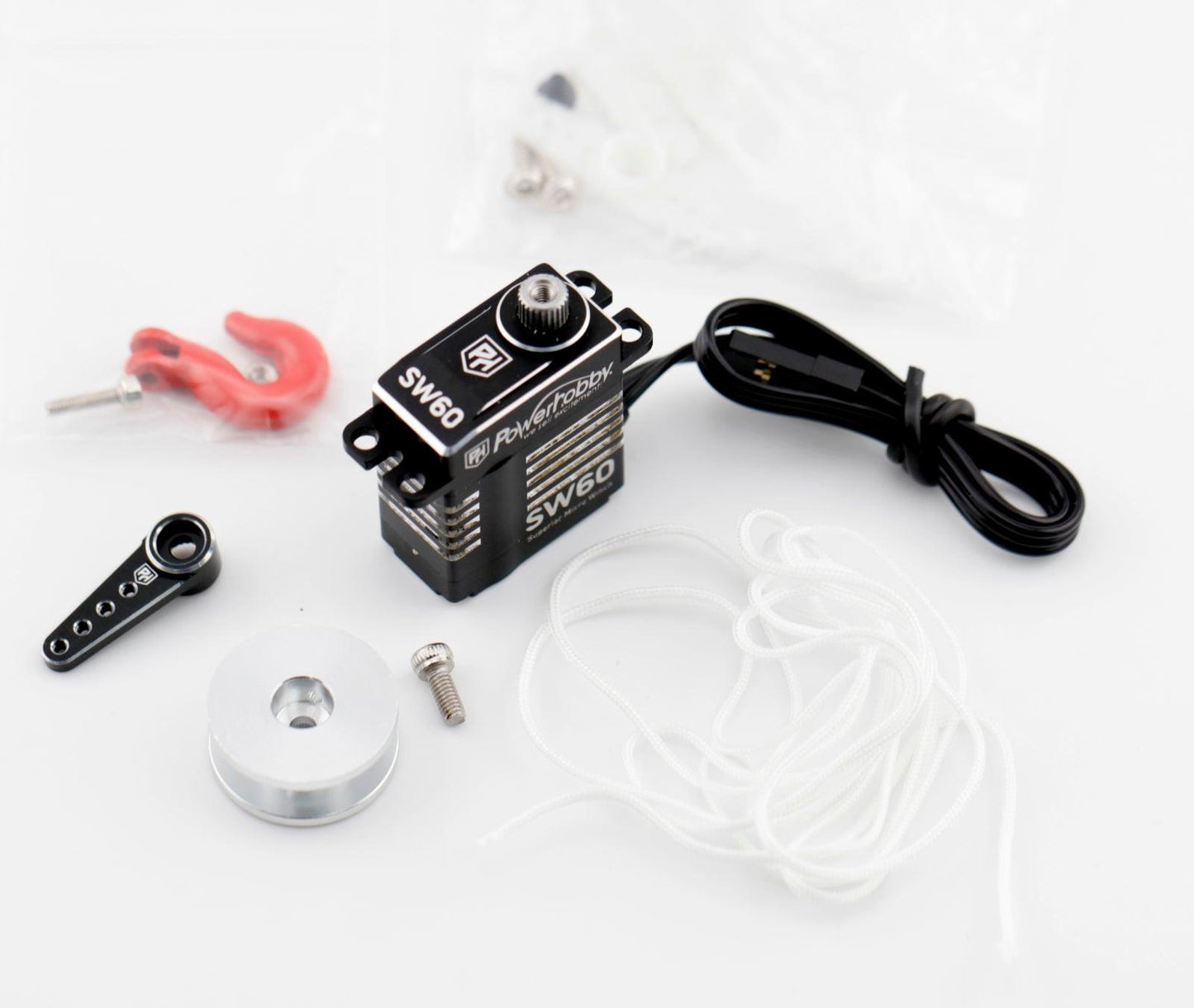

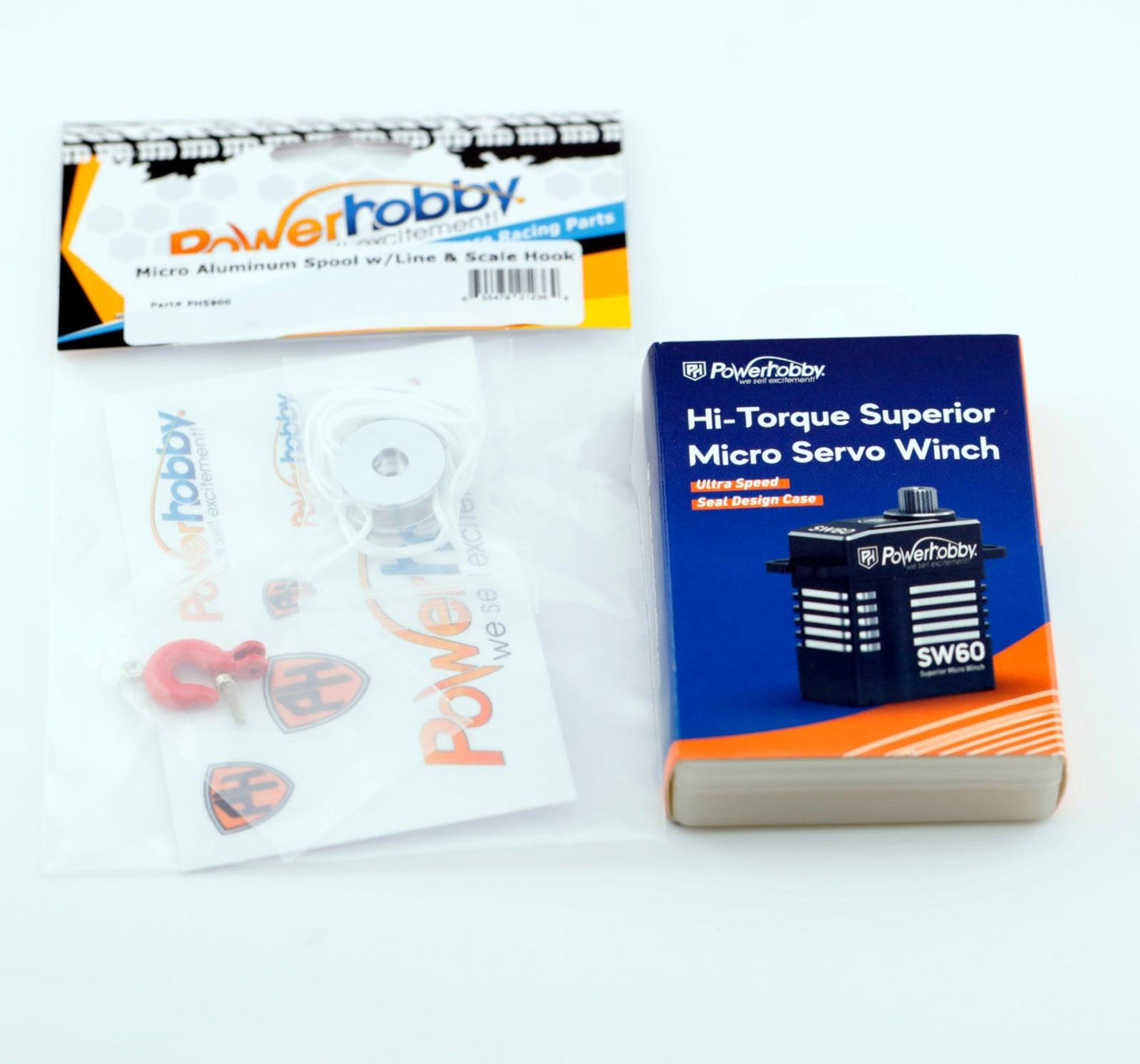

Includes
- 1 Powerhobby SW60 Micro Winch Servo
- 1 Aluminum Winch Spool
- 1 Winch Line
- 1 Scale Recovery Hook
- 1 Aluminum Servo Horn
- Mounting Hardware
Specifications
- SKU: PHB7500 + PHB5900
- Barcode: 69038948972
- Servo Type: Micro Winch Servo
- Operating Voltage: 4.8V–8.4V
- Speed at 4.8V: 0.093 sec/60°
- Speed at 6.0V: 0.075 sec/60°
- Speed at 7.4V: 0.062 sec/60°
- Speed at 8.4V: 0.059 sec/60°
- Torque at 4.8V: 9.0 kg-cm / 125 oz-in
- Torque at 6.0V: 10.9 kg-cm / 151 oz-in
- Torque at 7.4V: 12.8 kg-cm / 177 oz-in
- Torque at 8.4V: 14.8 kg-cm / 205 oz-in
- Motor Type: Brushless
- Gear Material: Stainless Steel
- Bearings: Dual Ball Bearing
- Case Material: Aluminum
- Output Spline: 25T
- Water Resistance: IP65
- Dimensions: 23 × 12.6 × 27mm
- Connector: JR
- Wire: 26AWG
- Wire Length: 180mm
Fits
Suitable for compatible applications including:
- 1/18-scale RC crawlers
- 1/24-scale RC crawlers
- Custom micro crawler winch installations
- Other models accepting a 23 × 12.6 × 27mm servo with a 25T spline
Check the available mounting space, mounting-hole spacing, receiver or BEC voltage, connector type, spool clearance, line routing, and winch-control compatibility before installation. IP65 means water resistant, not fully waterproof or suitable for submersion.
