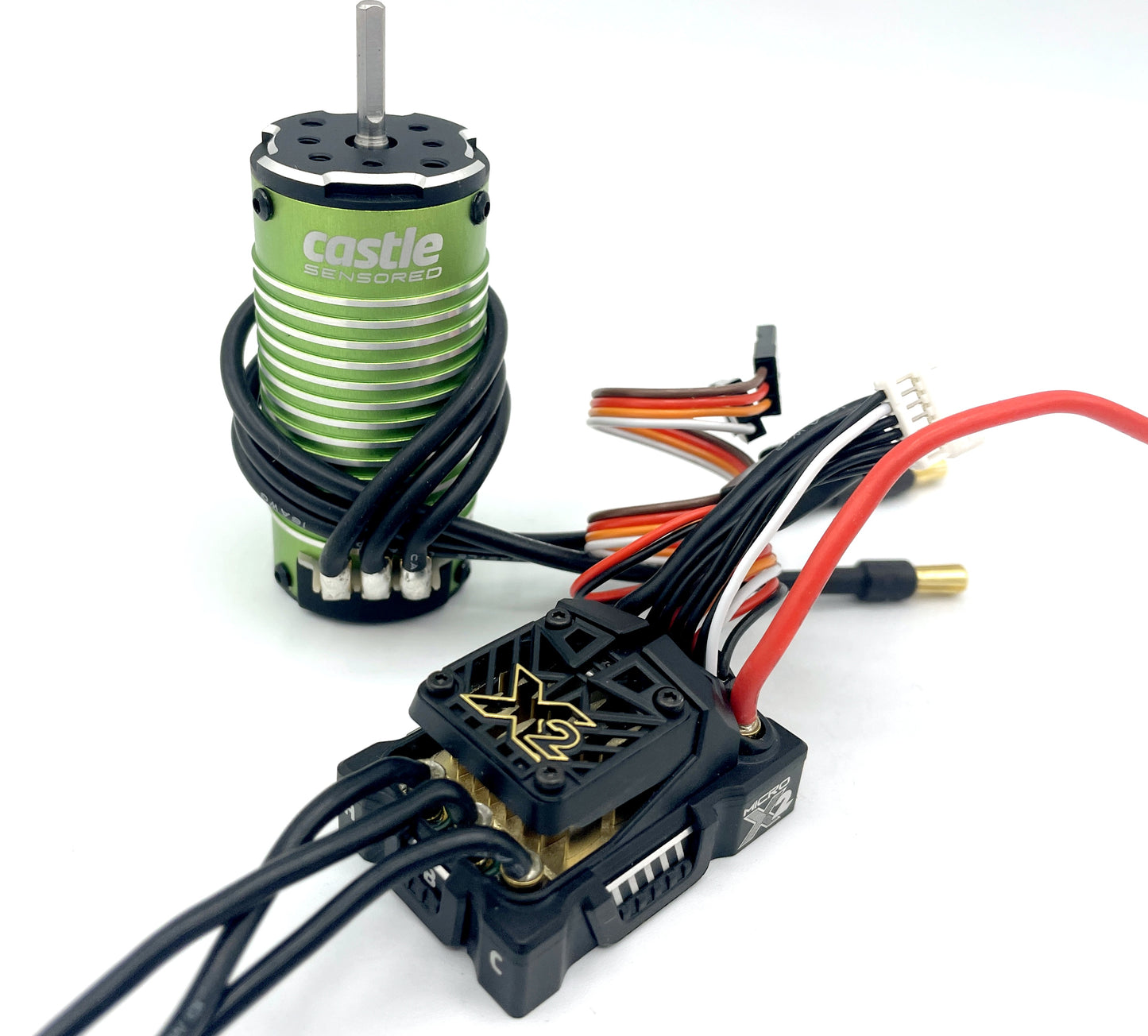

Castle Mamba Micro X2 WP ESC with 1010-4400kV Sensored Motor Combo

Castle Mamba Micro X2 WP ESC with 1010-4400kV Sensored Motor Combo

The Mamba Micro X2 is a refresh of our popular Mamba Micro X. This new ESC increases the maximum input voltage to 4s. We also added DATA LOGGING and our CRYO-DRIVE(TM) TECHNOLOGY; CryoDrive allows the ESC to run cooler and more efficiently at partial throttle. Like its predecessor, it is waterproof* and has SENSORED MOTOR SUPPORT.

This ESC and Motor Combo is ideal for 1/14th and 1/16th scale vehicles, weighing up to 3lbs and up to 4s LiPo. The sensored 1010-4400kv motor allows for smooth startup with heaps of torque and low temperatures.

Mamba Micro X2 w/1010-4400kV Purchase Includes:

Mamba Micro X2 ESC with 4mm Connectors
External 10-amp CC BEC
1010-4400Kv Sensored Motor
Sensor Harness
Coupon for free Castle Link USB adapter or discounted B-Link Bluetooth adapter
Quick Start Guide
Castle Decals
Features:

Input Voltage range 2S-4S.
Waterproof design, included CC BEC is not waterproof.
Sensored Motor capable
Convenient transmitter programming for six common adjustable settings.
Additional settings and software updates available via Windows(R)-based Castle Link software and USB adapter (coupon included with purchase) or the Castle Link App and a B-LINK Bluetooth Adapter (discount coupon included)
Telemetry Ready (Compatible with S.BUS2 Telemetry Link and Futaba T4PX, T7PX and T7PXR transmitters)
Auxiliary Wire Functionality allows for "on-the-fly" adjustments such as Max Power and Max Brake.
Audible Alerts that will notify you of possible issues with calibrations and error conditions.
Designed and manufactured in Olathe, Kansas and is backed by Castle Creations' 1-year warranty.
Size (L x W x H): 41.6 mm x 29.4 mm x 21.3 mm (1.64" x 1.16" x .84")
Weight (with wires): 1.66 oz / 47 grams
Connectors: 4.0 mm bullets
ESC Specifications:

Input Voltage Range: 2S-4S LiPo (16.8V Max)
BEC Specifications: No internal BEC in ESC. External 10-amp CC BEC Included.
Operating Environment: Waterproof* design allows for use in nearly any environment; included CC BEC is not waterproof.
Brake: Proportional
Reversible: Yes, but may be disabled
On/Off Switch: Yes, waterproof
Cooling Fan: Coming soon, uses 25mm size fan
Size (L x W x H): 41.6 mm x 29.4 mm x 21.3 mm (1.64" x 1.16" x .84")
Weight (with wires): 1.66 oz / 47 grams
Connectors: 4.0 mm bullets
Motor Specifications:

Input Voltage Range: 2S-4S LiPo
kV: 4400
Max. RPM: 80,000
Size: Length: 59.5mm
Diameter: 28.25mm
Weight (w/wires): 5.17oz (46.5g)
Shaft Size: Length: 15mm Diameter: 1/8" (3.17mm)
Mounting Hole Specifications: M2.5 @ 14mm & 16mm; M3 @ 19mm
Connectors: 4mm male Castle Bullet Connectors attached to replaceable 16 gauge wire; includes 210mm length sensored wire.
Application Guidelines: Ideal for 1/14th and 1/16 vehicles weighing up to 3lbs and up to 4s LiPo
Max. Recommended Vehicle Weight: 3lbs
