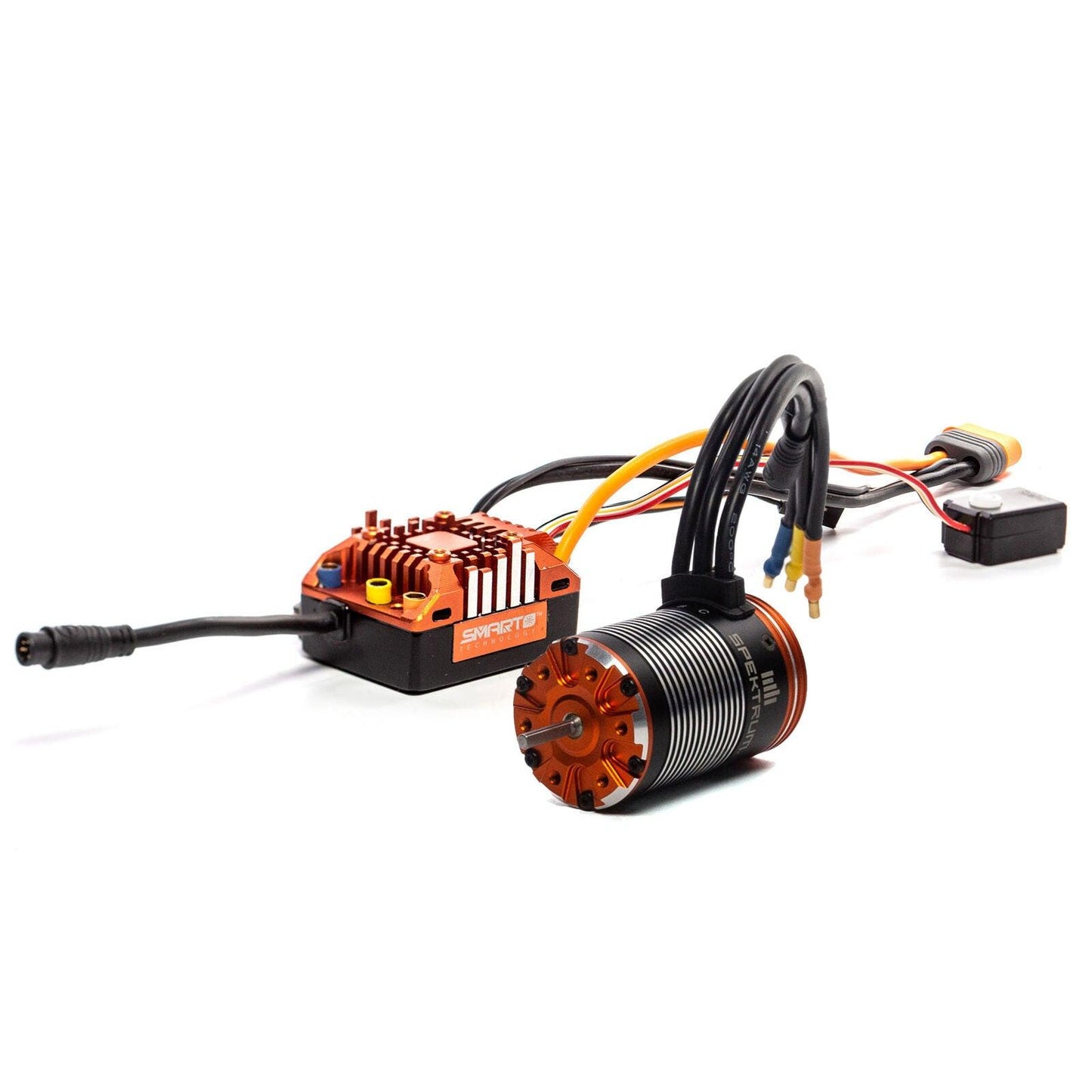

Spektrum Firma 60A Brushless Smart ESC / 2100Kv Sensored Motor Crawler Combo

Spektrum Firma 60A Brushless Smart ESC / 2100Kv Sensored Motor Crawler Combo

The Spektrum Firma Sensored Smart ESC System is specifically engineered to be used with 10th scale Crawlers and Scalers. Featuring advanced Smart connectivity, professional Drag Brake Performance and torque control, all while being fully waterproof.

The Spektrum Firma Sensored Smart ESC System is specifically engineered to be used with 10th scale Crawlers and Scalers. Featuring advanced Smart connectivity, professional Drag Brake Performance and torque control, all while being fully waterproof.
Features

Smart all-in-one telemetry
Pro-level Performance Sensored Motor and ESC
Fast, powerful 32-bit ARM M4 processor
Multiple options for easy programming:
Smart ESC Programming Box (V2 version required)
SmartLink USB Updating and Programmer application
Programming from Transmitter via Text Gen Telemetry
Multi-point protection:
Over-current protection
Automatic LiPo low-voltage cutoff
Thermal protection
Failsafe protection

Developed and designed by Spektrum™ engineers, in partnership with the industry's leading ESC manufacturer
Compact for easy installation in most applications
Ready to install — no soldering required
Waterproof System
Waterproof sensor wire with locking plug and gasket
Aluminum heat sink for high efficiency
Includes Optional Cooling fan
Adjustable high-power BEC (6V or 7.4V)
Firmware updatable through the Smart ESC Programming Box (V2 version required)
High heat-resistant IC™ connectors, backwards compatible with EC™ connectors
Limited 1-year warranty

Overview

The Spektrum Firma Sensored ESC System is a Combo that includes a Sensored 2100kv Motor and the Firma 60 Amp Sensored ESC, providing a perfect upgrade for 10th Scale Rock Crawlers and Scalers.

Like every component in the Spektrum™ Smart ecosystem, Firma™ Smart ESCs combine "plug-and-play" simplicity with the ability to communicate with other Smart electronics — together, creating the best-performing RC system for your vehicle imaginable.

Firma Smart ESCs do much more than regulate power. They function like a virtual engineer inside your model, providing a direct path to the vital operating data you need to reach peak performance. Firma Smart ESCs give you an extra layer of confidence that your electronics are all operating at their best.

With Firma Smart ESCs, you'll be better connected to your vehicle than ever before — without installing extra components that all work independently of each other. You won't need extra wires, modules, or links. A Firma electronic speed control provides a one-wire solution for obtaining telemetry data such as RPM, temperature, battery voltage and capacity.

Firma ESCs not only gather the data but also send it to your transmitter in real time, instead of only storing it for after-run study. You're able to adjust settings as needed to boost performance on the go. The Firma Smart single-wire telemetry solution has been tested for quality and performance by the best brands in RC. Their verdict? Smart technology is both simpler and superior!

Product Specifications
Auto Cutoff Yes
BEC Yes
BEC Continous Current 3A
BEC Type Switchable
BEC Voltage 6V/7.4V
Brakes Adjustable drag brake
Connector Type IC3
Forward Yes
Input Voltage 7.4 - 11.1V (2 - 3S LiPo), 7.2 - 10.8V (6 - 9S NiMH)
Low-Voltage Cutoff Programmable Yes
Maximum Burst Current 360A
Maximum Continuous Current 60A
Motor Design Inrunner
Motor Type Brushless - Sensored
Number of Poles 4
Product Weight 11.3oz (320g) ESC and motor combined
Programmable Yes
Reverse Yes
RPM/Volt (Kv) 2100Kv
Shaft Diameter 0.125" (3 mm)
Technology Smart
Water-Resistant Yes
